Porsche Diagrams 991 (911) MK1 2012-2016 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16 Wheels, Brakes Disc brake rear 911 UPTO 1968
Enter valid search criteria before proceeding with the request
➜
601-000
Wheels / tyres - WITHOUT Central wheel lock - 991.1 2012-16
601-001
Wheels / Tyres - Central locking PR:478 - 991.1 GTS 2012-16
601-005
Tyre pressure control system - 433 MHz (PR:482), 315-MHz (PR:483) - 991.1 2012-16
602-000
Disc brake / Front axle - Carrera 2, Carrera 2S, GTS - 991.1 2012-16
602-001
Disc brake / Front axle - Carrera 4, Carrera 4S, 4 GTS - 991.1 2012-16
603-000
Disc brake / Rear axle - Carrera 2, Carrera 2S, GTS - 991.1 2012-16
603-001
Disc brake / Rear axle - Carrera 4, Carrera 4S, 4 GTS - 991.1 2012-16
603-005
Parking brake 991.1 2012-16
604-000
Brake master cylinder / Brake servo 991.1 2012-16
604-005
Brake lines / Front end 991.1 2012-16
604-010
Brake lines / Underbody - Center, Rear - 991.1 2012-16
604-015
Vacuum line / Brake servo - front center rear - 991.1 2012-16
605-000
Hydraulic unit / anti-locking brake syst. -abs- 991.1 2012-16
➜

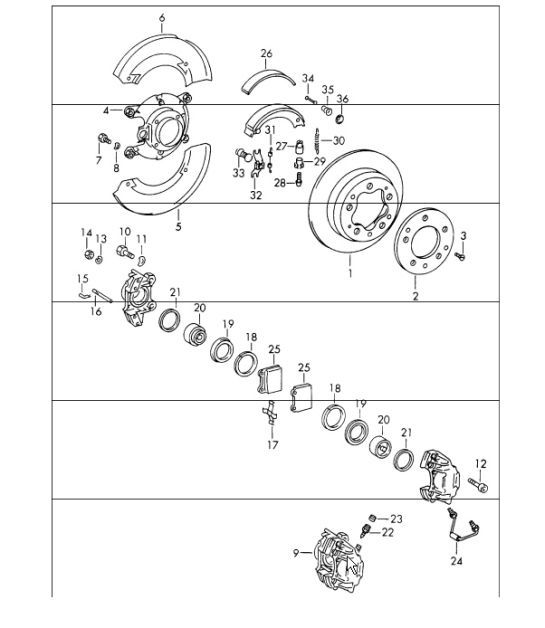

Disc brake rear 911 UPTO 1968 - PORSCHE
Click the image numbers to view product info
SKU: 90135240110, brake disc,SKU: 90135204115, brake disc vented SKU: 90135241300, spacer ring as of model a SKU: 90001302402, countersunk-head screw am 6 x 10 up to model a,SKU: 90001303302, countersunk-head screw am 6 x 20 as of model a SKU: 90135208111, brake mounting plate SKU: 90135280116, protective plate SKU: 90135280216, protective plate SKU: N0102353, hexagon-head bolt m 8 x 10 SKU: N0122411, spring washer b 8 SKU: 90135296511, fixed calliper left without pad,SKU: 90135296532, fixed calliper left without pad,SKU: 90135296611, fixed calliper right without pad,SKU: 90135296632, fixed calliper right without pad,SKU: 90135281700, intermediate plate for calliper carrier and fixed calliper,SKU: 90135296910, intermediate plate for fixed calliper SKU: 90007509001, hexagon-head bolt m 10 x 25,SKU: 90007511108, hexagon-head bolt m 10 x 28 SKU: N0122301, spring washer b 10 SKU: N0447032, screw m 6 x 45,SKU: 90006706901, pan-head screw m 6 x 50,SKU: 90135297810, pan-head screw SKU: 90002701302, lock ring b 6 SKU: 90007602301, hexagon nut m 6,SKU: 90135297910, hexagon nut SKU: 90135195510, safety seal SKU: 90135293811, retaining pin,SKU: 90135293814, retaining pin SKU: 90135293610, expanding spring,SKU: 90135293611, expanding spring SKU: 69535162990, clamping ring,SKU: 90135262910, clamping ring SKU: 69535162990, clamping ring,SKU: 90135262910, clamping ring SKU: 90135293710, protection cap,SKU: 90135293711, protection cap SKU: 90135293710, protection cap,SKU: 90135293711, protection cap SKU: 90135209910, piston $ 35,SKU: 90135209911, piston $ 38 SKU: 90135209910, piston $ 35,SKU: 90135209911, piston $ 38 SKU: 90135290811, gasket,SKU: 90135290812, gasket SKU: 90135290811, gasket,SKU: 90135290812, gasket SKU: 69535164190, ventilation valve SKU: 90135192712, dust boot SKU: 90135293910, connecting line,SKU: 90135293910, brake line SKU: 91135293901, brake pad repair set without mounting parts SKU: 91135293901, brake pad repair set without mounting parts SKU: 90135290614, brake pad SKU: 91135294400, support bush SKU: 90135294310, adjusting screw SKU: 91135209802, adjusting screw SKU: 90135293210, return spring SKU: 90135295410, return spring SKU: 91135209001, expanding bow SKU: 90135295311, compression spring SKU: 90135295911, roll pin SKU: 90135295710, compression spring SKU: 90135295510, concave washer
+
−
↺
603-00
