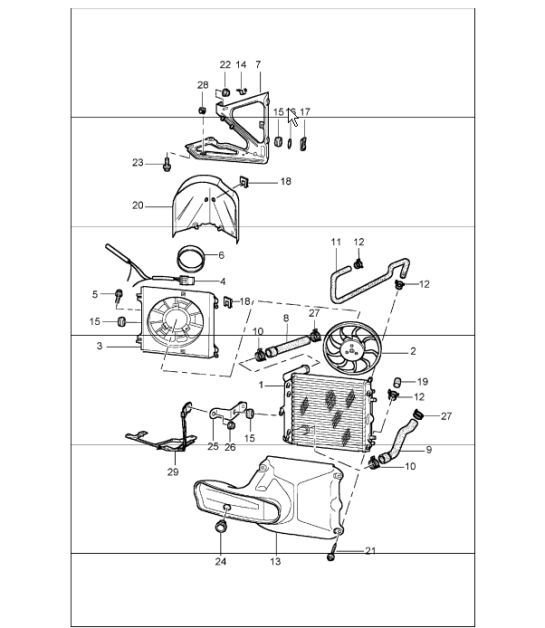

water cooling - 3 - for 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05 - PORSCHE
Click the image numbers to view product info
SKU: 99610613181, radiator,SKU: 99610613174, radiator,SKU: 99610613251, radiator,SKU: 99610613272, radiator
SKU: 99662413500, fan,SKU: 99662412700, fan
SKU: 99662413100, air box,SKU: 99662413700, air box
SKU: 99661610100, series resistor,SKU: 99662414100, series resistor
SKU: 90014611609, screw m 5 x 16
SKU: 99662413600, protection cap
SKU: 99650417509, bracket,SKU: 99650415500, bracket,SKU: 99650417609, bracket,SKU: 99650415600, bracket
SKU: 99610662158, hose supply,SKU: 99610662179, water hose supply,SKU: 99610666558, hose supply with one conection radiator centre,SKU: 99610662255, hose supply
SKU: 99610662558, hose return line,SKU: 99610662579, hose return line,SKU: 99610662654, hose return line,SKU: 99610662678, water hose return line,SKU: 99610666656, hose return line with one conection radiator centre
SKU: 99951249900, hose clamp 32 - 50
SKU: 99951249900, hose clamp 32 - 50
SKU: 99610613753, breather hose,SKU: 99610613778, breather hose,SKU: 99610613853, breather hose,SKU: 99610613883, breather hose
SKU: 99951258509, hose clamp 15 x 12
SKU: 99951258509, hose clamp 15 x 12
SKU: 99951258509, hose clamp 15 x 12
SKU: 99657532100, air duct,SKU: 99657532103, air duct,SKU: 99657532102, air duct,SKU: 99657532200, air duct,SKU: 99657532203, air duct,SKU: 99657532202, air duct
SKU: 99965130501, cable holder
SKU: 99970221440, grommet 14 x 20,5 x 7,5
SKU: 99970221440, grommet 14 x 20,5 x 7,5
SKU: 99970221440, grommet 14 x 20,5 x 7,5
SKU: 99970221440, grommet 14 x 20,5 x 7,5,SKU: 99970319540, rubber sleeve 30,0 x 40,0
SKU: 99916608309, tab washer b 25
SKU: 99916607702, safety clip b 22
SKU: 99916607702, safety clip b 22
SKU: 99610633400, rubber cap
SKU: 99657534104, air duct,SKU: 99657534200, air duct,SKU: 99657535100, air duct,SKU: 99657535200, air duct,SKU: 99657535130, air duct,SKU: 99657535230, air duct
SKU: 99991913409, oval-head screw 6,0 x 16
SKU: 99908463001, hexagon nut m 8
SKU: 90037807401, hexagon-head bolt m 8 x 16
SKU: 99650472100GRV, support prime coated
SKU: N10609203, hexagon nut m 8
SKU: 99951255201, hose clamp 28 x 12
SKU: 99951255201, hose clamp 28 x 12
SKU: 99959162901, captive nut
SKU: 99650452301, support,SKU: 99650452401, support,SKU: 99662415700, air flap,SKU: 99662415800, air flap,SKU: 99662415900, air flap,SKU: 99662416000, air flap,SKU: 99662416100, air flap,SKU: 99662416200, air flap,SKU: 99662416300, air flap,SKU: 99662416400, air flap
+
−
↺
105-15
