Other diagrams
801-000
Car body 987C.2 Cayman 2009-12
801-002
Bungs 987C.2 Cayman 2009-12
801-005
Front end 987C.2 Cayman 2009-12
801-010
Front end / Individual parts 987C.2 Cayman 2009-12
801-020
Floor - Center - 987C.2 Cayman 2009-12
801-035
Rear end / Individual parts 987C.2 Cayman 2009-12
801-040
Wing 987C.2 Cayman 2009-12
801-045
Roof / Scuttle 987C.2 Cayman 2009-12
801-050
Side part 987C.2 Cayman 2009-12
801-070
Linings / Underbody 987C.2 Cayman 2009-12
801-075
Linings for / Wheel housing 987C.2 Cayman 2009-12
801-080
Ventilation / Engine compartment 987C.2 Cayman 2009-12
802-000
Front bumper 987C.2 Cayman 009-12
802-005
Rear bumper 987C.2 Cayman 2009-12
803-000
Front cover 987C.2 Cayman 2009-12
803-005
Rear cover 987C.2 Cayman 2009-12
803-007
Rear spoiler 987C.2 Cayman 2009-12
803-008
Rear spoiler / Aerokit (PR:XAM) 987C.2 Cayman 2009-12
804-000
Door shell / Installation parts / Door lock 987C.2 Cayman 2009-12
804-010
Door seal / Seal / windshield frame 987C.2 Cayman 2009-12
804-020
Door handle 987C.2 Cayman 2009-12
804-030
Window regulator 987C.2 Cayman 2009-12
805-000
Window glazing 987C.2 Cayman 2009-12
807-000
Luggage compartment - FRONT - 987C.2 Cayman 2009-12
807-001
Luggage compartment - REAR - 987C.2 Cayman 2009-12
807-002
Interior equipment / Flooring / Linings 987C.2 Cayman 2009-12
807-003
Trim / Sill 987C.2 Cayman 2009-12
807-005
Linings / Engine compartment 987C.2 Cayman 2009-12
807-008
Foof trim / Sun vizors / A-pillar / C-pillar 987C.2 Cayman 2009-12
807-010
Door panel / Accessories 987C.2 Cayman 2009-12
807-011
Door panel / Accessories (PR:779) 987C.2 Cayman R 2009-12
807-015
Body / Sound proofing 987C.2 Cayman 2009-12
807-020
Linings / Rear lid 987C.2 Cayman 2009-12
809-000
Instrument panel trim / Upper part with: Fasteners 987C.2 Cayman 2009-12
809-001
Instrument panel trim / Upper part with: Accessories 987C.2 Cayman 2009-12
809-003
Glove box / Cover and Trim (drivers side) 987C.2 Cayman 2009-12
809-004
Retaining frame / Dashboard 987C.2 Cayman 2009-12
809-010
Interior mirror / Exterior mirror 987C.2 Cayman 2009-12
809-015
Centre console - FRONT - 987C.2 Cayman 2009-12
809-020
Centre console - REAR - 987C.2 Cayman 2009-12
810-000
Inscriptions/Lettering / Decorative fittings / Stone guard film 987C.2 Cayman 2009-12
812-000
Three-point safety belt 987C.2 Cayman 2009-12
813-000
Heating system / Feed line / return line 987C.2 Cayman 2009-12
813-001
Heater / Air distributor 987C.2 Cayman 2009-12
813-002
Luggage compartment / Cooling (PR:575) 987C.2 Cayman 2009-12
813-005
Air conditioner / Individual parts 987C.2 Cayman 2009-12
813-010
Water drain pipe / Mount / Air conditioner 987C.2 Cayman 2009-12
813-015
Compressor 987C.2 Cayman 2009-12
813-020
Particulate filter / Cowl panel covering 987C.2 Cayman 2009-12
813-025
Refrigerant circuit 987C.2 Cayman 2009-12
813-045
Control switch 987C.2 Cayman 2009-12
817-000
Front seat / Standard seat / Comfort seat (complete) 987C.2 Cayman 2009-12
817-002
Foam part / Cover / Standard seat / Comfort seat (PR:369,370,437,438) 987C.2 Cayman 2009-12
817-004
Backrest shell / Standard seat / Comfort seat / Accessories 987C.2 Cayman 2009-12
817-006
Backrest frame / Standard seat / Comfort seat (PR:369,370,437,438) 987C.2 Cayman 2009-12
817-008
Seat frame / Standard seat / Comfort seat 987C.2 Cayman 2009-12
817-009
Cushion carrier / Frame / Seat surface / Standard seat / Comfort seat 987C.2 Cayman 2009-12
817-010
Wiring looms / Switch / Control unit / Electric motor / Standard seat / Comfort seat (PR:369,370, 437,438) 987C.2 Cayman 2009-12
817-015
Front seat (complete) / Sports seat 987C.2 Cayman 2009-12
817-017
Foam part / Cover / Sports seat 987C.2 Cayman 2009-12
817-018
Heater / Front seat 987C.2 Cayman 2009-12
817-019
Backrest shell / Sports seat 987C.2 Cayman 2009-12
817-021
Backrest frame / Sports seat 987C.2 Cayman 2009-12
817-022
Lumbar support 987C.2 Cayman 2009-12
817-023
Seat frame / Sports seat 987C.2 Cayman 2009-12
817-024
Cushion carrier / Frame / Seat surface / Sports seat 987C.1 Cayman 2009-12
817-025
Wiring looms / Switch / Control unit / Electric motor / Sports seat 987C.2 Cayman 2009-12
817-030
Bucket seat / Collapsible (complete) 987C.2 Cayman 2009-12
817-032
Foam part / Cover / Seat and backrest surface / Bucket seat / Collapsible 987C.2 Cayman 2009-12
817-034
Bucket seat / Collapsible / Seat frame / Accessories 987C.2 Cayman 2009-12
817-036
Backrest shell bucket seat / Collapsible / Accessories 987C.2 Cayman 2009-12
898-000
Repair kits / Set of locks 987C.2 Cayman 2009-12

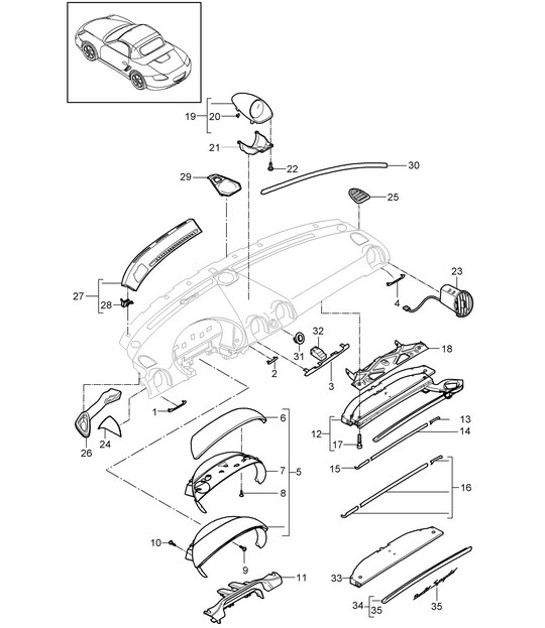

Instrument panel trim / Upper part / with: Accessories 987.2 Boxster / Boxster S 2009-12 - PORSCHE
Click the image numbers to view product info
809-001
