Porsche > Diagrams > Cayenne 9PA1 (957) 2007-2010 > Cayenne 3.6L 2007>> > Engine >

Crankcase housing / Bleeding (Model: 4820,4840, 4870,CXPA, CXRA,CXR, CWBA,CWB, CWCA,CWC) Panamera 970 (G1) 4.8L 2010-16
101-010
Replacement engine (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
101-015
Base engine (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
101-040
Crankcase housing / Individual parts (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
102-010
Crankshaft conrod (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
102-040
Piston / Piston rings (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
102-070
Belt tensioner / Belt drive (Model: 5501) Cayenne 9PA (957) 3.6L 2007-10
103-002
Cylinder head / Vacuum pump (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
103-006
Valve cover (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
103-008
Engine cover (Model: 4801,4851, 5501) Cayenne 9PA1 (957) 3.6L / 4.8L 2007-10
103-012
Camshaft (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
103-020
Valve control (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
104-005
Oil pump / Suction tube / Oil dipstick / Oil sump (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
104-015
Oil filter / Console / Oil cooler (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
105-005
Coolant pump / Thermostat housing (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
105-020
Water cooling (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
105-025
Water cooling / Radiator Cayenne 9PA1 (957) 2007-10
105-035
Coolant cooling system / Coolant expansion tank (PR:D5X) Cayenne 9PA1 (957) 3.6L 2007-10
105-045
Cooling air duct (PR:D5V,D5X) Cayenne 9PA1 (957) 4.8L / 3.6L 2007-10
106-010
Air cleaner system / Simple (PR:D5X) Cayenne 9PA1 (957) 3.6L 2007-10
107-002
Throttle valve adapter / Tank ventilation / Breather line / Crankcase housing (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
107-007
Fuel collection pipe / High-pressure injector / High pressure pump (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
107-015
Intake manifold (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10
109-010
Engine lifting tackle - LOWER - (Model: 5501) Cayenne 9PA1 (957) 3.6L 2007-10

Crankcase housing / Bleeding (Model: 4820,4840, 4870,CXPA, CXRA,CXR, CWBA,CWB, CWCA,CWC) Panamera 970 (G1) 4.8L 2010-16 - PORSCHE

Click the image numbers to view product info

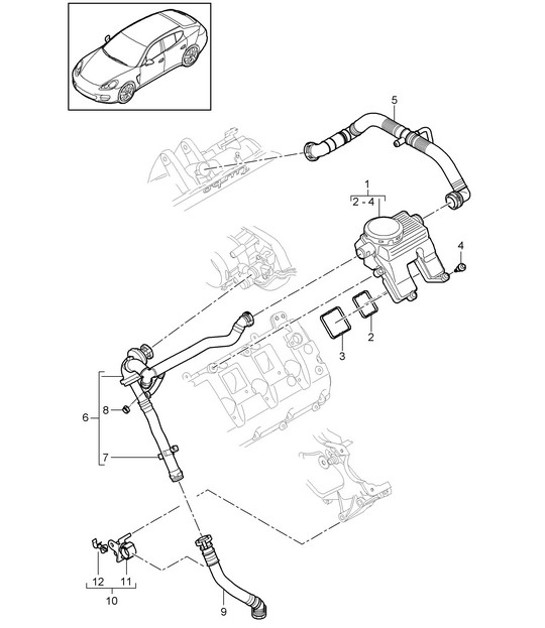

Diagram 107-015 Porsche Cayenne 3.6L 2007>> Engine SKU: 94810713522, oil separator SKU: 94810743720, seal SKU: 94810743820, seal SKU: 94810744302, securing element SKU: 94810724571, breather line,SKU: 94810724520, breather line SKU: 94810722975, non-return valve,SKU: 94810724720, breather line SKU: 99950780040, hose bracket m >> a 06165,SKU: 99950780040, hose bracket d >> - mj 2013 m a 06166 >>,SKU: 99950780040, hose bracket d - mj 2014>>,SKU: 99950719140, hose bracket d >> - mj 2013m b 02322 >>,SKU: 99950719140, hose bracket d - mj 2014>> SKU: 99951268800, hose clip m >> a 06165 SKU: 97011015772, breather line crankcase housing SKU: 94810702970, bracket breather line SKU: 99950737040, hose bracket SKU: 99950761140, hose bracket 107-015
