- Porsche 996 TURBO 2000-05
- Porsche 996 GT3 RS 2003-04

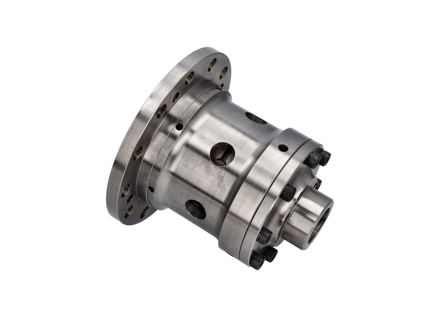

Enhance your Porsche 996 Turbo’s handling and performance with the 3J Driveline Plate-Type Limited Slip Differential (LSD), specifically designed for the Porsche 996 Turbo with Fine Spline 43T bolt-in shafts. Perfect for both daily driving and track use, this LSD delivers exceptional power transfer, improved handling, and reduced wear.
Customisable LSD Settings for Your Needs...
Select your LSD’s primary use from the drop-down menu, and we will fine-tune the unit to your exact specifications:
Fast Road: 55/90 Ramps, 25-35 Lbs/Ft (34-47 NM) Pre-load
Occasional Track Day: 45/90 Ramps, 25-35 Lbs/Ft (34-47 NM) Pre-load
Regular Track Day: 45/90 Ramps, 35-40 Lbs/Ft (47-54 NM) Pre-load
Long Circuit Race: 45/90 or 30/90 Ramps, 65-75 Lbs/Ft (88-102 NM) Pre-load
Short Oval Race: 45/90 Ramps, 50-55 Lbs/Ft (68-75 NM) Pre-load
Sprint/Hillclimb: 45/90 Ramps, 60-65 Lbs/Ft (81-88 NM) Pre-load
Rally: 35/90 Ramps, 65-80 Lbs/Ft (88-109 NM) Pre-load
Drift: 45/45 Ramps, 40-50 Lbs/Ft (64-68 NM) Pre-load
Other: For specific preload settings, please select this option, and provide your custom requirements in the comments box provided during the checkout process.
Upgrade to NXG Ultimate for Peak Performance...
For those seeking the highest level of performance, opt for our NXG Ultimate Upgrade by selecting "Yes, please" in the dropdown box below. This upgrade includes our Sintered Plate Pack, which reduces noise significantly and enhances both performance and service life.
Why Choose 3J Driveline’s NXG Performance LSD?
Proudly Engineered in the UK: Designed, manufactured, and assembled in the UK, ensuring precision and quality.
Strong & Progressive Design: Our NXG Plate-Type LSD features a robust bevel and planet gear pack with a large, strong tooth profile. This results in a smooth mesh and nearly eliminates the rattling and excessive backlash that often plagues other plate-type LSDs.
Maximum Contact Area: The plate pack operates with a minimum of 8 active surfaces, even at lighter pre-load settings, to provide maximum surface-to-surface contact for optimum performance.
Each differential is carefully assembled by our in-house experts, and we offer full customization options to suit your specific requirements.
Fitment & Installation...
While our LSD is designed as a direct replacement for the original part, we recommend checking for correct fitment before purchasing. Due to variations in original manufacturing tolerances, some modifications to the original casing or housing may be necessary during installation.
Upgrade your Porsche 996 Turbo with a 3J Driveline LSD and experience the ultimate in performance and precision!
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3J996
The product you are viewing cross references to these numbers
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
Fits:
Porsche 997 6-Speed Manual Transmision
● Innovative:
Patented Wavetrac® design automatically improves grip in low traction conditions. This feature is truly innovative and unlike any other torque biasing diff design.
● Superior Materials:
9310 steel gears run in case-hardened billet or forged steel bodies. ARP® fasteners used throughout.
● Maintenance Free:
As supplied new, the Wavetrac® differential will perform a lifetime of service without maintenance or rebuilds.
● Customizable:
If desired, you can alter the diff's behavior to suit your needs using optional components.
● Limited LIFETIME Warranty:
All Wavetrac® differentials include a transferable, Limited Lifetime Warranty.
For More information Click Here
Please note: This is a special order part and usually takes between 2-6 weeks to come into stock.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
40309180WK
The product you are viewing cross references to these numbers
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
Fits:
Porsche 997 C2
Porsche 997 C4
For Technical Specifications Click Here
Quaife ATB Helical LSD differential for Porsche 997 is suitable for Porsche 997 models. A direct replacement for the standard Porsche differential, the Quaife ATB Helical LSD differential transforms your car's performance. Unlike a conventional plate-style limited slip differential, the Porsche 997 Quaife ATB Helical LSD differential relies on gears rather than clutch plates for its operation. That means it is much smoother in operation. The Porsche 997 Quaife ATB Helical LSD differential never locks harshly with a set pre-load of wheel slip across the driven axle, like a conventional LSD. Rather, the Porsche 997 Quaife ATB Helical LSD differential automatically biases the torque away from the spinning wheel across the axle, to a constantly varying degree, and never locks. The Porsche 997 Quaife ATB Helical LSD differential has many benefits over a standard open differential, including maximising traction and minimizing wheel spin, eliminating torque steer and snatching in front wheel drive cars compared to conventional LSD units, and a maintenance-free design which retains the standard oil lubrication. The Porsche 997 Quaife ATB Helical LSD differential is proven in circuit and drag racing, rallying and road use, and is produced from Corus steel billets, and is CAD designed and CNC machined, then inspected to ISO 9001 standards. With over 250 applications, the Quaife ATB Helical LSD differential is second to none. Accept no imitations! Quaife ATB Helical LSD differentials are used by Ford, General Motors and Daimler-Chrysler as original equipment. The Quaife ATB Helical LSD differential for Porsche 997 is also now subject to a lifetime warranty (subject to terms and conditions). Please confirm your application using the attached technical drawing.
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
Fits:
Porsche 997.1 C2 / C4 2005-08 (G97.01 / G97.31)
Porsche 997.2 C2 / C4 2009-12 (G97.05 / G97.35)
Click 'Zoom in' for large parts diagram.
Diagram ref no 7
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99733227601
The product you are viewing cross references to these numbers
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
6 speed manual - 2 per car
Fits:
Porsche 997.1 Carrera 2 / 2S
Porsche 997.1 Carrera 4 / 4S
Porsche 997.2 Carrera 2 / 2S
Porsche 997.1 Carrera 4 / 4S
Click 'Zoom in' for large parts diagram.
Diagram ref no. 2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99733224901
The product you are viewing cross references to these numbers
