Adjustable caster arms with anti-dive and anti-squat. Porsche 986 / 996 / 997 - 2180005
2180005
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Boxster 987 MKII 2.9L 2009-2012
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche Boxster 981 Spyder 3.8L 2016
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII GT3 2010-11
- Porsche 997 MKII Turbo 2010-13
- Porsche 997 MKII GT2 RS 2011-13
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
Information

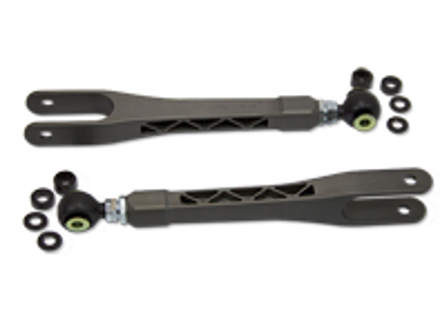

Adjustable caster arms with anti-dive and anti-squat.
Fits
Porsche 986 Boxster - Front Only
Porsche 987 Boxster and Cayman - Front Only
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Set of 2 x Adjustable caster arms - 1 pair, required per axle
Elephant Racing caster arms provide adjustable caster and anti-dive ability when used on the front, and adjustable wheel base, weight distribution, and anti-squat when used on the rear.
Front Suspension
Threaded double-adjuster makes it easy to extend or shorten the arm.
This makes for easy caster adjustment – an important adjustment the factory left out. A must-have for cars with GT3 style extendable style lower control arms to correct for un-intended caster increase that is caused by the extended LCAs.
Anti-dive behavior can also be adjusted. Lowering the front of the arm using the provided spacers reduces front dive under braking. Adjustable in 2mm increments.
Rear Suspension
Adjustable Caster Arms can reduce rear overhang and rear weight bias. A must-have for cars with GT3 style extendable style lower control arms. Adjust the length of the caster arms to correct the position of the rear wheels that have been drawn forward by aggressive camber settings. Even over-compensate for less rear weight bias than stock.
With the heavy mass of the engine cantilevered behind the rear axle, even small changes in wheel base make significant changes in weight distribution. Shortening the overhang reduces the famous 911 "pendulum" effect in corners.
Anti-squat behavior can also be adjusted. Raising the front of the caster arm using the provided spacers reduces rear squat under acceleration. Adjustable in 2mm increments.
Fully weather sealed> – Proper boots at the heim joint keep water and contaminant out for extended life.
If not using Adjustable Lower Control Arms
1999-2012 996, Boxster, Cayman, & GT3 Front: Bolt on if replacing the lower control arm central bushing with 2290022 / 2290014 rubber bushings, or our 2180011 camber adjusters.
1999-2012 996, 997 & GT3 Rear: Straight bolt on.
2006-2018 997, Boxster, Cayman, & 991 Front: Requires fitment of our part number 2290022 or 2290014 LCA central bushings or 2180011 solid caster bushing kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2180005
The product you are viewing cross references to these numbers
Fits
Porsche 986 Boxster - Front Only
Porsche 987 Boxster and Cayman - Front Only
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Set of 2 x Adjustable caster arms - 1 pair, required per axle
Elephant Racing caster arms provide adjustable caster and anti-dive ability when used on the front, and adjustable wheel base, weight distribution, and anti-squat when used on the rear.
Front Suspension
Threaded double-adjuster makes it easy to extend or shorten the arm.
This makes for easy caster adjustment – an important adjustment the factory left out. A must-have for cars with GT3 style extendable style lower control arms to correct for un-intended caster increase that is caused by the extended LCAs.
Anti-dive behavior can also be adjusted. Lowering the front of the arm using the provided spacers reduces front dive under braking. Adjustable in 2mm increments.
Rear Suspension
Adjustable Caster Arms can reduce rear overhang and rear weight bias. A must-have for cars with GT3 style extendable style lower control arms. Adjust the length of the caster arms to correct the position of the rear wheels that have been drawn forward by aggressive camber settings. Even over-compensate for less rear weight bias than stock.
With the heavy mass of the engine cantilevered behind the rear axle, even small changes in wheel base make significant changes in weight distribution. Shortening the overhang reduces the famous 911 "pendulum" effect in corners.
Anti-squat behavior can also be adjusted. Raising the front of the caster arm using the provided spacers reduces rear squat under acceleration. Adjustable in 2mm increments.
Fully weather sealed> – Proper boots at the heim joint keep water and contaminant out for extended life.
If not using Adjustable Lower Control Arms
1999-2012 996, Boxster, Cayman, & GT3 Front: Bolt on if replacing the lower control arm central bushing with 2290022 / 2290014 rubber bushings, or our 2180011 camber adjusters.
1999-2012 996, 997 & GT3 Rear: Straight bolt on.
2006-2018 997, Boxster, Cayman, & 991 Front: Requires fitment of our part number 2290022 or 2290014 LCA central bushings or 2180011 solid caster bushing kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2180005
2180005
99634104306
99733104302
99734104300
99734104301
99634114303
The product you are viewing cross references to these numbers
Price: €800.40
In stock
