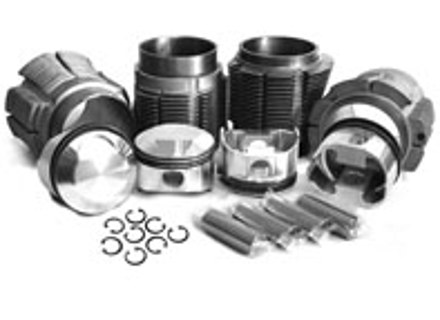

Big bore biral cylinder and JE forged piston kit "High Comp" 83.5mm. Porsche 356C / 912 - 0081183PJE
0081183PJE
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 356C 1963-65
Information
This is a new set 83.5mm Porsche 356/912 JE High Compression pistons with Biral cylinders.
It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This is a High Compression kit 11.5:1 more commonly used in race-cars . This kit requires no machine work, when installing in factory Porsche case & heads.
Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 11.5:1
Piston Angle: 30°
Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
0081183PJE
The product you are viewing cross references to these numbers
It fits Porsche 356; C, SC, 1963-66 & Porsche 912; 1965 and Up with the 3 piece case. The Cylinders are Biral with JE Forged pistons with 30° Angle.
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pocket, Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better. This is a High Compression kit 11.5:1 more commonly used in race-cars . This kit requires no machine work, when installing in factory Porsche case & heads.
Engine size: 1600cc
Stroke: 74mm
Cylinders: Biral.
Pistons: JE 2618 Forged
Dome Height: .295
Compression: 11.5:1
Piston Angle: 30°
Kit includes: 4 Cylinders, 4 Pistons, A set of Piston Rings, and 4 wrist pins and clips.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
0081183PJE
008 11 83P JE
0081183PJE
The product you are viewing cross references to these numbers
€1,643.24
Now €1,396.75
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Cast Iron cylinder repair liners. Porsche 997 3.8L C2S / C4S
Code: L3420
Vehicle Group
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
Information
Cast Iron cylinder liners Porsche 997 3.8L C2S / C4S
3.8L, 99.00mm Bore, flanged liner (No cutouts).
Fits:
Porsche 997 3.8L Price is Each
Inside Diameter 99.00mm / 3.898inch
Outside Diameter 104.20mm / 4.103inch
Length 128.00mm / 4.992inch
Flange Diameter 107.40mm / 4.228inch
Flange Depth 5.00mm / 0.197inch
NEW Cast Iron cylinder liners suitable for repairing damaged Alusil bores in 997 engines.
These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these cast iron liners.
3.8L, 99.00mm Bore, flanged liner (No cutouts).
Fits:
Porsche 997 3.8L Price is Each
Inside Diameter 99.00mm / 3.898inch
Outside Diameter 104.20mm / 4.103inch
Length 128.00mm / 4.992inch
Flange Diameter 107.40mm / 4.228inch
Flange Depth 5.00mm / 0.197inch
NEW Cast Iron cylinder liners suitable for repairing damaged Alusil bores in 997 engines.
These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these cast iron liners.
€68.66
Now €65.23
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Ductile Iron cylinder liners Porsche 997 3.8L C2S / C4S
Code: L3544/48
Vehicle Group
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
Information
Ductile Iron cylinder liners Porsche 997 3.8L C2S / C4S.
Engine 3.8L, 99.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined).
Fits:
Porsche 997 3.8L Price SET OF 6
Inside Diameter 99.00mm / 3.898inch
NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 997 engines.
These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.
These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.
Engine 3.8L, 99.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined).
Fits:
Porsche 997 3.8L Price SET OF 6
Inside Diameter 99.00mm / 3.898inch
NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 997 engines.
These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.
These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.
€917.22
Now €871.36
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Wet type cylinder liner Porsche 997 3.8L C2S / C4S
Code: L5713
Vehicle Group
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
Information
Wet type cylinder liner, semi finished in the bore for final finishing to 99.00mm.
Cut outs and circlip insertion tool holes need to be machined after fitting. Ductile Iron Material.
Fits:
Porsche 997 3.8L Price is Each
Inside Diameter 99.00mm / 3.898inch
Outside Diameter 104.20mm / 4.102inch
Length 128.00mm / 5.040inch
Flange Diameter 113.50mm / 4.469inch
Flange Depth 46.00mm / 1.811inch
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can't be used with these cast iron liners.
Cut outs and circlip insertion tool holes need to be machined after fitting. Ductile Iron Material.
Fits:
Porsche 997 3.8L Price is Each
Inside Diameter 99.00mm / 3.898inch
Outside Diameter 104.20mm / 4.102inch
Length 128.00mm / 5.040inch
Flange Diameter 113.50mm / 4.469inch
Flange Depth 46.00mm / 1.811inch
The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can't be used with these cast iron liners.
€182.63
Now €173.50
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
