Brake caliper adaptor brackets front upgrade to 350MM disc. Porsche 996TT / 996 C4S - 3604109601
3604109601
Vehicle Group
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
Information
Brake caliper adaptor brackets (PAIR) front upgrade to 350MM disc.
Porsche 996 TT 2001-04 Front
Porsche 996 C4S 2001-04 Front
Fits With:
997 Turbo Front Disc Part No
99735140501 Front Left
99735140601 Front Right
The Porsche 996 Turbo and C4S model was designed and built with high performance braking in mind. However, this amazing platform has now become a popular vehicle for the track use. With track racing comes the needs for improved braking over what the stock 4piston 330mm brakes can handle. Brake engineering at the simplest is about how you can have clamping force over a large surface area and dissipate the heat to keep the brakes from fading.
What has Designtek engineered is a Plus 1 Bracket Kit which allows you to take the factory 4piston 330mm brakes and upgrade to the 350mm OEM rotors that are found on the Porsche 997 Turbo.

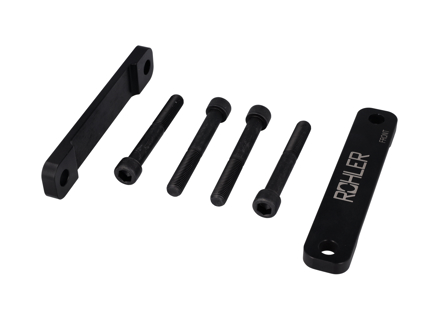

This bracket kit is essentially a spacer that goes between your caliper and the wheel carrier to allow your caliper to fit over the larger rotors. The larger rotors will give you increased surface area to provide you better braking and longer pad life. Our brackets are CNC machined 6061 aluminum to keep the weight down. Since this is an important safety component, we have had the brackets hard anodized.
Each Kit is sold as a pair of fronts or pair of rears. These kits fit all 2001-2005 Porsche 996 Turbo or C4S with standard non ceramic brakes.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604109601
The product you are viewing cross references to these numbers
Porsche 996 TT 2001-04 Front
Porsche 996 C4S 2001-04 Front
Fits With:
997 Turbo Front Disc Part No
99735140501 Front Left
99735140601 Front Right
The Porsche 996 Turbo and C4S model was designed and built with high performance braking in mind. However, this amazing platform has now become a popular vehicle for the track use. With track racing comes the needs for improved braking over what the stock 4piston 330mm brakes can handle. Brake engineering at the simplest is about how you can have clamping force over a large surface area and dissipate the heat to keep the brakes from fading.
What has Designtek engineered is a Plus 1 Bracket Kit which allows you to take the factory 4piston 330mm brakes and upgrade to the 350mm OEM rotors that are found on the Porsche 997 Turbo.
This bracket kit is essentially a spacer that goes between your caliper and the wheel carrier to allow your caliper to fit over the larger rotors. The larger rotors will give you increased surface area to provide you better braking and longer pad life. Our brackets are CNC machined 6061 aluminum to keep the weight down. Since this is an important safety component, we have had the brackets hard anodized.
Each Kit is sold as a pair of fronts or pair of rears. These kits fit all 2001-2005 Porsche 996 Turbo or C4S with standard non ceramic brakes.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604109601
3604109601
The product you are viewing cross references to these numbers
Price: €114.84
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Boxster 987 MKII 2.9L 2009-2012
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Information
Same as "Big Red" 993 Turbo brakes, these brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications
SET OF 2
Porsche multiple applications
Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast
Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers
Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604209301
The product you are viewing cross references to these numbers
SET OF 2
Porsche multiple applications
Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast
Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers
Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3604209301
99335142510
99335142610
1661900310
640-C100
The product you are viewing cross references to these numbers
Price: €462.84
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
Information
These brackets are used to fit Rear 996 C2 brake calipers to the rear of a Porsche 964 / 944 / 968 models.
Set of 2 brackets
Porsche 964
6082-T6 Aluminum, Helicoil inserts
Set of 2 brackets
Porsche 964
Porsche 944 S2 / Turbo ’87
Porsche 968
6082-T6 Aluminum, Helicoil inserts
Price: €174.00
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
Information
Rennline Brake Caliper Adapter Kit for Boxster/993/993TT Calipers. FRONT
SET OF 2
Fits:
Porsche 964 1989-94
Porsche 944 S2
Porsche 968 1992-95
For 964/944's with medium S4 calipers: Use 304x32mm rotors Porsche part number 92835104360 / 92835104460
For 964/944's with 993TT (Big Red Calipers): Use 322x32mm rotors Porsche part number 96535104500 / 96535104600
Note: Pictures may not show actual product. The adaptor is intended for off road use only.
SET OF 2
Fits:
Porsche 964 1989-94
Porsche 944 S2
Porsche 968 1992-95
For 964/944's with medium S4 calipers: Use 304x32mm rotors Porsche part number 92835104360 / 92835104460
For 964/944's with 993TT (Big Red Calipers): Use 322x32mm rotors Porsche part number 96535104500 / 96535104600
Note: Pictures may not show actual product. The adaptor is intended for off road use only.
Price: €509.24
