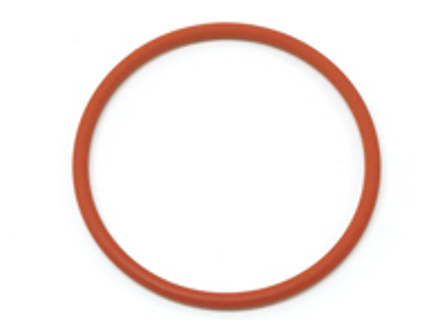

The Porsche Camshaft Oil Seal – OE Match (Part Number: 99970146840/1) is a replacement sealing component designed to prevent engine oil leakage around the camshaft housing assembly on selected classic Porsche 911, 930 Turbo and 964 Turbo models.
Fits:- Porsche 911 1974-89
- Porsche 930 Turbo 1975-89
- Porsche 964 Turbo 3.3L 1991-92
Diagram Ref No 30
Measuring 67.5 x 75.4 x 4mm, this precision-sized O-ring seal provides an effective oil-tight barrier between mating engine components, helping maintain proper engine lubrication and preventing unwanted oil seepage.
Designed to match the original Porsche component's dimensions and fitment, this OE Match replacement offers a cost-effective alternative to a Genuine Porsche-branded seal.
Over time, original camshaft seals can become hardened, flattened, brittle or damaged due to continuous exposure to engine heat, oil and ageing. This deterioration can compromise the sealing surface, allowing oil to escape from the camshaft housing area.
Ideal for routine engine maintenance, camshaft housing repairs, gasket replacement or classic Porsche engine restoration, this OE Match seal helps restore reliable sealing and maintain engine cleanliness.
What This Product Does:
The camshaft oil seal is an important component of the engine's lubrication sealing system. It forms a secure seal around the camshaft flange or associated housing interface, preventing engine oil from escaping through the joint between mating components.
While the camshaft operates within the engine, oil is circulated to lubricate moving parts, reducing friction and protecting components against premature wear. The camshaft oil seal helps contain this oil within the intended lubrication areas.
Its main functions include:
- Preventing engine oil leaks: Creates a reliable sealing barrier around the camshaft housing or flange assembly.
- Maintaining oil containment: Helps keep lubricating oil within the engine rather than allowing it to escape through housing joints.
- Protecting surrounding components: Reduces the risk of oil contamination on adjacent engine parts.
- Supporting engine lubrication: Helps preserve the integrity of the lubrication system by minimising external oil loss.
- Maintaining engine cleanliness: Prevents oil seepage that can attract dust, dirt and debris.
- Preserving original engine functionality: Maintains the sealing arrangement designed for classic Porsche engines.
Symptoms Of Wear Or Failure:
Camshaft oil seals are exposed to high temperatures, engine oil and repeated thermal expansion and contraction. Over time, the sealing material can lose elasticity, deteriorate or become compressed.
Common symptoms of a worn or failing camshaft oil seal include:
- Visible engine oil leaks: Oil may seep from the camshaft housing or flange area, leaving wet patches or oil residue around the engine.
- Oil stains beneath the vehicle: Oil escaping from the sealing area may travel down the engine casing and eventually drip onto the ground.
- Burning oil smell: Leaking oil may reach hot engine or exhaust components, producing a noticeable burning oil odour.
- Smoke from the engine area: Oil contacting hot exhaust components may generate smoke, particularly after the engine reaches operating temperature.
- Hardened or brittle sealing material: Age and heat exposure can cause the seal to lose flexibility, preventing it from maintaining an effective seal.
- Flattened or deformed seal: Continuous compression may cause the O-ring to lose its original profile and sealing capability.
- Increased oil consumption: External oil leakage may contribute to a gradual reduction in engine oil level.
- Oil and dirt accumulation: Oil seepage around the camshaft housing may attract dirt, resulting in greasy deposits.
Why Replacement Matters:
Replacing a deteriorated camshaft oil seal is essential for maintaining effective engine sealing, preventing oil leakage and protecting the long-term condition of the engine.
A damaged or hardened seal can allow engine oil to escape from the camshaft housing assembly. If left unresolved, continued leakage may lead to oil loss, contamination of surrounding components and increased maintenance requirements.
Oil leaking onto hot exhaust components can also produce unpleasant odours, smoke and potential safety concerns.
Installing a replacement OE Match camshaft oil seal helps to:
- Restore oil-tight sealing: Provide an effective barrier against oil leakage around the camshaft housing assembly.
- Prevent further oil loss: Reduce external oil seepage and help maintain correct engine oil levels.
- Protect engine components: Minimise oil contamination around nearby mechanical and electrical parts.
- Reduce burning oil smells: Help prevent leaking oil from reaching hot engine and exhaust surfaces.
- Maintain engine cleanliness: Eliminate oil seepage that can attract dirt and debris.
- Support long-term engine reliability: Preserve the integrity of the engine's lubrication sealing system.
- Assist with engine restoration: Restore the original sealing arrangement during rebuilding or maintenance.
- Provide a cost-effective repair: Offer an OE Match replacement alternative to the Genuine Porsche component.
Replacing the seal during camshaft housing servicing, engine gasket replacement or major engine maintenance is recommended whenever the original seal shows signs of wear, hardening or damage.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99970146840
The product you are viewing cross references to these numbers
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
Fits:
Porsche 924S 1986-88
Porsche 944 2.5L 1982-88
Gasket set includes:
95110437402 - Head gasket
92810419312 - Valve stem seal x8
92811119312 - Exhaust Manifold to head gasket x4
94411113501 - Down pipe gasket x2
94410519903 - Camshaft housing gasket
94411016305 - Intake manifold gasket x4
92810619704 - Thermostat housing gasket
94410431106 - Coolant inlet housing gasket
92810518400 - Camshaft housing o-ring
99970160240 - Camshaft seal ring
99911328240 - Shaft sealing ring
92810518902 - Camshaft housing rear cork gasket
94410532100 - Gasket
90012314030 - Cam housing screw plug sealing ring
99970146840 - Throttle housing seal
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94410090100
The product you are viewing cross references to these numbers
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
Fits:
Porsche 924S
Porsche 944 / 944S / 944T
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94410090103
The product you are viewing cross references to these numbers
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
Fits:
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
92810619704
