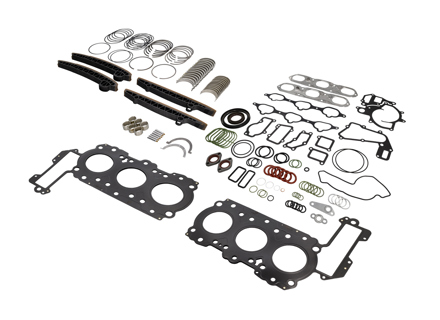

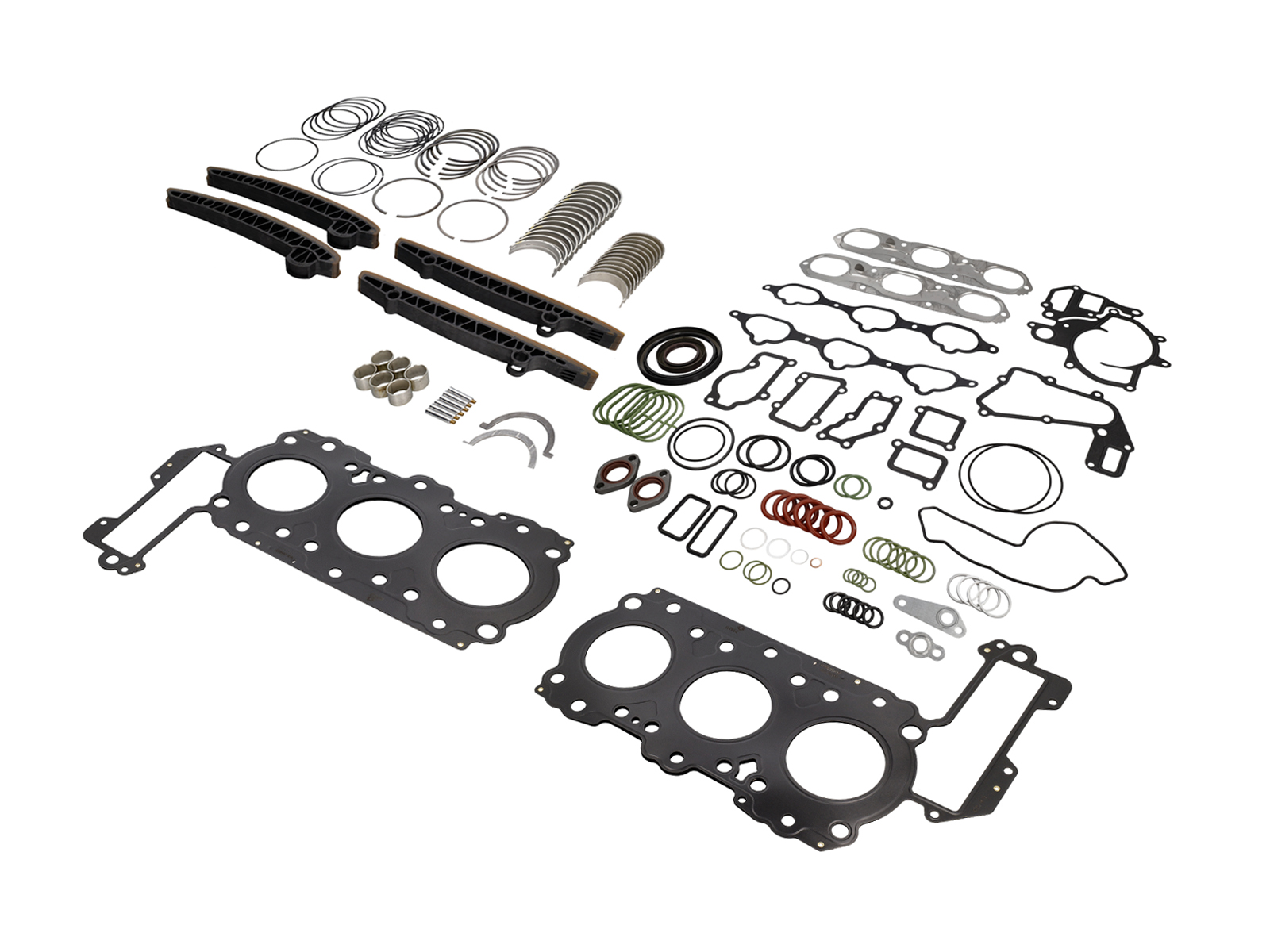

- Porsche Boxster 986 2.5L 1997-99
This is a basic overhaul engine rebuild kit to refresh the engine from leaks.
You may also need to replace some damaged components within the engine like the tensioners, timing chains, pistons or liners these can be purchased separately
Includes:

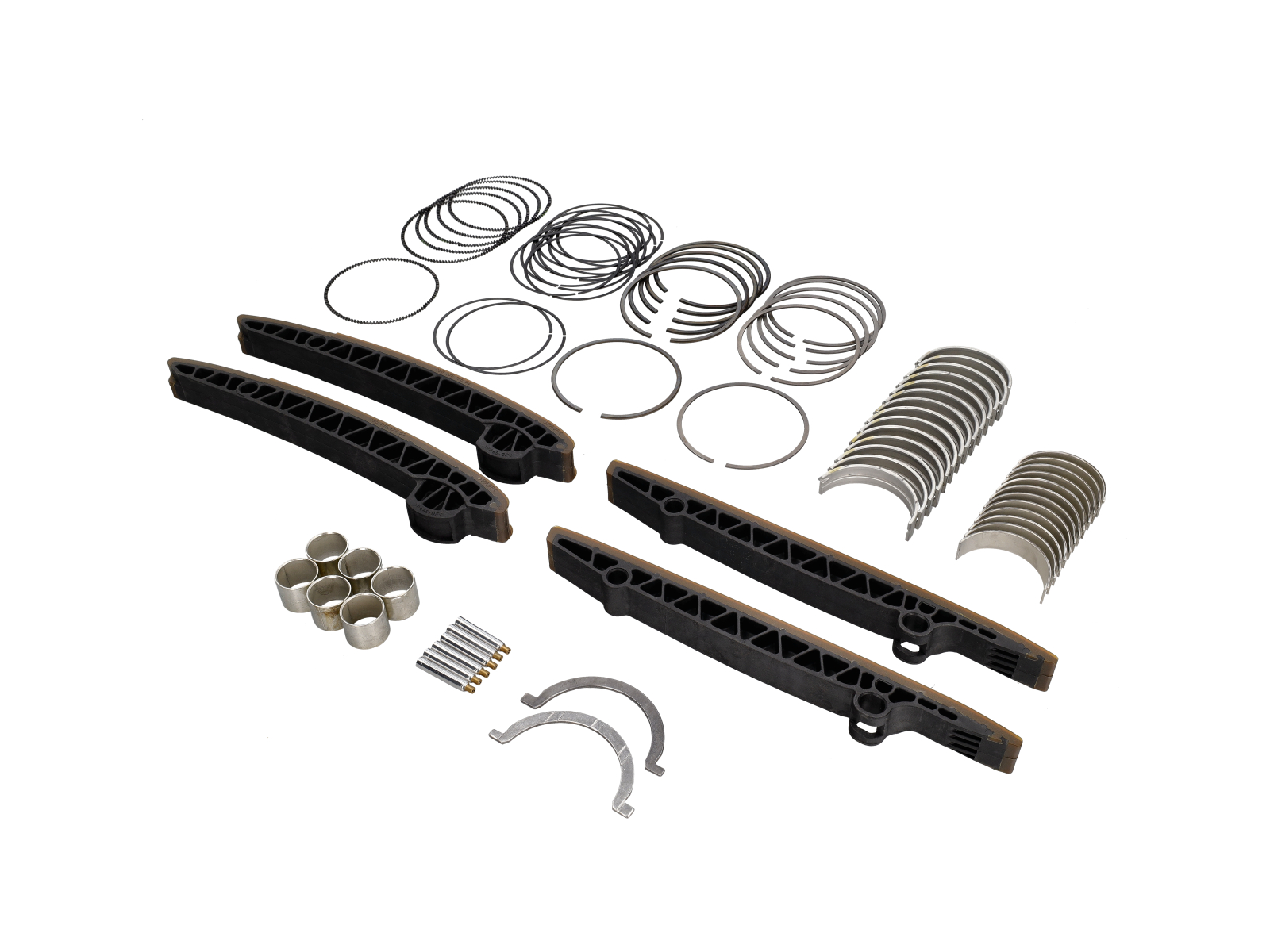

14 x MAIN BEARING 2.5L ENGINE M96.20
12 X CONNECTING ROD BEARING "BIG END SHELL"
6 X CONNECTING ROD BEARING "SMALL END SHELL"
2 X THRUST WASHER
6 X PISTON RING SET 986 2.5L M96.20

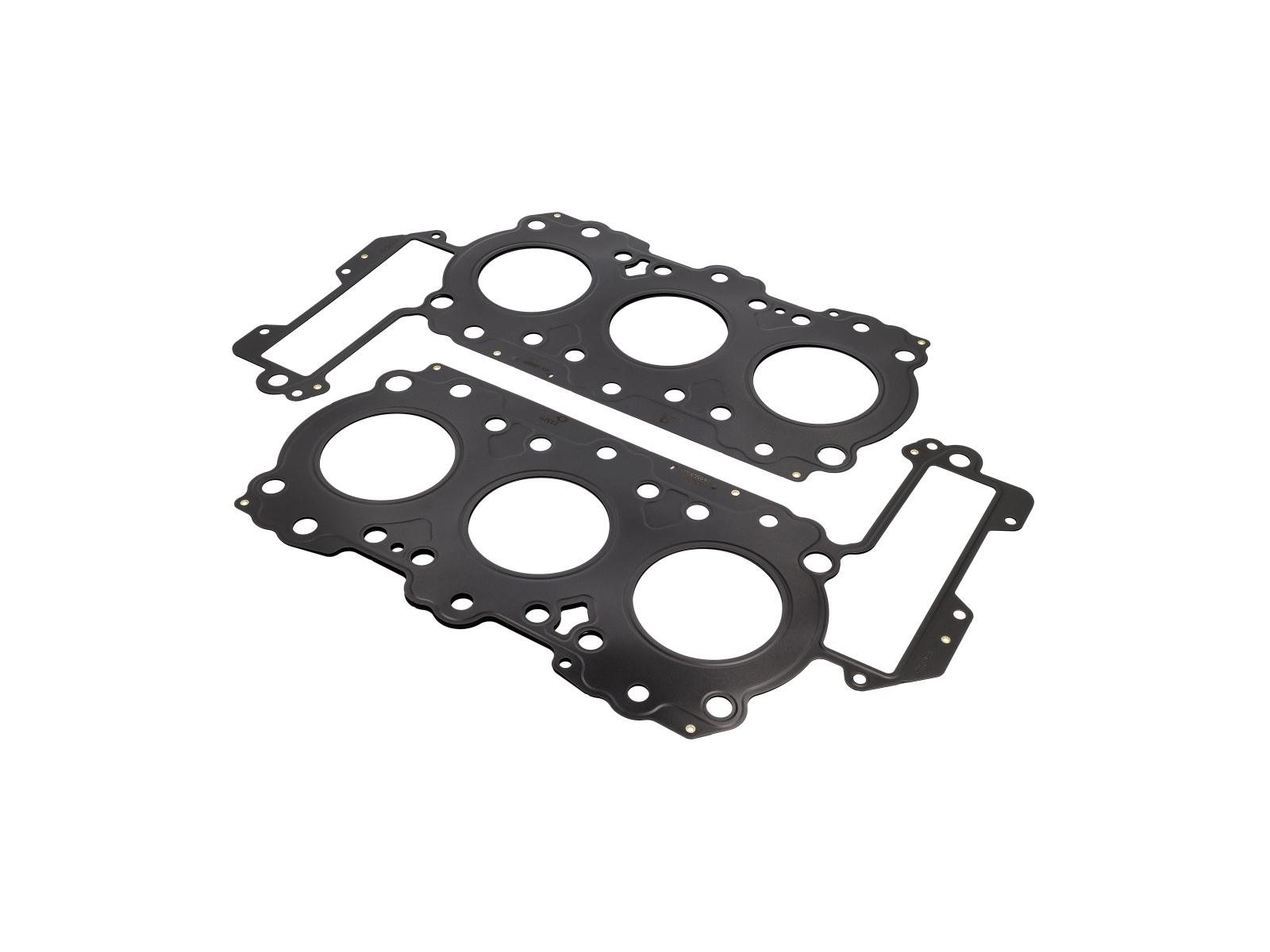

1 X HEAD GASKET - 1-3 CYL 2.5/2.7CC >2002 M96.20/22
1 X HEAD GASKET - 4-6 CYL 2.5/2.7CC >2002 M96.20/22

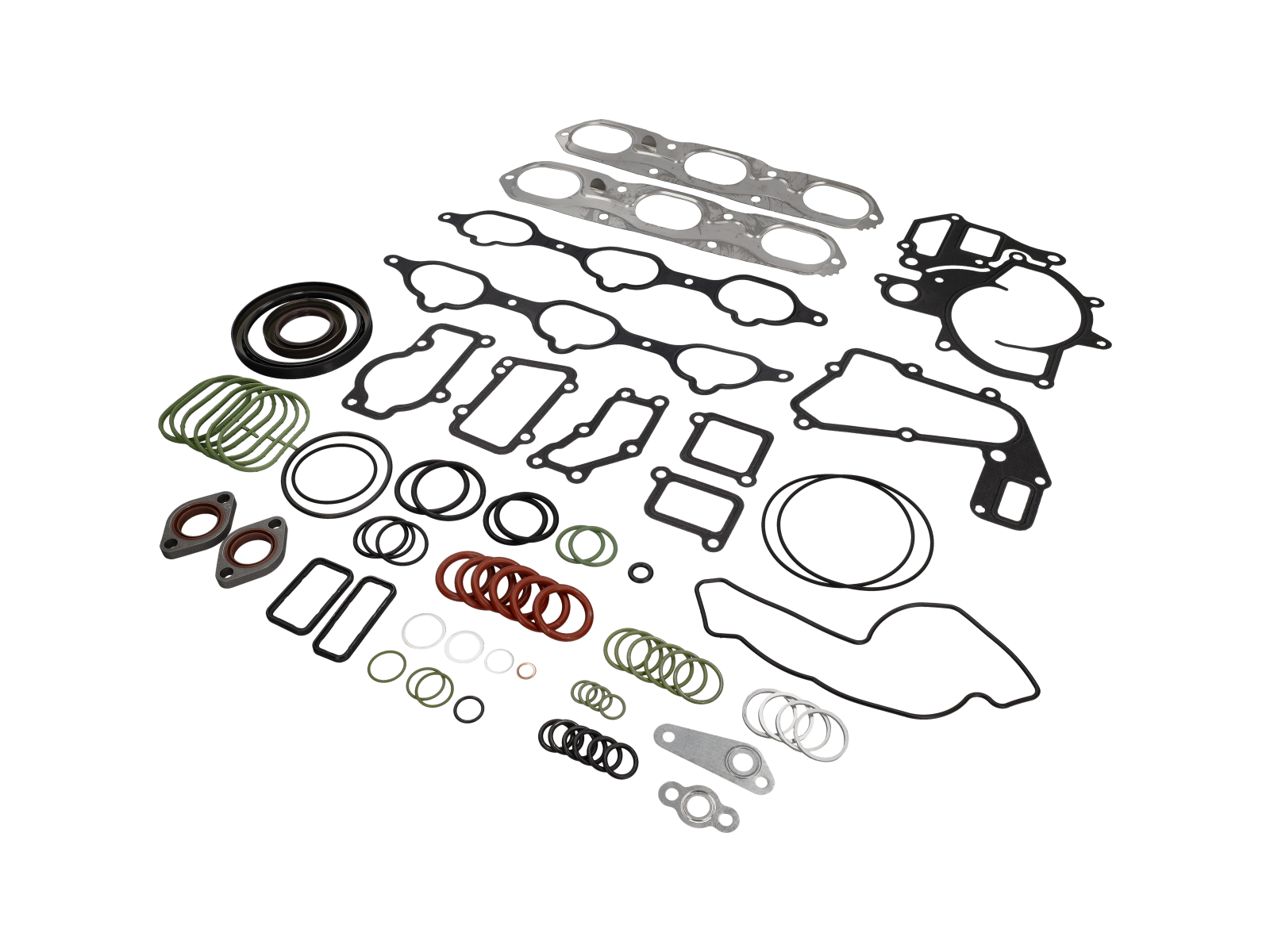

1 X ENGINE GASKET SET "VICTOR REINZ"
6 X SPLASH VALVE
2 X TIMING CHAIN GUIDE
2 X TENSIONER BLADE
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
ENGINEKIT04
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
