- Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
- Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
- Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
- Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
- Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo GT V8 4.0L (640Hp) 2021-23
Fits:
Porsche 9YA Cayenne 4.0ltr V8 turbo / turbo S - 2018 Onwards
Porsche 9YA Cayenne 4.0ltr V8 GTS - 2018 Onwards

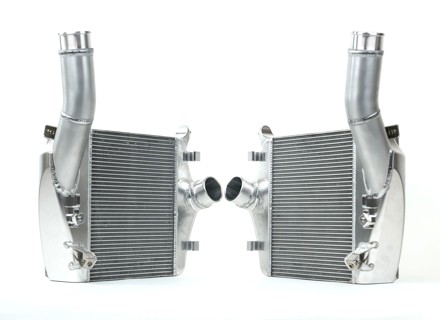

The Cayenne turbo / GTS 4.0ltr Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilising all factory mounting points, the installation is straightforward with a “drop-in fit” design. No cutting or modifications are required and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. It has been stated that the OEM O-Rings may be a factory design flaw as these can fail. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle. These O-Rings have been known to already started showing signs of failure with only a few thousand miles on the odometer.
As with CSF’s other products the new Cayenne turbo / GTS Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This is a very important upgrade compared to the OEM crimped plastic composite end tanks and this feature is not only aesthetically pleasing, but is also stronger offering longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.
- Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race ConditionsFormula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
- CNC Machined Billet End Tanks
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Made in the USA at PWR North America
- Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
- OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
- CSF’s Thermal Dispersion Cerakote available (CSF #8211)
- Raw Finish with no coating for the “show” look (CSF #8211R)
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- R&D and Performance Testing by Pacific German & VF Engineering
- 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
OEM Part Numbers:
PAB145803B / PAB145804B
PAB145803E / PAB145804D
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8211R
The product you are viewing cross references to these numbers
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
- Porsche 992.1 (911) Sport Classic 3.8L 2023
- Porsche 992.2 Carrera 2 3.0L 2024>>
- Porsche 992.2 Carrera 2 3.0L Cabriolet 2024>>
Fits:
Porsche 992.1 Turbo - 2020 to 2024
Porsche 992.1 Turbo S - 2020 to 2024
Porsche 992.1 Sport Classic - 2022 to 2024
Porsche 992.2 Carrera 2 - 2024 onwards
Porsche 992.2 Carrera 4 - 2024 onwards
(Porsche 992.2 - not for Hybrid models)
OEM ref
992.145.805.G
992.145.805.N
• Eliminates Heat Soak and Lowers Intake Air Temperatures (IATs) for Maximum Performance in Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment
• Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)
• CNC Machined Billet End Tanks With Integrated Machined Y-Pipe Connection to Throttle Body
• 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications
• OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components
• True Plug-and-Play "Drop-in Fit" Installation
• R&D and Performance Testing by Industry-Leading Porsche & McLaren Tuning Company, M Engineering
• Made in the USA at PWR North America
Cross reference numbers
992145805G
992145805N
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8188
The product you are viewing cross references to these numbers
- Porsche 992.1 Carrera 2 3.0L 2019-24
- Porsche 992.1 Carrera 4 3.0L 2019-24
- Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4 3.0L 2020-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
- Porsche 992.2 Carrera 2 3.0L 2024>>
- Porsche 992.2 Carrera 2 3.0L Cabriolet 2024>>
Porsche Throttle Body to Intercooler Seal
This throttle body to intercooler seal is a
critical component within the turbocharged intake system, providing an airtight
seal between the intercooler outlet and the throttle body. It ensures that
compressed air delivered from the intercooler enters the engine without
pressure loss.
Fits:
- Porsche 992.1 Carrera 2 3.0L 2019-24
- Porsche 992.1 Carrera 4 3.0L 2019-24
- Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4 3.0L 2020-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
- Porsche 992.2 Carrera 2 3.0L 2024>>
- Porsche 992.2 Carrera 2 3.0L Cabriolet 2024>>
Diagram ref no 19
In turbocharged Porsche engines, maintaining a fully sealed charge air system is essential for performance, efficiency and reliability. Even a small failure in a sealing component can result in boost leaks, reduced power and engine management issues.
What This Seal Does
The seal sits between the intercooler and the throttle body, creating a secure and airtight connection.
It helps:
• Maintain correct turbo boost pressure
• Prevent air leaks within the intake system
• Ensure efficient airflow into the engine
• Support proper combustion and engine performance
• Maintain consistent throttle response
A properly functioning seal is essential for the correct operation of the turbo system.
Why Throttle Body Seals Fail
Sealing components are exposed to heat, pressure and constant airflow, which can lead to degradation over time.
Common causes of failure include:
- Heat exposure - High temperatures from compressed air can harden or deform the seal.
- Pressure stress - Continuous boost pressure can wear sealing surfaces.
- Material ageing - Over time, rubber or sealing materials lose elasticity.
- Removal and refitting - Seals can become damaged or deformed during servicing.
Symptoms of a Failing Seal
• Loss of turbo boost pressure
• Reduced engine performance
• Hissing noise from intake area
• Engine warning lights related to boost or airflow
• Poor throttle response
• Increased fuel consumption
Replacing a worn seal restores system integrity and prevents further performance issues.
Why You May Need to Replace This Seal
- Prevent Boost Leaks - A new seal ensures airtight connections within the intake system.
- Restore Engine Performance - Maintains proper airflow and boost pressure for optimal power delivery.
- Essential During Intercooler or Throttle Body Service - Recommended to replace whenever components are removed.
- Low-Cost Preventative Maintenance - A small component that plays a big role in turbo system efficiency.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
992145865
The product you are viewing cross references to these numbers
