Ignition distributor TUNE+ Bluetooth. Porsche 911 2.4L–2.7L and 3.3L 6 cylinder engines - 123TB6RV911BIG
123TB6RV911BIG
Vehicle Group
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 356 1950-55
- Porsche 356A 1955-59
- Porsche 356B 1959-63
- Porsche 356C 1963-65
- Porsche 914 (1970-1976)
Information

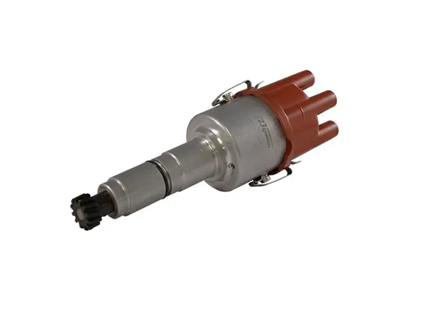

Ignition distributor TUNE+ Bluetooth
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.
This Bluetooth Electronic Ignition Distributor is designed for Porsche 911 2.4L – 2.7L and 3.3L 6 cylinder engines
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
Cylinders: 6
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes
Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current: fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Tune+-6-R-V-POR911-BIG = Tune+ stands for connection with Bluetooth
Tune+-6-R-V-POR911-BIG = 6 stands for the numbers of cylinders
Tune+-6-R-V-POR911-BIG = R stands for Straight distributor cap
Tune+-6-R-V-POR911-BIG = V stands for vacuum advance
Tune+-6-R-V-POR911-BIG = POR911-BIG stands for the 123ignition type
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123TB6RV911BIG
The product you are viewing cross references to these numbers
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.
This Bluetooth Electronic Ignition Distributor is designed for Porsche 911 2.4L – 2.7L and 3.3L 6 cylinder engines
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
Cylinders: 6
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes
Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current: fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Tune+-6-R-V-POR911-BIG = Tune+ stands for connection with Bluetooth
Tune+-6-R-V-POR911-BIG = 6 stands for the numbers of cylinders
Tune+-6-R-V-POR911-BIG = R stands for Straight distributor cap
Tune+-6-R-V-POR911-BIG = V stands for vacuum advance
Tune+-6-R-V-POR911-BIG = POR911-BIG stands for the 123ignition type
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123TB6RV911BIG
91160202101
91160202103
91160202104
91160202107
911602021CX
911602021XD
91160203106
911602031FX
The product you are viewing cross references to these numbers
Price: £479.00
In stock
Related products
Vehicle Group
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 912E 4CYL 1976
Information
Distributor and harness for Porsche 912E (4 Cylinder)
Fits:
Porsche 912E 2.0ltr 4 Cylinder - 1976
New Perma-Tune Gen 6 unit
Replacing that worn out distributor has never been easier with the Perma-Tune distributor for the 1.6ltr 4 Cylinder engine
Distributors wear out and rob your engine of the horsepower it was intended to produce. Worse yet, they can leave you stranded or even damage the crankshaft ring gear.
Forget about rebuilding an outdated distributor with hard to find parts when you can replace it with modern technology that looks original. There are no wires to cut and splice: the distributor has the electrical harness built in and features the original equipment compatible connectors for a plug and play installation.
Simply mount the ignition module to the relay panel where the later model cars had the module mounted and then plug the distributor harness connector into the Perma-Tune module. The power, ground, tachometer and coil connections are made at the existing coil wires. The harness has loop connections that allow joining the wires without having to cut and splice the car harness wires.
The Perma-Tune distributor harness is made using the same vinyl sleeve loom construction as the original wiring for that factory original look.
This Perma-Tune Porsche distributor is an exact fit replacement part that will drop right into the engine. Setting the static timing is easy with the built in trigger point LED that lets you know when the rotor is pointing in the right direction.
Idle timing is set in exactly the same way as the factory manual indicates and the factory mechanical and vacuum curves are preprogrammed into the distributor. The mechanical vacuum can is replaced with a reliable MAP sensor that is fully programmable to perform advance or retard vacuum functions.
It just doesn't get any easier than this.
This is where the fun starts
Street tune your car for maximum performance using your smart phone.
Download the free TUNE + app to your phone and connect it to the Perma-Tune distributor via Bluetooth.
Using the TUNE + app, you can read and store the ignition curves, modify them and share them with others. The app even has an ignition lock feature that prevents unauthorized use of the car. Do more than just a onetime engine tuning. Engine programs are so easy to create and load into the car that you can make your own library of programs for different uses.
For instance, you could create a de-tuned engine program for a novice driver, a super tune program for yourself or a valet tune program for the parking attendant. Get the most from engine upgrades like headers, intake, and many other engine modifications by creating custom ignition maps.
The possibilities are endless.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
92360202100
The product you are viewing cross references to these numbers
Fits:
Porsche 912E 2.0ltr 4 Cylinder - 1976
New Perma-Tune Gen 6 unit
Replacing that worn out distributor has never been easier with the Perma-Tune distributor for the 1.6ltr 4 Cylinder engine
Distributors wear out and rob your engine of the horsepower it was intended to produce. Worse yet, they can leave you stranded or even damage the crankshaft ring gear.
Forget about rebuilding an outdated distributor with hard to find parts when you can replace it with modern technology that looks original. There are no wires to cut and splice: the distributor has the electrical harness built in and features the original equipment compatible connectors for a plug and play installation.
Simply mount the ignition module to the relay panel where the later model cars had the module mounted and then plug the distributor harness connector into the Perma-Tune module. The power, ground, tachometer and coil connections are made at the existing coil wires. The harness has loop connections that allow joining the wires without having to cut and splice the car harness wires.
The Perma-Tune distributor harness is made using the same vinyl sleeve loom construction as the original wiring for that factory original look.
This Perma-Tune Porsche distributor is an exact fit replacement part that will drop right into the engine. Setting the static timing is easy with the built in trigger point LED that lets you know when the rotor is pointing in the right direction.
Idle timing is set in exactly the same way as the factory manual indicates and the factory mechanical and vacuum curves are preprogrammed into the distributor. The mechanical vacuum can is replaced with a reliable MAP sensor that is fully programmable to perform advance or retard vacuum functions.
It just doesn't get any easier than this.
This is where the fun starts
Street tune your car for maximum performance using your smart phone.
Download the free TUNE + app to your phone and connect it to the Perma-Tune distributor via Bluetooth.
Using the TUNE + app, you can read and store the ignition curves, modify them and share them with others. The app even has an ignition lock feature that prevents unauthorized use of the car. Do more than just a onetime engine tuning. Engine programs are so easy to create and load into the car that you can make your own library of programs for different uses.
For instance, you could create a de-tuned engine program for a novice driver, a super tune program for yourself or a valet tune program for the parking attendant. Get the most from engine upgrades like headers, intake, and many other engine modifications by creating custom ignition maps.
The possibilities are endless.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
92360202100
912126
92360202100
The product you are viewing cross references to these numbers
Price: £594.17
In stock
Vehicle Group
- Porsche 914 (1970-1976)
- Porsche 912E 4CYL 1976
Information
Distributor clamping bow billet aluminium.
Fits:
Porsche 914 - 1970 to 1976
Porsche 912E - 1976
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
021905250
The product you are viewing cross references to these numbers
Fits:
Porsche 914 - 1970 to 1976
Porsche 912E - 1976
This billet distributor clamp is a must for all 914, 912E and VW type 4 engines.
Designed In-house using CAD technology and manufactured from 6061-T6 aluminium billet
This type billet distributor camp ensures that the timing of your distributor will not change and your engine will stay in tune.
No modifications are required and the long threaded, stainless steel stand off makes timing adjustments a breeze.
Hard anodized in Silver or Black
Click 'Zoom in' for large parts diagram.
Diagram ref no 11
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
021905250
021905250
The product you are viewing cross references to these numbers
Prices from: £53.18
