Ignition kit with 6 pin Premium CDI module. Porsche 911 SC and turbo (USA) - IGNITIONKITSCP
IGNITIONKITSCP
Vehicle Group
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1978-1989 3.3L Turbo (930)
Information
Ignition kit with Premium 6 pin CDI (HKZ) module. Porsche 911SC and turbo
Fits
Porsche 911 SC 1978-1983
Porsche 911 turbo 3.3ltr 1978-1989 (US cars)
Perma-Tune Gen 6
Replace those tired and worn ignition components with this Ignition Kit

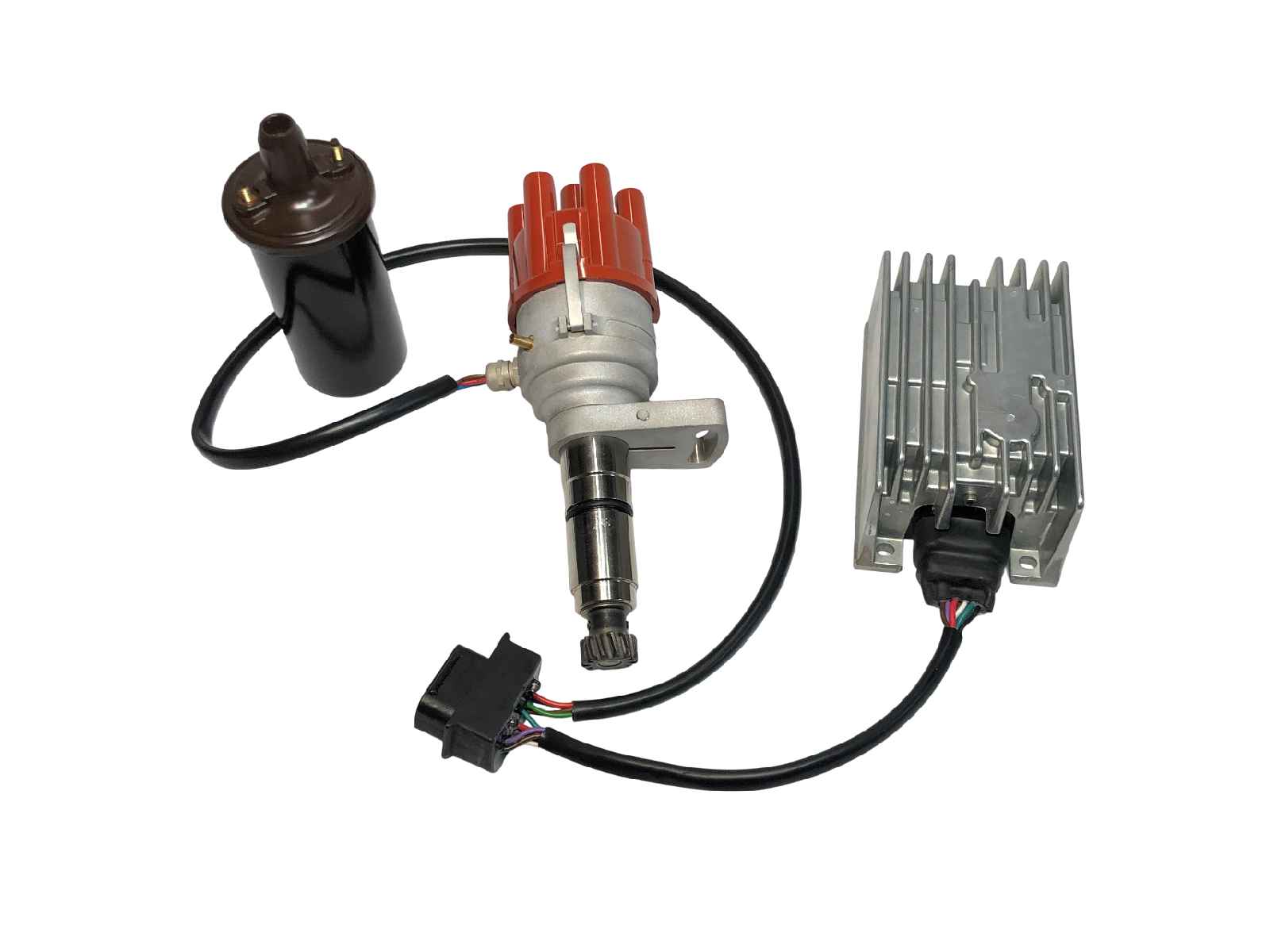

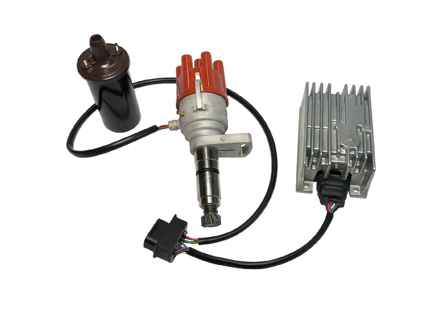

Contents of Kit
6 Pin CDI Module - Premium Version
Distributor with Harness
Ignition Coil
CDI Module
The Gen 6 Perma-Tune for the 911SC comes in two models:Premium ignition module and the Basic ignition module.
The Premium ignition module features a smooth, matt finish that mimics the patina of the original aluminum die cast part. It provides full control over RPM limit, mechanical advance timing, power output, multi spark function and has many other features that can be programmed using a computer, tablet or smart phone. This module comes preprogrammed for the Porsche 911SC so programming changes are optional. The Gen 6 Premium Perma-Tune makes diagnostics easier by providing onboard diagnostics that are automatically displayed by two coloured LED function lights. These LED lights assist in diagnosing both the vehicle and the ignition module. The green LED is a status indicator that can flash diagnostic fault codes. The red LED is a strobe light that flashes each time the coils fires in the same manner as a timing light. This LED is especially useful for detecting intermittent engine misfire caused by wiring or distributor problems. The LED function lights are mounted in the harness electrical connector and can only be seen when the module is powered up. There are three self-resetting overload protectors that assist in troubleshooting while protecting your Perma-Tune from damage. The overload protectors are hidden underneath the ignition module so they do not spoil the original look of the part. Refer to the Diagnostics section of this web site for more information about the diagnostics system and overload protectors.
Distributor
Replacing that worn out distributor has never been easier with the Perma-Tune Bespoke distributor for the 911SC 3.0L engine and other engines like the Porsche Turbo 930 that use the six pin ignition module. There are no wires to cut and splice: the distributor has the electrical harness built in and features the original equipment compatible connectors for a plug and play installation. Simply unplug the car harness connector from the ignition module and plug it into the matching connector of the distributor harness. Then plug the distributor harness connector into the Perma-Tune module and done. There is no way to make a mistake with this installation, the connectors will only plug in the right way. The harness connector has built in diagnostics lights that tell you when the ignition system has power and when the ignition module is making sparks. The blue connector LED is a power indicator and the red connector LED is a strobe light that flashes each time the ignition system makes a spark, just like a timing light.
Ignition Coil
he Perma-Tune Black Ignition Coil is specifically designed to operate with all Perma-Tune modules to maximize the performance and service life of your Perma-Tune ignition module. It has the period correct look for the Porsche 911SC with a brown top and black body and will fit the original mounting bracket and wiring harness of the car.
The Black ignition coil is very rugged and can resist the heat and vibration that it will encounter on a classic car engine. Triple seals insure that the dielectric oil inside the coil will not leak out. The high Voltage tower is extra thick to resist arcing and will still fit the original spark plug wire boot. The internal components of the coil are designed to resist deterioration to provide a long life.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
IGNITIONKITSCP
The product you are viewing cross references to these numbers
Fits
Porsche 911 SC 1978-1983
Porsche 911 turbo 3.3ltr 1978-1989 (US cars)
Perma-Tune Gen 6
Replace those tired and worn ignition components with this Ignition Kit
Contents of Kit
6 Pin CDI Module - Premium Version
Distributor with Harness
Ignition Coil
CDI Module
The Gen 6 Perma-Tune for the 911SC comes in two models:Premium ignition module and the Basic ignition module.
The Premium ignition module features a smooth, matt finish that mimics the patina of the original aluminum die cast part. It provides full control over RPM limit, mechanical advance timing, power output, multi spark function and has many other features that can be programmed using a computer, tablet or smart phone. This module comes preprogrammed for the Porsche 911SC so programming changes are optional. The Gen 6 Premium Perma-Tune makes diagnostics easier by providing onboard diagnostics that are automatically displayed by two coloured LED function lights. These LED lights assist in diagnosing both the vehicle and the ignition module. The green LED is a status indicator that can flash diagnostic fault codes. The red LED is a strobe light that flashes each time the coils fires in the same manner as a timing light. This LED is especially useful for detecting intermittent engine misfire caused by wiring or distributor problems. The LED function lights are mounted in the harness electrical connector and can only be seen when the module is powered up. There are three self-resetting overload protectors that assist in troubleshooting while protecting your Perma-Tune from damage. The overload protectors are hidden underneath the ignition module so they do not spoil the original look of the part. Refer to the Diagnostics section of this web site for more information about the diagnostics system and overload protectors.
Distributor
Replacing that worn out distributor has never been easier with the Perma-Tune Bespoke distributor for the 911SC 3.0L engine and other engines like the Porsche Turbo 930 that use the six pin ignition module. There are no wires to cut and splice: the distributor has the electrical harness built in and features the original equipment compatible connectors for a plug and play installation. Simply unplug the car harness connector from the ignition module and plug it into the matching connector of the distributor harness. Then plug the distributor harness connector into the Perma-Tune module and done. There is no way to make a mistake with this installation, the connectors will only plug in the right way. The harness connector has built in diagnostics lights that tell you when the ignition system has power and when the ignition module is making sparks. The blue connector LED is a power indicator and the red connector LED is a strobe light that flashes each time the ignition system makes a spark, just like a timing light.
Ignition Coil
he Perma-Tune Black Ignition Coil is specifically designed to operate with all Perma-Tune modules to maximize the performance and service life of your Perma-Tune ignition module. It has the period correct look for the Porsche 911SC with a brown top and black body and will fit the original mounting bracket and wiring harness of the car.
The Black ignition coil is very rugged and can resist the heat and vibration that it will encounter on a classic car engine. Triple seals insure that the dielectric oil inside the coil will not leak out. The high Voltage tower is extra thick to resist arcing and will still fit the original spark plug wire boot. The internal components of the coil are designed to resist deterioration to provide a long life.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
IGNITIONKITSCP
93060270200
93060270200
930602021DX
930602021DX
90160250200
90160250200
The product you are viewing cross references to these numbers
About kit
This kit is comprised of the following items:
1 x 6 Pin CDI ignition module. Porsche 911 / 911 turbo (USA) 1978-89 premium version (93060270200/3
1 x Distributor and harness for Porsche 911 SC and 911 turbo (USA) 1978-1989 (930602021DX/1
1 x Ignition coil Porsche 911 1969-83 & 930 1975-89 PermaTune (PCG602502A/3
Price: €1,715.64
In stock
