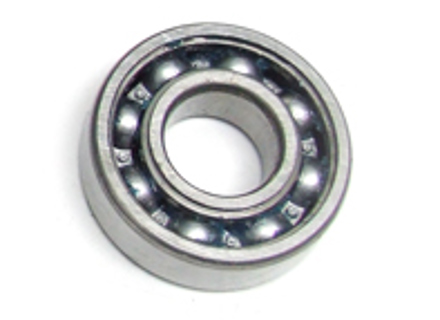

Large IMS bearing for DOF - 99610599677
99610599677
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Information
Large IMS bearing for DOF
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610599677
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610599677
99610599677
The product you are viewing cross references to these numbers
£135.00
Now £128.25
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Intermediate shaft seal IMS Retrofit Pro Tool Kit for Boxster 986 / 996 / 997
Code: 99610590102TOOL
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Information
IMS Tool Kit by EPS
Bearing puller and adapter for extracting the existing bearing from the original center stud/bearing support (shown above)
Bearing driver tool to allow easy installation of the new bearing (shown above)
"Easy Out" adapter to allow extraction of bearing using the EPS bearing puller when and if the center stud/bearing support is broken or breaks during extraction
Crankshaft Pully TDC Lock Pin to secure the engine at the proper position to do an IMS Retrofit
Camshaft locks for both early 5-chain and later 3-chain engines (kit includes one ea.)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610590102TOOL
The product you are viewing cross references to these numbers
Bearing puller and adapter for extracting the existing bearing from the original center stud/bearing support (shown above)
Bearing driver tool to allow easy installation of the new bearing (shown above)
"Easy Out" adapter to allow extraction of bearing using the EPS bearing puller when and if the center stud/bearing support is broken or breaks during extraction
Crankshaft Pully TDC Lock Pin to secure the engine at the proper position to do an IMS Retrofit
Camshaft locks for both early 5-chain and later 3-chain engines (kit includes one ea.)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610590102TOOL
99610590102TOOL
The product you are viewing cross references to these numbers
£205.00
Now £194.75
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
IMS Large Bearing Direct Oil Feed (DOF) Intermediate Shaft Retrofit Kit for Boxster 987 / 987C
Code: IMSDOF9872
Vehicle Group
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Information
IMS KIT WITH LARGE NON EXTRACTABLE STEEL BEARING
This bearing is 62mm outer diameter and 17mm wide. It is not extractable externally and engine needs to be stripped down in order to change it.
M97 Larger Bearing IMS Direct Oil Feed (DOF) Kit
Fits:
Porsche Boxster 987 2.7L 2005 -08/08
Porsche Boxster 987 3.2/3.4L 2005-08/08
Porsche Cayman 2.7L 987C 2006>>
Porsche Cayman S 3.4L 987C 2005>>
Kit Includes:
Patented DOF Flange with anti-rust zinc plating
3 micro-encapsulated Porsche bolts
Spacer for double-row bearing
Engine oil port adapter with crush ring
Cam Plug
3,000psi hydraulic hose
Fitting for hose
Thread locker
Installation instructions
The direct oil feed (DOF) solution uses a patent pending custom made Intermediate Shaft Flange that utilizes a direct oil feed to the original Intermediate Shaft Bearing. It uses an adapted pressure fed oil line from a positive oil pressure feed on the cylinder head directly to an opening in the custom Intermediate Shaft Flange. This feeds fresh oil directly to the open end of the IMS bearing (after removing the seal to expose the ball bearings on the IMS bearing). By using a positive oil feed from the engine's cylinder head valve cover, there will always be a consistent flow of oil directed to the open end of the intermediate shaft bearing.
This is a cost effective way to help protect against a possible IMS bearing failure, using the original bearing. The system, however can also be used when replacing the bearing with a new SKF steel ball bearing for added insurance with a new, zero mile bearing.
This bearing is 62mm outer diameter and 17mm wide. It is not extractable externally and engine needs to be stripped down in order to change it.
M97 Larger Bearing IMS Direct Oil Feed (DOF) Kit
Fits:
Porsche Boxster 987 2.7L 2005 -08/08
Porsche Boxster 987 3.2/3.4L 2005-08/08
Porsche Cayman 2.7L 987C 2006>>
Porsche Cayman S 3.4L 987C 2005>>
Kit Includes:
Patented DOF Flange with anti-rust zinc plating
3 micro-encapsulated Porsche bolts
Spacer for double-row bearing
Engine oil port adapter with crush ring
Cam Plug
3,000psi hydraulic hose
Fitting for hose
Thread locker
Installation instructions
The direct oil feed (DOF) solution uses a patent pending custom made Intermediate Shaft Flange that utilizes a direct oil feed to the original Intermediate Shaft Bearing. It uses an adapted pressure fed oil line from a positive oil pressure feed on the cylinder head directly to an opening in the custom Intermediate Shaft Flange. This feeds fresh oil directly to the open end of the IMS bearing (after removing the seal to expose the ball bearings on the IMS bearing). By using a positive oil feed from the engine's cylinder head valve cover, there will always be a consistent flow of oil directed to the open end of the intermediate shaft bearing.
This is a cost effective way to help protect against a possible IMS bearing failure, using the original bearing. The system, however can also be used when replacing the bearing with a new SKF steel ball bearing for added insurance with a new, zero mile bearing.
About kit
This kit is comprised of the following items:
1 x Direct oil feed installation kit for M97 engines 2005-2008 (99710599701
1 x Large IMS bearing for DOF (99610599677
£880.00
Now £836.00
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
IMS Intermediate Shaft Bearing Upgrade Eternal Fix -58MM FLANGE - Open Engine
Code: 987997IMS58MM
Vehicle Group
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Information
IMS Intermediate Shaft Bearing Upgrade Eternal Fix -58MM FLANGE - OPEN ENGINES (while doing an engine rebuild)
Fits:
Porsche 997 2005-08
Porsche Boxster 987
Porsche Cayman 987
(Not for M96 Engines)
Porsche Ims Intermediate Shaft Bearing Upgrade - Eternal Fix with Oil Pressure Feed - 58 MM - Open Engine Permanently Fix Your Intermediate Shaft With The Eternal Fix! Unlike Failure Prone Ball Bearings, Eps Uses A Patented Cylindrical Bearing With Thrust Control.
Prevent future catastrophic engine failure permanently with the only true Eternal Fix for the notorious Porsche intermediate shaft bearing. Unlike the other failure-prone ball bearing products that the original IMS and other upgrades on the market use, EPS uses a patented cylindrical bearing with thrust control that can be pressed directly into the back of the engine without disassembly. The cylindrical bearings have over 12 times the load capacity of other ball bearing solutions making the EPS IMS bearing the clear choice. Backed by a full 5-year warranty and includes an oil feed modification kit. Order yours today!
WHAT MAKES OUR SOLUTION DIFFERENT?
Roller bearings are not intended for carrying large axial loads. Similar to failure-prone ball bearings, when cylindrical roller bearings are used for thrust control, the roller becomes compromised due to the limited surface contact area on the sides of the rollers. The results of using a cylindrical bearing for thrust control will be similar to all other ball bearing solutions.
In our patented system, we use a 15mm cylindrical bearing with thrust control that allows for the separation of the axial load from the radial load. Our roller bearings do NOT carry the axis load (thrust control) on the side, which leaves the roller free to carry only the radial load (main load). The axial load is carried exclusively on the entire permitter of the outer race. This results in a bearing that is not overloaded and will last the lifetime of the engine.
EPS recommends using this product in conjunction to the Rear Main #8 Seal and Housing
Fits:
Porsche 997 2005-08
Porsche Boxster 987
Porsche Cayman 987
(Not for M96 Engines)
Porsche Ims Intermediate Shaft Bearing Upgrade - Eternal Fix with Oil Pressure Feed - 58 MM - Open Engine Permanently Fix Your Intermediate Shaft With The Eternal Fix! Unlike Failure Prone Ball Bearings, Eps Uses A Patented Cylindrical Bearing With Thrust Control.
Prevent future catastrophic engine failure permanently with the only true Eternal Fix for the notorious Porsche intermediate shaft bearing. Unlike the other failure-prone ball bearing products that the original IMS and other upgrades on the market use, EPS uses a patented cylindrical bearing with thrust control that can be pressed directly into the back of the engine without disassembly. The cylindrical bearings have over 12 times the load capacity of other ball bearing solutions making the EPS IMS bearing the clear choice. Backed by a full 5-year warranty and includes an oil feed modification kit. Order yours today!
WHAT MAKES OUR SOLUTION DIFFERENT?
Roller bearings are not intended for carrying large axial loads. Similar to failure-prone ball bearings, when cylindrical roller bearings are used for thrust control, the roller becomes compromised due to the limited surface contact area on the sides of the rollers. The results of using a cylindrical bearing for thrust control will be similar to all other ball bearing solutions.
In our patented system, we use a 15mm cylindrical bearing with thrust control that allows for the separation of the axial load from the radial load. Our roller bearings do NOT carry the axis load (thrust control) on the side, which leaves the roller free to carry only the radial load (main load). The axial load is carried exclusively on the entire permitter of the outer race. This results in a bearing that is not overloaded and will last the lifetime of the engine.
EPS recommends using this product in conjunction to the Rear Main #8 Seal and Housing
£815.00
Now £774.25
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
