Oversize cylinder head gasket 103.5mm bore. Porsche 996 Turbo / GT2 and GT3 - C14141-040
C14141-040
Vehicle Group
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Information

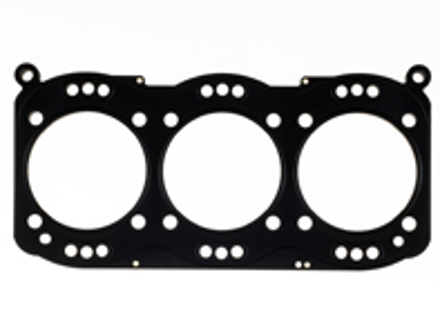

Cylinder head gasket - 103.5mm Bore size
MLX (Multi Layer Steel Stopper) version
Price is for each, 2 required per car
Fits
Porsche 996 Turbo
Porsche 996 GT3
Porsche 996 GT2
Engine Codes
M96.70 - Turbo 3.6ltr /309 KW
M96.70S - GT2 3.6ltr /340 KW
M96.70SL - GT2 3.6ltr /340 KW
M96.76 - GT3 3.6 /265 KW
M96.79 - GT3 and GT3 RS 3.6ltr /280 KW
Please check Bore Size and Thickness before ordering
Material: MLX (Multi Layer Steel Stopper)
Compressed Thickness: .030 inch
Bore Shape: Round
Bore Size (MM): 103.5
Number of layers: 3
Orientation: None (fits both banks)
Gaskets are produced to order
Estimated Delivery Time: 5-6 Weeks
MLX Gaskets
Our MLX Gasket (Multi-Layer-Steel-Stopper) features an extra 'stopper' fold-over layer providing a torque limiting surface that prevents yielding of the combustion seals.
High temperature polymer along with embossments provide a micro seal for fluids against the head and block surface.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
C14141-040
The product you are viewing cross references to these numbers
MLX (Multi Layer Steel Stopper) version
Price is for each, 2 required per car
Fits
Porsche 996 Turbo
Porsche 996 GT3
Porsche 996 GT2
Engine Codes
M96.70 - Turbo 3.6ltr /309 KW
M96.70S - GT2 3.6ltr /340 KW
M96.70SL - GT2 3.6ltr /340 KW
M96.76 - GT3 3.6 /265 KW
M96.79 - GT3 and GT3 RS 3.6ltr /280 KW
Please check Bore Size and Thickness before ordering
Material: MLX (Multi Layer Steel Stopper)
Compressed Thickness: .030 inch
Bore Shape: Round
Bore Size (MM): 103.5
Number of layers: 3
Orientation: None (fits both banks)
Gaskets are produced to order
Estimated Delivery Time: 5-6 Weeks
MLX Gaskets
Our MLX Gasket (Multi-Layer-Steel-Stopper) features an extra 'stopper' fold-over layer providing a torque limiting surface that prevents yielding of the combustion seals.
High temperature polymer along with embossments provide a micro seal for fluids against the head and block surface.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
C14141-040
99710417072
99710417071
99610417072
The product you are viewing cross references to these numbers
Price: £132.95
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
