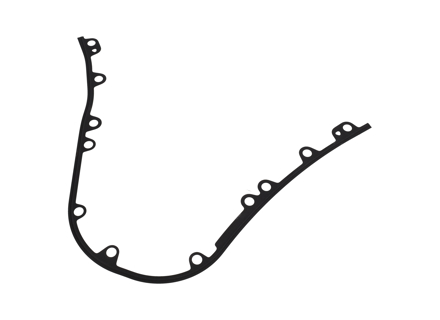

Timing Chain Cover Gasket. Porsche 958 Cayenne / 957 Cayenne / 970 Panamera - 94810112521
94810112521/1
Vehicle Group
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
- Porsche 95B.1 Macan S Petrol 3.0L V6 (340Bhp) 2014-18
- Porsche 95B.1 Macan S Diesel 3.0L V6 (258Bhp) 2014-18
- Porsche 95B.1 Macan GTS Petrol 3.0L V6 (360Bhp) 2014-18
- Porsche 95B.1 Macan Turbo 3.6L V6 (400Bhp) 2014-18
Information
Timing Chain Cover Gasket.
The OE Match Timing Chain Cover Gasket is a high-quality replacement engine sealing component designed to provide a secure, leak-free seal between the timing chain cover and engine block. Manufactured to OE specifications for fit, durability and sealing performance, this gasket helps maintain engine integrity by preventing oil leaks from the timing chain housing area.
Fits:
Diagram Ref No 4
Engineered from high-quality gasket materials capable of withstanding continuous exposure to engine oil, heat, pressure fluctuations and vibration, the timing chain cover gasket plays a critical role in protecting the timing chain assembly and preserving proper engine lubrication.
What This Product Does:
Symptoms Of Wear Or Failure:
Why Replacement Matters:
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810112521
The product you are viewing cross references to these numbers
The OE Match Timing Chain Cover Gasket is a high-quality replacement engine sealing component designed to provide a secure, leak-free seal between the timing chain cover and engine block. Manufactured to OE specifications for fit, durability and sealing performance, this gasket helps maintain engine integrity by preventing oil leaks from the timing chain housing area.
Fits:
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
- Porsche 95B.1 Macan S Petrol 3.0L V6 (340Bhp) 2014-18
- Porsche 95B.1 Macan S Diesel 3.0L V6 (258Bhp) 2014-18
- Porsche 95B.1 Macan GTS Petrol 3.0L V6 (360Bhp) 2014-18
- Porsche 95B.1 Macan Turbo 3.6L V6 (400Bhp) 2014-18
Diagram Ref No 4
Engineered from high-quality gasket materials capable of withstanding continuous exposure to engine oil, heat, pressure fluctuations and vibration, the timing chain cover gasket plays a critical role in protecting the timing chain assembly and preserving proper engine lubrication.
What This Product Does:
- Creates a leak-free seal between the timing chain cover and engine.
- Prevents engine oil leakage from the timing chain housing.
- Maintains proper lubrication of timing chain components.
- Protects the engine from oil contamination and loss.
- Helps preserve correct engine oil pressure.
- Supports long-term reliability of the timing system.
- Contributes to clean and efficient engine operation.
Symptoms Of Wear Or Failure:
- Visible engine oil leaks around the timing chain cover.
- Oil residue on the front of the engine.
- Oil drips beneath the vehicle.
- Burning oil smell from oil contacting hot engine components.
- Low engine oil levels between services.
- Oil contamination of surrounding engine components.
- Accumulation of dirt and debris around oil leak areas.
- Oil pressure warnings in severe cases involving significant oil loss.
Why Replacement Matters:
- Timing chain cover gaskets are exposed to constant heat cycles, engine vibration, oil pressure and ageing. Over time, gasket materials can harden, shrink, crack or deteriorate, reducing their ability to maintain an effective seal.
- A failing gasket can allow engine oil to escape from the timing chain housing, leading to oil loss, reduced lubrication efficiency and contamination of surrounding engine components. If left unresolved, significant oil leaks can contribute to low oil levels and increase the risk of accelerated engine wear or costly repairs.
- Replacing a worn timing chain cover gasket restores proper sealing, prevents oil leaks and helps maintain the integrity of the engine lubrication system. An OE Match replacement provides factory-style fitment, dependable sealing performance and long-term durability, ensuring reliable protection for your Porsche engine and timing chain assembly.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810112521
94810112521
94810112520
The product you are viewing cross references to these numbers
Price: £14.25
In stock
Related products
Information
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
703141410
PCG04330087
70-31414-10
The product you are viewing cross references to these numbers
Price: £5.50
In stock
Information
Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions. The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
