- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982

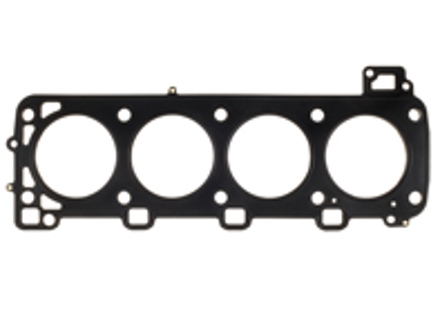

MLS (Multi Layer Steel) version
Fits
Porsche 924 2.0ltr - 1976 to 1985
Porsche 924 Turbo - 1979 to 1985
Engine Codes
2.0Ltr - 0474 /0475 /0476 /0478 /0479 /047E /047F
Turbo - M31.01 /M31.02 /M31.03 /M31.04 /M31.50
Please check Bore Size and Thickness before ordering
Material: MLS (Multi Layer Steel)
Compressed Thickness: .027 inch to 0.140 inch
Bore Shape: Round
Bore Size (MM): 88
Number of layers: 3 to 5
Gaskets are produced to order
Estimated Delivery Time: 5-6 Weeks
MLS Gaskets
The embossed outer layers of our head gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface
finishes. The MLS Gasket (Multi-Layer Steel) features an active combustion seal on multiple layers.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
C4542
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
