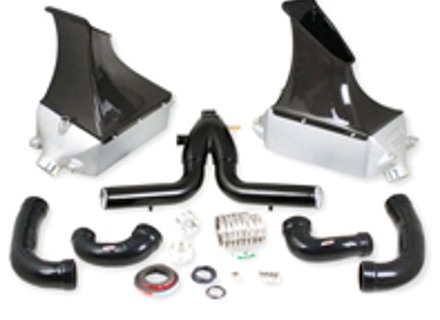

Performance intercooler kit and turbo inlet hose. Porsche 991.1 2013-2015 Turbo/Turbo S - BIG-200-GEN1-179
BIG-200-GEN1-179
Vehicle Group
- Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560Bhp) 2014-16
Information
Performance intercooler kit and turbo inlet hose.
Full Big Pack including Inlet Hoses.
To fit:
Porsche 991 Turbo and Turbo S 2013-2015
A true performance cooling upgrade for the 991 Turbo / Turbo S
This is the most refined of all products we carry today!
• Significantly improved Air flow! (see graph images).
• Cooler air to your engine!
• High quality high density UK made motorsport cores.
• 3D freeform designed cast end tanks
• Custom designed carbon fiber ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
About the intercoolers: Right from the beginning we realised that we could not sacrifice anything to keep the cost down we just had to do the best possible in the space available in the car!
First of all we made a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which have great cooling efficiency along with a low weight.
With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency.
To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment to ensure perfect fit to the vehicle integrated air guides and our intercooler.
To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to design custom silicone hoses for all positions. The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature!
Another important aspect for cooling performance are to use all ambient cooling air available, to optimize this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
Using this design in building our intercoolers the weight increase compared to the OEM ones is relatively small considering the size of our intercooler and that its all made of aluminium. Our intercooler weight is 5,4 kg (11,9 lb) per piece and the 991 OEM intercooler weights 3,1 kg (6,8 lb) per piece. It might sound like a big weight increase but compared to other actors on the market with intercoolers in this size it's a low weight!
At the same time as our intercoolers lower the intake temperature, they also flow better than the 991 original intercoolers! Please have a look at the air flow rates at different pressure drops in the graph below where we compared our intercooler with hoses to the original intercooler with hoses in our own Superflow SF-1020 Probench to verify the final result!
Keep in mind that the OEM intercoolers was designed for only the power level the car was built for originally. A power increase may cause your stock intercoolers to not be efficient enough. So even on an engine with a software tune only or using your car in hot climate the do88 performance intercooler kit will give a performance increase over the OEM intercoolers!
This do88 performance intercooler kit comes as a complete package with all parts necessary for installation.
Please Note! Some modifications need to be done when installing this intercooler kit, please read step 29,31 & 35 in the installation guide before placing order (opens on do88.se, right click on link , select 'open in new tab')
Installation Instruction
About the Y Pipe
Our pipe has both a very good flow rate and a low weight which is accommodated by composing mandrel bent lightweight pipes with a high quality 3D freeform designed cast joint between them. Onto the cast part we then weld CNC-machined connections for bov and breather hoses. This construction technique adds a lot of performance but only a touch of extra weight. The pipes are then finished in a high quality powder coat that makes them look as good as they perform!
When it comes to air flow performance our Y-pipe totally outperforms the OEM Y-pipe by 58% increased flow at the same pressure drop! Be aware of that the OEM parts are only designed for the power level the car was built for originally. A power increase may cause your stock Y pipe to hold back the power of your engine. So even on an engine with a software tune only the do88 performance Y-pipe will give a performance increase over the OEM Y-pipe!
Much larger inner diameter for improved air flow, 58 % higher! (see graph images).
Made of 2,5" (63mm) mandrel bent aluminium pipes.
The pipe has two methanol injection connections (1/8 -27 NPT). The pipe is delivered with blanking plugs in these connections.
Smooth flow cast collector part.
Smooth internal surface for best air flow.
Comes with high quality silicone hoses and accessories for installation.
About the Inlet Hoses
do88 proudly presents the worlds first high flowing turbo inlet hoses for Porsche 991.1 / 991.2 Turbo. Self developed by do88 in Sweden !
• Much larger overall inner diameter for improved air flow, 31 % higher! (see graph diagram ). The hoses have a 2,5 inch (63mm) inner diameter at the narrowest location.
• Smooth flow transitions.
• Very smooth internal surface for best air flow.
• Excellent thermal properties, the hoses will not absorb heat from the engine.
• The hoses are reinforced with stainless steel wire to eliminate the risk of implosion on high out-takes.
It was a real challenge developing new turbo intake hoses for the 991 Turbo. The lack of space made it really difficult to make a set of hoses that would outflow the stock plastic pipes. We succeeded but in some smaller areas we had to compromise and allow these hoses to have no clearance, so they will push or rub in some non-sensitive areas.
We can ensure you the sensation while driving is very different. The improvement in throttle response is immense, making the car feel so much more refined and alert. This upgrade makes it become what it should have been from the start. This is an improvement no test figures can explain, it has to be perceived behind the wheel of a 991 turbo!
The inlet hose package includes everything for mounting:
• 2 wire-reinforced silicone hoses
• 2 silicone hoses
• 2 breather valves
• 2 CNC machined VTG adapters
• Clamps and Screws
This product is available in 2 options, OEM Porsche turbos or with 51.5mm turbo adapters for cars where the compressor wheel has been replaced, and compressor housing machined larger.
Please select your turbo type below.
Equivalent Porsche OEM part numbers 99111063972, 99111063973, 99111064072, 99111064073, 99111005070, 99111064672, 99711064773KLO (for cross reference only)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BIG-200-GEN1-179
The product you are viewing cross references to these numbers
Full Big Pack including Inlet Hoses.
To fit:
Porsche 991 Turbo and Turbo S 2013-2015
A true performance cooling upgrade for the 991 Turbo / Turbo S
This is the most refined of all products we carry today!
• Significantly improved Air flow! (see graph images).
• Cooler air to your engine!
• High quality high density UK made motorsport cores.
• 3D freeform designed cast end tanks
• Custom designed carbon fiber ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
About the intercoolers: Right from the beginning we realised that we could not sacrifice anything to keep the cost down we just had to do the best possible in the space available in the car!
First of all we made a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which have great cooling efficiency along with a low weight.
With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency.
To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment to ensure perfect fit to the vehicle integrated air guides and our intercooler.
To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to design custom silicone hoses for all positions. The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature!
Another important aspect for cooling performance are to use all ambient cooling air available, to optimize this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
Using this design in building our intercoolers the weight increase compared to the OEM ones is relatively small considering the size of our intercooler and that its all made of aluminium. Our intercooler weight is 5,4 kg (11,9 lb) per piece and the 991 OEM intercooler weights 3,1 kg (6,8 lb) per piece. It might sound like a big weight increase but compared to other actors on the market with intercoolers in this size it's a low weight!
At the same time as our intercoolers lower the intake temperature, they also flow better than the 991 original intercoolers! Please have a look at the air flow rates at different pressure drops in the graph below where we compared our intercooler with hoses to the original intercooler with hoses in our own Superflow SF-1020 Probench to verify the final result!
Keep in mind that the OEM intercoolers was designed for only the power level the car was built for originally. A power increase may cause your stock intercoolers to not be efficient enough. So even on an engine with a software tune only or using your car in hot climate the do88 performance intercooler kit will give a performance increase over the OEM intercoolers!
This do88 performance intercooler kit comes as a complete package with all parts necessary for installation.
Please Note! Some modifications need to be done when installing this intercooler kit, please read step 29,31 & 35 in the installation guide before placing order (opens on do88.se, right click on link , select 'open in new tab')
Installation Instruction
About the Y Pipe
Our pipe has both a very good flow rate and a low weight which is accommodated by composing mandrel bent lightweight pipes with a high quality 3D freeform designed cast joint between them. Onto the cast part we then weld CNC-machined connections for bov and breather hoses. This construction technique adds a lot of performance but only a touch of extra weight. The pipes are then finished in a high quality powder coat that makes them look as good as they perform!
When it comes to air flow performance our Y-pipe totally outperforms the OEM Y-pipe by 58% increased flow at the same pressure drop! Be aware of that the OEM parts are only designed for the power level the car was built for originally. A power increase may cause your stock Y pipe to hold back the power of your engine. So even on an engine with a software tune only the do88 performance Y-pipe will give a performance increase over the OEM Y-pipe!
Much larger inner diameter for improved air flow, 58 % higher! (see graph images).
Made of 2,5" (63mm) mandrel bent aluminium pipes.
The pipe has two methanol injection connections (1/8 -27 NPT). The pipe is delivered with blanking plugs in these connections.
Smooth flow cast collector part.
Smooth internal surface for best air flow.
Comes with high quality silicone hoses and accessories for installation.
About the Inlet Hoses
do88 proudly presents the worlds first high flowing turbo inlet hoses for Porsche 991.1 / 991.2 Turbo. Self developed by do88 in Sweden !
• Much larger overall inner diameter for improved air flow, 31 % higher! (see graph diagram ). The hoses have a 2,5 inch (63mm) inner diameter at the narrowest location.
• Smooth flow transitions.
• Very smooth internal surface for best air flow.
• Excellent thermal properties, the hoses will not absorb heat from the engine.
• The hoses are reinforced with stainless steel wire to eliminate the risk of implosion on high out-takes.
It was a real challenge developing new turbo intake hoses for the 991 Turbo. The lack of space made it really difficult to make a set of hoses that would outflow the stock plastic pipes. We succeeded but in some smaller areas we had to compromise and allow these hoses to have no clearance, so they will push or rub in some non-sensitive areas.
We can ensure you the sensation while driving is very different. The improvement in throttle response is immense, making the car feel so much more refined and alert. This upgrade makes it become what it should have been from the start. This is an improvement no test figures can explain, it has to be perceived behind the wheel of a 991 turbo!
The inlet hose package includes everything for mounting:
• 2 wire-reinforced silicone hoses
• 2 silicone hoses
• 2 breather valves
• 2 CNC machined VTG adapters
• Clamps and Screws
This product is available in 2 options, OEM Porsche turbos or with 51.5mm turbo adapters for cars where the compressor wheel has been replaced, and compressor housing machined larger.
Please select your turbo type below.
Equivalent Porsche OEM part numbers 99111063972, 99111063973, 99111064072, 99111064073, 99111005070, 99111064672, 99711064773KLO (for cross reference only)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BIG-200-GEN1-179
99111063972
99111063973
99111064072
99111064073
99111005070
99111064672
99711064773KLO
The product you are viewing cross references to these numbers
Prices from: €5,887.57
Related products
Vehicle Group
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
- Porsche 992.1 (911) Sport Classic 3.8L 2023
- Porsche 992.2 Carrera 2 3.0L 2024>>
- Porsche 992.2 Carrera 2 3.0L Cabriolet 2024>>
Information
Aluminium intercooler system.
Fits:
Porsche 992.1 Turbo - 2020 to 2024
Porsche 992.1 Turbo S - 2020 to 2024
Porsche 992.1 Sport Classic - 2022 to 2024
Porsche 992.2 Carrera 2 - 2024 onwards
Porsche 992.2 Carrera 4 - 2024 onwards
(Porsche 992.2 - not for Hybrid models)
OEM ref
992.145.805.G
992.145.805.N
• Eliminates Heat Soak and Lowers Intake Air Temperatures (IATs) for Maximum Performance in Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment
• Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)
• CNC Machined Billet End Tanks With Integrated Machined Y-Pipe Connection to Throttle Body
• 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications
• OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components
• True Plug-and-Play "Drop-in Fit" Installation
• R&D and Performance Testing by Industry-Leading Porsche & McLaren Tuning Company, M Engineering
• Made in the USA at PWR North America
Cross reference numbers
992145805G
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8188
The product you are viewing cross references to these numbers
Fits:
Porsche 992.1 Turbo - 2020 to 2024
Porsche 992.1 Turbo S - 2020 to 2024
Porsche 992.1 Sport Classic - 2022 to 2024
Porsche 992.2 Carrera 2 - 2024 onwards
Porsche 992.2 Carrera 4 - 2024 onwards
(Porsche 992.2 - not for Hybrid models)
OEM ref
992.145.805.G
992.145.805.N
• Eliminates Heat Soak and Lowers Intake Air Temperatures (IATs) for Maximum Performance in Race Conditions – Especially Critical Due to Intercooler Placement in Engine Compartment
• Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)
• CNC Machined Billet End Tanks With Integrated Machined Y-Pipe Connection to Throttle Body
• 100% TIG Welded vs. OEM Style Gasket and Crimped Plastic End Tanks for Maximum Durability in High Boost Applications
• OEM Style CNC Machined Inlet/Outlet Connections for Precise Fitment with All OEM Components
• True Plug-and-Play "Drop-in Fit" Installation
• R&D and Performance Testing by Industry-Leading Porsche & McLaren Tuning Company, M Engineering
• Made in the USA at PWR North America
Cross reference numbers
992145805G
992145805N
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8188
992.145.805.G
992145805G
992145805N
The product you are viewing cross references to these numbers
Price: €4,878.90
Orderable
Vehicle Group
- Porsche 992.1 Carrera 2 3.0L 2019-24
- Porsche 992.1 Carrera 4 3.0L 2019-24
- Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4 3.0L 2020-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
Information
Intercooler kit.
A true performance upgrade for Porsche 992 cars
As the world´s first complete 992 intercooler package, this is our most complex product ever
Fits:
Porsche 911 (992): 2019 onwards
Porsche 992 Carrera
Porsche 992 Carrera S
Porsche 992 Carrera 4
Porsche 992 Carrera 4S
Porsche 992 Carrera S
Porsche 992 Carrera GTS
Porsche 992 Carrera 4 GTS
Porsche 992 Turbo
If you ask us, this is as good as you can make an intercooler kit for this platform. No rock has been left unturned in our quest for maximum performance in any given section of the system. The starting point is the cores from renowned Garrett Motorsport, these are incredibly well-made with thin and stacked fins, exactly according to our specification in the weighing of cooling and airflow. The end tanks are made from thin, cast aluminium to keep the weight down and still utilise airflow. To accommodate the thicker core, we replace the air guides with carbon ducts made of the best quality.
To remove bottlenecks throughout the system, the intercooler connections are made bigger and come along with do88 silicone hoses designed with soft, sweeping bends. We have not made any sacrifice or compromise during this development
Key figures:
• Colder inlet air temperature in the same conditions: DO88 30°C / 86 F (OEM 39°C / 102,2 F). DO88 9°C / (16,2 F) lower. See diagram below.
• More air to your engine, less back pressure and better airflow! Airflow at 0,175 bar / 2,54 psi pressure drop: DO88 919 CFM (OEM 820 CFM), DO88 unit 12% higher! See diagram.
• High-density, motorsport-grade Bar&Plate cores from Garrett.
• 3D, freeform-designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• Meth bungs on the intercooler outlet tank (2x 1/8 NPT).
Background:
Upon launching the 992 generation, Porsche had already abandoned the naturally aspirated engine. From now on, all 911´s are turbocharged which makes this entry-level legend interesting also for the ones aiming for those bigger HP-numbers. Each car model comes with its own challenges and preconditions. While the principle is the same as ever, the layout of the intercooler system is something entirely new on this platform compared to previous Porsche 911´s. With our knowledge and experience from previous developments, we sat down by the drawing board with equal shares of confidence and respect. As a pioneer on this new platform on the market we realised we had to be very accurate and forward-thinking. Today we are proud of our achievements for the 992!
Earlier versions of the Porsche 911 have their intercoolers inside each rear fender, with a y-pipe uniting them both before the charge air reaches the inlet manifold. The 992 has a different set-up entirely. The intercooler and y-pipe are now combined to a unit that sits beneath the rear wing. The ambient air is pushed via channels from the rear window, into a scoop on the decklid, and onwards through the intercooler core for optimal heat transfer. The active rear wing is crucial for the efficiency of the core as it directs more air in its upright position. Looking at the construction from the side, this configuration really makes more sense, but is also more demanding for us a performance cooling manufacturer. To be able to fit a core with greater volume and surface area, we had to develop new carbon ducts to allow the increase in thickness. We are very happy to have taken our carbon production to the next level with this product - the fitment and finish worthy of an icon as the 911!
Cores from Garrett:
The cores are Bar&Plate, made by renowned Garrett Motorsport. Quite frankly, they are as good as they get. Thin and stacked cooling fins give a dense construction, providing very efficient heat transfer. The core measures 105 mm (4") and are exactly as thick as you possibly can make them for this application. The air is distributed to the entire core via free form-designed, cast end tanks. Designing these was a significant undertaking that concluded 3D-scanning, CFD-analysis and 3D-printing many times over until we had a finished prototype. We chose, as usual, to use cast end tanks as they allow shapes that CNC-machining cannot replicate, and to us function always conquers form. Maximum airflow supersedes the bling factor! The tanks are made with machined 70 mm (2,75") connections to enable high outputs. To pair with these bigger connections, we also include silicone hoses. Both cores are united by a central outlet tank towards the inlet manifold, utilising machined connections and meth bungs.
Ambient air guides made from carbon:
The air guides are made from vacuum infused, prepreg carbon and all pieces come with fastening grooves for the air channels just like the OE bits. As complex as the shapes are, we still guarantee perfect fitment. The two upper air guides are always the same regardless of what car you have, but for the two lower pieces there is an option: Standard or SportDesign.
SportDesign has better evacuation of the cooling air via an outlet in the middle of the bumper. From a performance standpoint, SportDesign is preferred, but we offer carbon ducts for both versions. They come with proper rubber seals where this is needed to prevent the cooling air to escape pass the core.
Performance:
When it comes down to performance, the do88 intercoolers significantly reduce the intake temperature! In the graph below the difference towards the OE 992 units is presented. The data is collected with an AIM race logger under 5 consecutive runs in an immediate sequence on a closed airstrip. Full throttle accelerations between 50-250 km/h (30-155 mph) carried out in a Porsche 911 Carrera S (450 hp). Hard braking, no cool down in between, just full pull five times. The rear wing was in its upper position all the time.
The test was conducted in the following manner:
Firstly, 5 runs were made with the car equipped with the 992 OE intercoolers. Stop, fast change of parts to the do88 intercoolers. Shakedown for a few minutes and then five runs made in the exact same way as with the OE parts. The decrease in inlet air temperature is significant, peak delta is 9°C (16,2 F). See the graph below!
Cooling is important, and so is airflow. After many hours in the development, refining the end tanks and choosing a core to meet our demand, the result is an intercooler that is much more efficient in terms of heat transfer as well as airflow. Using our in-house flowbench, the Superflow SF-1020 Probench, the airflow is verified for both the do88 intercoolers and the OE 992 units. What you see is what you get – true performance
Please Select which rear bumper your car have. Standard or the Sport Design Package* bumper.
* The Sport Design Package (Equipment codes 2D1,2D4,2D5,VM2,VM3) rear bumper has cooling air outlet in-between the exhaust pipes
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DO88ICM-360
The product you are viewing cross references to these numbers
A true performance upgrade for Porsche 992 cars
As the world´s first complete 992 intercooler package, this is our most complex product ever
Fits:
Porsche 911 (992): 2019 onwards
Porsche 992 Carrera
Porsche 992 Carrera S
Porsche 992 Carrera 4
Porsche 992 Carrera 4S
Porsche 992 Carrera S
Porsche 992 Carrera GTS
Porsche 992 Carrera 4 GTS
Porsche 992 Turbo
If you ask us, this is as good as you can make an intercooler kit for this platform. No rock has been left unturned in our quest for maximum performance in any given section of the system. The starting point is the cores from renowned Garrett Motorsport, these are incredibly well-made with thin and stacked fins, exactly according to our specification in the weighing of cooling and airflow. The end tanks are made from thin, cast aluminium to keep the weight down and still utilise airflow. To accommodate the thicker core, we replace the air guides with carbon ducts made of the best quality.
To remove bottlenecks throughout the system, the intercooler connections are made bigger and come along with do88 silicone hoses designed with soft, sweeping bends. We have not made any sacrifice or compromise during this development
Key figures:
• Colder inlet air temperature in the same conditions: DO88 30°C / 86 F (OEM 39°C / 102,2 F). DO88 9°C / (16,2 F) lower. See diagram below.
• More air to your engine, less back pressure and better airflow! Airflow at 0,175 bar / 2,54 psi pressure drop: DO88 919 CFM (OEM 820 CFM), DO88 unit 12% higher! See diagram.
• High-density, motorsport-grade Bar&Plate cores from Garrett.
• 3D, freeform-designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• Meth bungs on the intercooler outlet tank (2x 1/8 NPT).
Background:
Upon launching the 992 generation, Porsche had already abandoned the naturally aspirated engine. From now on, all 911´s are turbocharged which makes this entry-level legend interesting also for the ones aiming for those bigger HP-numbers. Each car model comes with its own challenges and preconditions. While the principle is the same as ever, the layout of the intercooler system is something entirely new on this platform compared to previous Porsche 911´s. With our knowledge and experience from previous developments, we sat down by the drawing board with equal shares of confidence and respect. As a pioneer on this new platform on the market we realised we had to be very accurate and forward-thinking. Today we are proud of our achievements for the 992!
Earlier versions of the Porsche 911 have their intercoolers inside each rear fender, with a y-pipe uniting them both before the charge air reaches the inlet manifold. The 992 has a different set-up entirely. The intercooler and y-pipe are now combined to a unit that sits beneath the rear wing. The ambient air is pushed via channels from the rear window, into a scoop on the decklid, and onwards through the intercooler core for optimal heat transfer. The active rear wing is crucial for the efficiency of the core as it directs more air in its upright position. Looking at the construction from the side, this configuration really makes more sense, but is also more demanding for us a performance cooling manufacturer. To be able to fit a core with greater volume and surface area, we had to develop new carbon ducts to allow the increase in thickness. We are very happy to have taken our carbon production to the next level with this product - the fitment and finish worthy of an icon as the 911!
Cores from Garrett:
The cores are Bar&Plate, made by renowned Garrett Motorsport. Quite frankly, they are as good as they get. Thin and stacked cooling fins give a dense construction, providing very efficient heat transfer. The core measures 105 mm (4") and are exactly as thick as you possibly can make them for this application. The air is distributed to the entire core via free form-designed, cast end tanks. Designing these was a significant undertaking that concluded 3D-scanning, CFD-analysis and 3D-printing many times over until we had a finished prototype. We chose, as usual, to use cast end tanks as they allow shapes that CNC-machining cannot replicate, and to us function always conquers form. Maximum airflow supersedes the bling factor! The tanks are made with machined 70 mm (2,75") connections to enable high outputs. To pair with these bigger connections, we also include silicone hoses. Both cores are united by a central outlet tank towards the inlet manifold, utilising machined connections and meth bungs.
Ambient air guides made from carbon:
The air guides are made from vacuum infused, prepreg carbon and all pieces come with fastening grooves for the air channels just like the OE bits. As complex as the shapes are, we still guarantee perfect fitment. The two upper air guides are always the same regardless of what car you have, but for the two lower pieces there is an option: Standard or SportDesign.
SportDesign has better evacuation of the cooling air via an outlet in the middle of the bumper. From a performance standpoint, SportDesign is preferred, but we offer carbon ducts for both versions. They come with proper rubber seals where this is needed to prevent the cooling air to escape pass the core.
Performance:
When it comes down to performance, the do88 intercoolers significantly reduce the intake temperature! In the graph below the difference towards the OE 992 units is presented. The data is collected with an AIM race logger under 5 consecutive runs in an immediate sequence on a closed airstrip. Full throttle accelerations between 50-250 km/h (30-155 mph) carried out in a Porsche 911 Carrera S (450 hp). Hard braking, no cool down in between, just full pull five times. The rear wing was in its upper position all the time.
The test was conducted in the following manner:
Firstly, 5 runs were made with the car equipped with the 992 OE intercoolers. Stop, fast change of parts to the do88 intercoolers. Shakedown for a few minutes and then five runs made in the exact same way as with the OE parts. The decrease in inlet air temperature is significant, peak delta is 9°C (16,2 F). See the graph below!
Cooling is important, and so is airflow. After many hours in the development, refining the end tanks and choosing a core to meet our demand, the result is an intercooler that is much more efficient in terms of heat transfer as well as airflow. Using our in-house flowbench, the Superflow SF-1020 Probench, the airflow is verified for both the do88 intercoolers and the OE 992 units. What you see is what you get – true performance
Please Select which rear bumper your car have. Standard or the Sport Design Package* bumper.
* The Sport Design Package (Equipment codes 2D1,2D4,2D5,VM2,VM3) rear bumper has cooling air outlet in-between the exhaust pipes
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DO88ICM-360
992145805F
992145816
992145817
992145928C
992145928B
992145927C
992145927B
992145737
992145738
The product you are viewing cross references to these numbers
Prices from: €5,347.84
Vehicle Group
- Porsche 992.1 Carrera 2 3.0L 2019-24
- Porsche 992.1 Carrera 4 3.0L 2019-24
- Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4 3.0L 2020-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
Information
Big pack complete Intercooler kit.
Intercoolers and pipework sold as a kit
Kit contents:
• Intercooler pressure pipes and hoses kit
• DO88 Performance intercoolers set
A true performance upgrade for Porsche 992 cars
As the world´s first complete 992 intercooler package, this is our most complex product ever
Fits:
Porsche 911 (992): 2019 onwards
Porsche 992 Carrera
Porsche 992 Carrera S
Porsche 992 Carrera 4
Porsche 992 Carrera 4S
Porsche 992 Carrera S
Porsche 992 Carrera GTS
Porsche 992 Carrera 4 GTS
Porsche 992 Turbo
If you ask us, this is as good as you can make an intercooler kit for this platform.
No rock has been left unturned in our quest for maximum performance in any given section of the system. The starting point is the cores from renowned Garrett Motorsport, these are incredibly well-made with thin and stacked fins, exactly according to our specification in the weighing of cooling and airflow. The end tanks are made from thin, cast aluminium to keep the weight down and still utilise airflow. To accommodate the thicker core, we replace the air guides with carbon ducts made of the best quality.
To remove bottlenecks throughout the system, the intercooler connections are made bigger and come along with do88 silicone hoses designed with soft, sweeping bends. We have not made any sacrifice or compromise during this development
Key figures:
• Colder inlet air temperature in the same conditions: DO88 30°C / 86 F (OEM 39°C / 102,2 F). DO88 9°C / (16,2 F) lower. See diagram below.
• More air to your engine, less back pressure and better airflow! Airflow at 0,175 bar / 2,54 psi pressure drop: DO88 919 CFM (OEM 820 CFM), DO88 unit 12% higher! See diagram.
• High-density, motorsport-grade Bar&Plate cores from Garrett.
• 3D, freeform-designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• Meth bungs on the intercooler outlet tank (2x 1/8 NPT).
Background:
Upon launching the 992 generation, Porsche had already abandoned the naturally aspirated engine. From now on, all 911´s are turbocharged which makes this entry-level legend interesting also for the ones aiming for those bigger HP-numbers. Each car model comes with its own challenges and preconditions. While the principle is the same as ever, the layout of the intercooler system is something entirely new on this platform compared to previous Porsche 911´s. With our knowledge and experience from previous developments, we sat down by the drawing board with equal shares of confidence and respect. As a pioneer on this new platform on the market we realised we had to be very accurate and forward-thinking. Today we are proud of our achievements for the 992!
Earlier versions of the Porsche 911 have their intercoolers inside each rear fender, with a y-pipe uniting them both before the charge air reaches the inlet manifold. The 992 has a different set-up entirely. The intercooler and y-pipe are now combined to a unit that sits beneath the rear wing. The ambient air is pushed via channels from the rear window, into a scoop on the decklid, and onwards through the intercooler core for optimal heat transfer. The active rear wing is crucial for the efficiency of the core as it directs more air in its upright position. Looking at the construction from the side, this configuration really makes more sense, but is also more demanding for us a performance cooling manufacturer. To be able to fit a core with greater volume and surface area, we had to develop new carbon ducts to allow the increase in thickness. We are very happy to have taken our carbon production to the next level with this product - the fitment and finish worthy of an icon as the 911!
Cores from Garrett:
The cores are Bar&Plate, made by renowned Garrett Motorsport. Quite frankly, they are as good as they get. Thin and stacked cooling fins give a dense construction, providing very efficient heat transfer. The core measures 105 mm (4") and are exactly as thick as you possibly can make them for this application. The air is distributed to the entire core via free form-designed, cast end tanks. Designing these was a significant undertaking that concluded 3D-scanning, CFD-analysis and 3D-printing many times over until we had a finished prototype. We chose, as usual, to use cast end tanks as they allow shapes that CNC-machining cannot replicate, and to us function always conquers form. Maximum airflow supersedes the bling factor! The tanks are made with machined 70 mm (2,75") connections to enable high outputs. To pair with these bigger connections, we also include silicone hoses. Both cores are united by a central outlet tank towards the inlet manifold, utilising machined connections and meth bungs.
Ambient air guides made from carbon:
The air guides are made from vacuum infused, prepreg carbon and all pieces come with fastening grooves for the air channels just like the OE bits. As complex as the shapes are, we still guarantee perfect fitment. The two upper air guides are always the same regardless of what car you have, but for the two lower pieces there is an option: Standard or SportDesign.
SportDesign has better evacuation of the cooling air via an outlet in the middle of the bumper. From a performance standpoint, SportDesign is preferred, but we offer carbon ducts for both versions. They come with proper rubber seals where this is needed to prevent the cooling air to escape pass the core.
Performance:
When it comes down to performance, the do88 intercoolers significantly reduce the intake temperature! In the graph below the difference towards the OE 992 units is presented. The data is collected with an AIM race logger under 5 consecutive runs in an immediate sequence on a closed airstrip. Full throttle accelerations between 50-250 km/h (30-155 mph) carried out in a Porsche 911 Carrera S (450 hp). Hard braking, no cool down in between, just full pull five times. The rear wing was in its upper position all the time.
The test was conducted in the following manner:
Firstly, 5 runs were made with the car equipped with the 992 OE intercoolers. Stop, fast change of parts to the do88 intercoolers. Shakedown for a few minutes and then five runs made in the exact same way as with the OE parts. The decrease in inlet air temperature is significant, peak delta is 9°C (16,2 F). See the graph below!
Cooling is important, and so is airflow. After many hours in the development, refining the end tanks and choosing a core to meet our demand, the result is an intercooler that is much more efficient in terms of heat transfer as well as airflow. Using our in-house flowbench, the Superflow SF-1020 Probench, the airflow is verified for both the do88 intercoolers and the OE 992 units. What you see is what you get – true performance
Please Select which rear bumper your car have. Standard or the Sport Design Package* bumper.
* The Sport Design Package (Equipment codes 2D1,2D4,2D5,VM2,VM3) rear bumper has cooling air outlet in-between the exhaust pipes
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DO88BIG-310
The product you are viewing cross references to these numbers
Intercoolers and pipework sold as a kit
Kit contents:
• Intercooler pressure pipes and hoses kit
• DO88 Performance intercoolers set
A true performance upgrade for Porsche 992 cars
As the world´s first complete 992 intercooler package, this is our most complex product ever
Fits:
Porsche 911 (992): 2019 onwards
Porsche 992 Carrera
Porsche 992 Carrera S
Porsche 992 Carrera 4
Porsche 992 Carrera 4S
Porsche 992 Carrera S
Porsche 992 Carrera GTS
Porsche 992 Carrera 4 GTS
Porsche 992 Turbo
If you ask us, this is as good as you can make an intercooler kit for this platform.
No rock has been left unturned in our quest for maximum performance in any given section of the system. The starting point is the cores from renowned Garrett Motorsport, these are incredibly well-made with thin and stacked fins, exactly according to our specification in the weighing of cooling and airflow. The end tanks are made from thin, cast aluminium to keep the weight down and still utilise airflow. To accommodate the thicker core, we replace the air guides with carbon ducts made of the best quality.
To remove bottlenecks throughout the system, the intercooler connections are made bigger and come along with do88 silicone hoses designed with soft, sweeping bends. We have not made any sacrifice or compromise during this development
Key figures:
• Colder inlet air temperature in the same conditions: DO88 30°C / 86 F (OEM 39°C / 102,2 F). DO88 9°C / (16,2 F) lower. See diagram below.
• More air to your engine, less back pressure and better airflow! Airflow at 0,175 bar / 2,54 psi pressure drop: DO88 919 CFM (OEM 820 CFM), DO88 unit 12% higher! See diagram.
• High-density, motorsport-grade Bar&Plate cores from Garrett.
• 3D, freeform-designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• Meth bungs on the intercooler outlet tank (2x 1/8 NPT).
Background:
Upon launching the 992 generation, Porsche had already abandoned the naturally aspirated engine. From now on, all 911´s are turbocharged which makes this entry-level legend interesting also for the ones aiming for those bigger HP-numbers. Each car model comes with its own challenges and preconditions. While the principle is the same as ever, the layout of the intercooler system is something entirely new on this platform compared to previous Porsche 911´s. With our knowledge and experience from previous developments, we sat down by the drawing board with equal shares of confidence and respect. As a pioneer on this new platform on the market we realised we had to be very accurate and forward-thinking. Today we are proud of our achievements for the 992!
Earlier versions of the Porsche 911 have their intercoolers inside each rear fender, with a y-pipe uniting them both before the charge air reaches the inlet manifold. The 992 has a different set-up entirely. The intercooler and y-pipe are now combined to a unit that sits beneath the rear wing. The ambient air is pushed via channels from the rear window, into a scoop on the decklid, and onwards through the intercooler core for optimal heat transfer. The active rear wing is crucial for the efficiency of the core as it directs more air in its upright position. Looking at the construction from the side, this configuration really makes more sense, but is also more demanding for us a performance cooling manufacturer. To be able to fit a core with greater volume and surface area, we had to develop new carbon ducts to allow the increase in thickness. We are very happy to have taken our carbon production to the next level with this product - the fitment and finish worthy of an icon as the 911!
Cores from Garrett:
The cores are Bar&Plate, made by renowned Garrett Motorsport. Quite frankly, they are as good as they get. Thin and stacked cooling fins give a dense construction, providing very efficient heat transfer. The core measures 105 mm (4") and are exactly as thick as you possibly can make them for this application. The air is distributed to the entire core via free form-designed, cast end tanks. Designing these was a significant undertaking that concluded 3D-scanning, CFD-analysis and 3D-printing many times over until we had a finished prototype. We chose, as usual, to use cast end tanks as they allow shapes that CNC-machining cannot replicate, and to us function always conquers form. Maximum airflow supersedes the bling factor! The tanks are made with machined 70 mm (2,75") connections to enable high outputs. To pair with these bigger connections, we also include silicone hoses. Both cores are united by a central outlet tank towards the inlet manifold, utilising machined connections and meth bungs.
Ambient air guides made from carbon:
The air guides are made from vacuum infused, prepreg carbon and all pieces come with fastening grooves for the air channels just like the OE bits. As complex as the shapes are, we still guarantee perfect fitment. The two upper air guides are always the same regardless of what car you have, but for the two lower pieces there is an option: Standard or SportDesign.
SportDesign has better evacuation of the cooling air via an outlet in the middle of the bumper. From a performance standpoint, SportDesign is preferred, but we offer carbon ducts for both versions. They come with proper rubber seals where this is needed to prevent the cooling air to escape pass the core.
Performance:
When it comes down to performance, the do88 intercoolers significantly reduce the intake temperature! In the graph below the difference towards the OE 992 units is presented. The data is collected with an AIM race logger under 5 consecutive runs in an immediate sequence on a closed airstrip. Full throttle accelerations between 50-250 km/h (30-155 mph) carried out in a Porsche 911 Carrera S (450 hp). Hard braking, no cool down in between, just full pull five times. The rear wing was in its upper position all the time.
The test was conducted in the following manner:
Firstly, 5 runs were made with the car equipped with the 992 OE intercoolers. Stop, fast change of parts to the do88 intercoolers. Shakedown for a few minutes and then five runs made in the exact same way as with the OE parts. The decrease in inlet air temperature is significant, peak delta is 9°C (16,2 F). See the graph below!
Cooling is important, and so is airflow. After many hours in the development, refining the end tanks and choosing a core to meet our demand, the result is an intercooler that is much more efficient in terms of heat transfer as well as airflow. Using our in-house flowbench, the Superflow SF-1020 Probench, the airflow is verified for both the do88 intercoolers and the OE 992 units. What you see is what you get – true performance
Please Select which rear bumper your car have. Standard or the Sport Design Package* bumper.
* The Sport Design Package (Equipment codes 2D1,2D4,2D5,VM2,VM3) rear bumper has cooling air outlet in-between the exhaust pipes
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DO88BIG-310
992145805F
992145816
992145817
992145928C
992145928B
992145927C
992145927B
992145737
992145738
992145709
992145708
992145737
992145738
992145727
The product you are viewing cross references to these numbers
Prices from: €5,636.83
