- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) TURBO S 1994-97

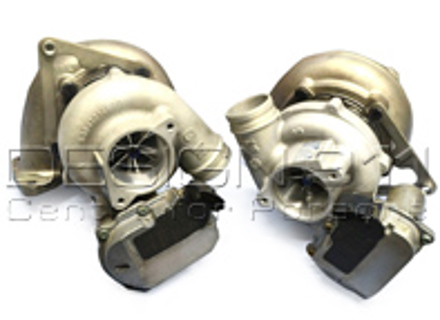

The DesignTek Stage 1 turbocharger upgrade service converts customer-supplied Porsche 993 911 GT2 turbochargers to MD422 & MD423 hybrid specification. No complete replacement turbochargers are included.
How the Service Works
Submit your existing turbochargers for modification. Alternatively, obtain new units independently and arrange their conversion as a separate service; purchasing turbochargers does not include upgrade work.
Fits
- Porsche 993 911 GT2 — application specified for this upgrade service.
- 993 (911) (1994–1998)
- 993 (911) TURBO 1994–96
- 993 (911) TURBO S 1994–97
- Porsche 911 Turbo (993) originally fitted with 5316-970-6736 and 5316-970-6735 turbos.
- Porsche 911 Turbo, engine code M64/60, year &, OEM number 99312301452
Turbo and Turbo S entries describe retained applications, not universal donor-unit suitability for this GT2 conversion. Confirm compatibility of both submitted turbochargers. The M64/60 entry provides no valid application year.
Diagram: 202-16, item 1
What This Product Does
This is a modification service applied to turbochargers supplied by the customer. The specified conversion is MD422 & MD423; it is neither an outright turbocharger pair nor an engine overhaul kit.
Functions
- Converts submitted turbochargers to Stage 1 hybrid specification.
- Accepts existing units or independently purchased new turbochargers, subject to compatibility checks.
Technical Details
- Service specification: Stage 1 hybrid conversion, MD422 & MD423.
- Historical designations MD435 & MD436 are retained for identification only and do not specify this conversion.
- Recorded turbocharger references: 5316-970-6736, 5316-970-6735 and 5316-988-6736.
- Recorded engine code: M64/60.
- Internal assembly information identifies turbocharger 99312301452, note /R.
- Historical output designation: 550-600 bhp. No verified output is established for this GT2 service.
These Hybrid Turbos must be fitted as a pair.
* Please Note: Our hybrid turbochargers require exact engine management settings and/or supporting modifications to achieve these horsepower figures.
The retained horsepower note does not establish an output guarantee for this conversion.
Symptoms of Fault
Investigate unusual whining, exhaust smoke, increased oil consumption, delayed boost delivery or oil leakage before submitting units. These symptoms alone do not establish that turbocharger modification is appropriate.
Why Replacement Matters
An upgrade cannot correct an unresolved mechanical defect. Assess engine condition, oil supply, boost pipework and seals first, and review the engine-management requirements alongside any supporting modifications.
FAQs
Are complete turbochargers included?
No. You supply the units that undergo conversion.
Can newly purchased units be submitted?
Yes, subject to compatibility. Obtain them independently and arrange modification separately.
Which specification is requested?
MD422 & MD423. The historical MD435 & MD436 designations do not define this service.
Before ordering, confirm suitability against your vehicle's model, production year and engine specification.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
MD422MD423
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
- Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
- Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
Fits:
Porsche 9YA Cayenne 4.0L Turbo S E-Hybrid AWD (9YACH1) 06.2021>>
Porsche 9YA Cayenne 4.0L Turbo AWD (9YACF1) 05.2017>>
Porsche 9YA Cayenne 4.0L GTS (9YABG1) 06.2020>>
Porsche 9YB Cayenne 4.0L Turbo S E-Hybrid AWD (9YBCH1) 10.2019>>
Porsche 9YB Cayenne 4.0L Turbo AWD (9YBCF1) 01.2019>>
Porsche 9YB Cayenne 4.0L GTS AWD (9YBBG1) 08.2020>>
Porsche 9YB Cayenne 4.0L Turbo S E-Hybrid AWD (9YACH1) 06.2021>>
Porsche 9YB Cayenne 4.0L Turbo AWD (9YACF1) 05.2017>>
Porsche 9YB Cayenne 4.0L GTS (9YABG1) 08.2020>>
Click 'Zoom in' for large parts diagram.
Diagram ref no 22
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A725311500
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
- Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
- Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
- Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
- Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo GT V8 4.0L (640Hp) 2021-23
Fits:
Porsche 9YA Cayenne 4.0ltr V8 turbo / turbo S - 2018 Onwards
Porsche 9YA Cayenne 4.0ltr V8 GTS - 2018 Onwards
The Cayenne turbo / GTS 4.0ltr Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilising all factory mounting points, the installation is straightforward with a “drop-in fit” design. No cutting or modifications are required and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
The Thermal Dispersion Black finish is used to aid further the cooling efficiency of these Intercoolers and they are then sent to a special aerospace company where this special ceramic coating is applied. This unique coating rapidly disperses heat away from the intercoolers at an increased rate of about 15% compared to non-coated parts. In addition, this special coating gives the intercoolers a durable OEM stealth look behind the open front bumper air inlets.
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. It has been stated that the OEM O-Rings may be a factory design flaw as these can fail. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle. These O-Rings have been known to already started showing signs of failure with only a few thousand miles on the odometer.
As with CSF’s other products the new Cayenne turbo / GTS Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This is a very important upgrade compared to the OEM crimped plastic composite end tanks and this feature is not only aesthetically pleasing, but is also stronger offering longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.
- Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race ConditionsFormula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
- CNC Machined Billet End Tanks
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Made in the USA at PWR North America
- Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
- OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
- Finished in CSF’s Thermal Dispersion Cerakote (CSF #8211)
- Raw Finish with no coating for the “show” look or custom finishes available upon request (CSF #8211R)
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- R&D and Performance Testing by Pacific German & VF Engineering
- 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
OEM Part Numbers:
PAB145803B / PAB145804B
PAB145803E / PAB145804D
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8211
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
- Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
- Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
- Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
- Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo GT V8 4.0L (640Hp) 2021-23
Fits:
Porsche 9YA Cayenne 4.0ltr V8 turbo / turbo S - 2018 Onwards
Porsche 9YA Cayenne 4.0ltr V8 GTS - 2018 Onwards
The Cayenne turbo / GTS 4.0ltr Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilising all factory mounting points, the installation is straightforward with a “drop-in fit” design. No cutting or modifications are required and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. It has been stated that the OEM O-Rings may be a factory design flaw as these can fail. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle. These O-Rings have been known to already started showing signs of failure with only a few thousand miles on the odometer.
As with CSF’s other products the new Cayenne turbo / GTS Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This is a very important upgrade compared to the OEM crimped plastic composite end tanks and this feature is not only aesthetically pleasing, but is also stronger offering longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.
- Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race ConditionsFormula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
- CNC Machined Billet End Tanks
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Made in the USA at PWR North America
- Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
- OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
- CSF’s Thermal Dispersion Cerakote available (CSF #8211)
- Raw Finish with no coating for the “show” look (CSF #8211R)
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- R&D and Performance Testing by Pacific German & VF Engineering
- 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
OEM Part Numbers:
PAB145803B / PAB145804B
PAB145803E / PAB145804D
