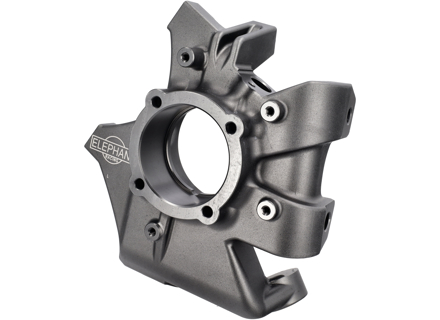

Wheel hub carrier, Front. Porsche 964 / 993 - 239000
239000
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Information
Elephant Racing 993 RS Uprights.
Fits:
Porsche 964 / 993 1989-98
Use With RS/GT2 Type Tie Rods
Special front uprights (wheel carriers) were equipped on the 993 RS and cup cars, correctly called RS uprights but sometimes called GT2 uprights or EVO uprights. The reason for RS uprights is to correct undesired geometry changes caused by running a lower ride height.
RS upright advantages include improved suspension travel, superior camber gain, and reduced bump steer. The result is superior performance and ride quality.
RS uprights are an awesome upgrade for any lowered 993 or 964 including C2, C4 and Turbo.
Available Now!
Elephant Racing designed RS uprights faithfully reproduce the factory RS geometry. They are made of aircraft grade 7075 aluminum billet for superior strength. They are a direct replacement for the factory 993 RS uprights.
They accept standard 993 front wheel bearings and cover plates. GT2 type tie rods are required.
993 RS Upright vs Standard Upright Differences. There are three basic differences between RS uprights and standard uprights:
• The wheel bearing has been moved up about 30mm relative to the ball joint
• The steering knuckle is relocated and has inverted mounting of the tie rod
• RS uprights are aluminium as are standard 993 uprights. 964 standard uprights are steel.
993 RS Upright Geometry Correction. Lowering a 993 with stock uprights causes several undesired geometry changes, all of which are corrected by the RS uprights.
RS uprights improve camber gain. The lower control arm angles up at the ball joint end, putting the suspension in a poor point on the camber curve. RS uprights angle the lower control arm back down, thus enhancing camber gain and ride quality.
RS uprights improve suspension travel. Lowering the car compresses the front strut and reduces available suspension travel. The result is premature bottoming out, poor handling and ride quality caused by contact with the bump stop – which creates an abrupt and unsettling rise in spring rate at that corner that unsettles the car. RS uprights put back suspension travel.
RS uprights reduce bump steer. Lowering the car moves the stock tie rod into an unfavourable position on the bump steer curve, make the car a handful to drive over uneven surfaces and requiring frequent adjustments at the steering wheel to maintain a steady trajectory. RS uprights relocate the tie rod end placing bump steer in a favourable position on the curve at lowered ride height.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
239000
The product you are viewing cross references to these numbers
Fits:
Porsche 964 / 993 1989-98
Use With RS/GT2 Type Tie Rods
Special front uprights (wheel carriers) were equipped on the 993 RS and cup cars, correctly called RS uprights but sometimes called GT2 uprights or EVO uprights. The reason for RS uprights is to correct undesired geometry changes caused by running a lower ride height.
RS upright advantages include improved suspension travel, superior camber gain, and reduced bump steer. The result is superior performance and ride quality.
RS uprights are an awesome upgrade for any lowered 993 or 964 including C2, C4 and Turbo.
Available Now!
Elephant Racing designed RS uprights faithfully reproduce the factory RS geometry. They are made of aircraft grade 7075 aluminum billet for superior strength. They are a direct replacement for the factory 993 RS uprights.
They accept standard 993 front wheel bearings and cover plates. GT2 type tie rods are required.
993 RS Upright vs Standard Upright Differences. There are three basic differences between RS uprights and standard uprights:
• The wheel bearing has been moved up about 30mm relative to the ball joint
• The steering knuckle is relocated and has inverted mounting of the tie rod
• RS uprights are aluminium as are standard 993 uprights. 964 standard uprights are steel.
993 RS Upright Geometry Correction. Lowering a 993 with stock uprights causes several undesired geometry changes, all of which are corrected by the RS uprights.
RS uprights improve camber gain. The lower control arm angles up at the ball joint end, putting the suspension in a poor point on the camber curve. RS uprights angle the lower control arm back down, thus enhancing camber gain and ride quality.
RS uprights improve suspension travel. Lowering the car compresses the front strut and reduces available suspension travel. The result is premature bottoming out, poor handling and ride quality caused by contact with the bump stop – which creates an abrupt and unsettling rise in spring rate at that corner that unsettles the car. RS uprights put back suspension travel.
RS uprights reduce bump steer. Lowering the car moves the stock tie rod into an unfavourable position on the bump steer curve, make the car a handful to drive over uneven surfaces and requiring frequent adjustments at the steering wheel to maintain a steady trajectory. RS uprights relocate the tie rod end placing bump steer in a favourable position on the curve at lowered ride height.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
239000
99334115881
99334115781
2390000
2390001
99334115702
99334115703
99334115802
99334115803
96434165519
96434165619
The product you are viewing cross references to these numbers
Prices from: €1,696.50
Related products
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
Information
Replacement press in Wheel Hub Studs 72MM
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99334167170
The product you are viewing cross references to these numbers
Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 944 1982-91
Porsche 968 1992-95
Porsche 928 1978-95
Porsche 924 1977-88
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99334167170
99333167102
90133167101
91133167100
901331671
PCG33167100
33167100
90134167105
The product you are viewing cross references to these numbers
€9.36
Now €8.42
In stock
Vehicle Group
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
Information
Front wheel hub end cap.
Fits:
Porsche 911 1974-80
Porsche 911 1981-89 (Not for Turbo or Turbo-Look M491)
Porsche 911 (930) TURBO 1975-80
Porsche 928 1978-91
Click 'Zoom in' for large parts diagram.
Diagram ref no 33
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91134168400
The product you are viewing cross references to these numbers
Fits:
Porsche 911 1974-80
Porsche 911 1981-89 (Not for Turbo or Turbo-Look M491)
Porsche 911 (930) TURBO 1975-80
Porsche 928 1978-91
Click 'Zoom in' for large parts diagram.
Diagram ref no 33
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91134168400
91134168400
The product you are viewing cross references to these numbers
Price: €55.29
Orderable
Information
Eccentric washer for alignment
for Porsche Boxster / Cayman / 911 / Panamera / Taycan
Sold each.
Fits:
Porsche 911 (993 / 996 / 997 / 991 / 992)
Porsche Boxster (986 / 987 / 981)
Porsche Cayman (987 / 981 / 718)
Porsche Panamera (970)
Porsche Taycan
Alignment eccentric washer, also referred to as a cam adjust arm or control arm adjust cam, is used in the rear suspension of certain Porsche 911, Boxster, Cayman and Panamera models.
Position on Vehicle: Rear suspension — at the rear control arm or track rod mounting point, typically used to adjust alignment of the wheel carrier, track bar or control arm.
Applications: Ideal for when original eccentric bolts or washers are worn, alignment cannot be set correctly, or when replacing control arms/track rods and correct alignment geometry is required.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PAF007648
The product you are viewing cross references to these numbers
for Porsche Boxster / Cayman / 911 / Panamera / Taycan
Sold each.
Fits:
Porsche 911 (993 / 996 / 997 / 991 / 992)
Porsche Boxster (986 / 987 / 981)
Porsche Cayman (987 / 981 / 718)
Porsche Panamera (970)
Porsche Taycan
Alignment eccentric washer, also referred to as a cam adjust arm or control arm adjust cam, is used in the rear suspension of certain Porsche 911, Boxster, Cayman and Panamera models.
Position on Vehicle: Rear suspension — at the rear control arm or track rod mounting point, typically used to adjust alignment of the wheel carrier, track bar or control arm.
Applications: Ideal for when original eccentric bolts or washers are worn, alignment cannot be set correctly, or when replacing control arms/track rods and correct alignment geometry is required.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PAF007648
99633121900
PAF007648
The product you are viewing cross references to these numbers
Price: €11.21
In stock
