- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
- Porsche 958 Cayenne V6 3.0L Diesel (245Hp) 2010-17
Fits:
Porsche 955 Cayenne 3.2L 2003-06
Porsche 957 Cayenne 3.6L 2007-10
Porsche 957 Cayenne 3.0L DIESEL 2007-10
Porsche 958 Cayenne 3.6L >>2014
Porsche 958 Cayenne 3.0L DIESEL >>2014

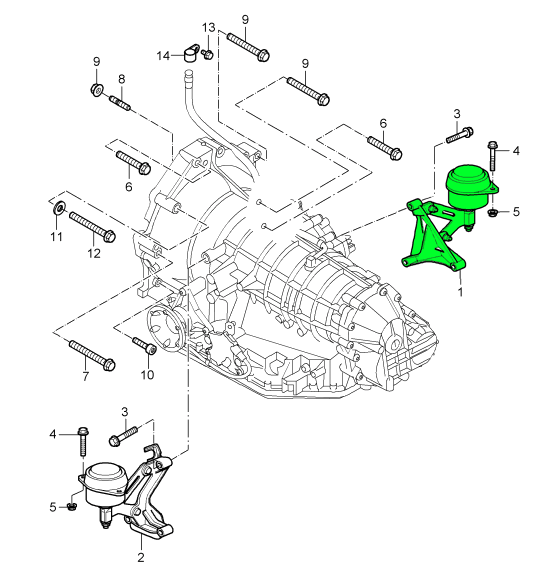

Click 'Zoom in' for large parts diagram.
Diagram ref no 2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95537505720
The product you are viewing cross references to these numbers
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne S V8 4.2L Diesel (382Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
Fits:
Porsche 955 Cayenne 4.5L V8 2003-06
Porsche 955 Cayenne 4.5L V8 TURBO 2003-06
Porsche 957 Cayenne 4.8L V8 2007-10
Porsche 957 Cayenne 4.8L V8 TURBO 2007-10
Porsche 958 Cayenne 4.8L DFI 2011>> (IE0A - basic equipment)
Porsche 958 Cayenne 4.8L TURBO 2011>>
Porsche 958 Cayenne 3.0L HYBRID >>2014
Porsche 958 Cayenne 4.2L TDI >>2014

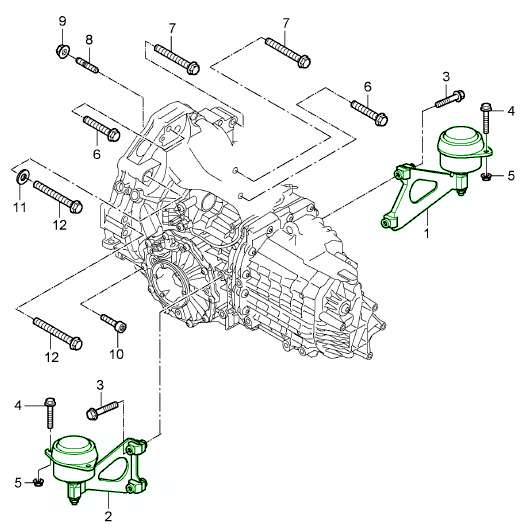

Click 'Zoom in' for large parts diagram.
Diagram ref no 2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95537505730
The product you are viewing cross references to these numbers
- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
- Porsche 958 Cayenne V6 3.0L Diesel (245Hp) 2010-17
This OE Match gearbox rubber mount is suitable for selected Porsche Cayenne models. It supports the transmission assembly while helping to isolate drivetrain vibration and control movement under changing loads.
Fits
- Porsche 955 Cayenne 3.2L 2003-06
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne 3.0L DIESEL 2007-10
- Porsche 958 Cayenne 3.6L >>2014
- Porsche 958 Cayenne 3.0L DIESEL >>2014
Check fitment for your specific vehicle, including its model, year, engine and transmission specification, before ordering.
What This Product Does
The gearbox mount connects the transmission assembly to its supporting structure and uses a rubber element to absorb vibration. It also limits excessive gearbox movement, helping to maintain the intended alignment of the transmission and surrounding drivetrain components.
Functions
- Supports the gearbox and transmission assembly
- Helps isolate drivetrain vibration from the body
- Controls transmission movement during acceleration and deceleration
- Supports the alignment of associated drivetrain components
- Reduces movement that may place additional load on brackets and fixings
Technical Details
- Component type: rubber gearbox or transmission mounting
- 955 application: PR code D9J, diagram 307-00, item 3
- 957 applications: PR code D5X at item 4 and PR code D50 at item 5, diagram 307-000
- 958 applications up to model year 2014: PR codes D50, D43 and D1V at item 22; PR code D34 at item 24
- Listed applications include 3.2L V6, 3.6L petrol and 3.0L Diesel Cayenne models
Symptoms of Fault
- Clunking when taking up drive or changing load
- Increased vibration through the cabin
- Excessive movement of the gearbox or drivetrain
- Less precise shifting or changes in transmission feel
- Cracked, compressed or deteriorated rubber around the mounting
- Noise caused by contact between drivetrain and supporting components
Why Replacement Matters
An aged or damaged Porsche Cayenne transmission mount may no longer control movement or isolate vibration effectively. Replacing a worn mount can restore correct gearbox support and prevent unnecessary movement from placing additional stress on nearby brackets, fixings and driveline parts. Other mounts and supporting components should be inspected during the repair, as wear elsewhere can produce similar symptoms.
FAQs
- Can a worn mount feel like a gearbox fault?
Yes. Movement, vibration and clunking from a deteriorated mount can make an otherwise serviceable gearbox feel rough. The drivetrain should be inspected before internal transmission repairs are considered. - Will this mount fit every 955, 957 or 958 Cayenne?
No. Suitability depends on the engine, model year and transmission PR code. Cross-check part number 95537505720 and the vehicle specification. - Should related mounts be inspected?
Yes. Checking the remaining engine and transmission mounts can help identify uneven support or additional deterioration. - Does a new mount repair gear crunching?
Not normally. Gear crunching is more commonly associated with clutch, selector or internal transmission wear, although replacing a failed mount may improve general drivetrain stability.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95537505720
The product you are viewing cross references to these numbers
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne S V8 4.2L Diesel (382Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
The OE Match gearbox rubber mount is intended for specified Porsche Cayenne applications from 2003–17. It supports the transmission assembly while helping isolate normal drivetrain movement and vibration from the chassis.
Fits
- Porsche 955 Cayenne 4.5L V8 2003-06
- Porsche 955 Cayenne 4.5L V8 TURBO 2003-06
- 955 Cayenne Turbo S 4.5L 2006>>
- Porsche 957 Cayenne 4.8L V8 2007-10
- Porsche 957 Cayenne 4.8L V8 TURBO 2007-10
- 957 Cayenne S / GTS 4.8L 2007–10
- 957 Cayenne Turbo / Turbo S 4.8L 2007–10
- Porsche 958 Cayenne 4.8L DFI 2011>> (IE0A - basic equipment)
- Porsche 958 Cayenne 4.8L TURBO 2011>>
- Porsche 958 Cayenne 3.0L HYBRID >>2014
- Porsche 958 Cayenne 4.2L TDI >>2014
- 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010–17
- 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010–17
Diagram ref no 2
What This Product Does
This rubber mounting forms part of the Cayenne transmission suspension assembly. It secures and supports the gearbox, maintains its intended position relative to the chassis and absorbs a proportion of the vibration and torque movement generated by the drivetrain.
Functions
- Supports the gearbox within the transmission carrier assembly
- Helps maintain drivetrain and transmission alignment
- Isolates normal gearbox vibration from the vehicle structure
- Controls excessive transmission movement during load changes
- Reduces stress transferred to adjoining brackets and mountings
Symptoms of Fault
- Clunking as drive is taken up or during changes in load
- Increased vibration transmitted through the cabin
- Excessive movement of the gearbox or transmission assembly
- Less precise shifting or a change in drivetrain feel
- Cracked, softened or visibly collapsed mounting rubber
- Noise caused by movement placing adjoining components under stress
Why Replacement Matters
An aged or damaged mounting may allow more drivetrain movement than intended, making a correctly operating gearbox feel rough or imprecise. Replacement can restore the intended support and vibration isolation while helping protect nearby carriers, brackets and driveline components. Inspect the surrounding hardware and other mountings during installation, as wear elsewhere can produce similar symptoms.
FAQs
- Can a worn mount cause gearbox noise?
It can cause clunks or vibration by allowing excessive movement, although internal gearbox wear, the transfer case and other drivetrain parts should also be checked. - Will this mount repair gear crunching?
No. Gear crunching is more commonly associated with internal transmission, clutch or selector faults, but a worn mount can affect overall drivetrain feel. - Should compatibility be checked by part number?
Yes. Compare 95537505730 with the existing component and confirm the vehicle model, year, engine and relevant PR codes. - Should other mounts be inspected?
Yes. Checking adjoining transmission and engine mountings helps identify uneven support or additional age-related deterioration.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95537505730
The product you are viewing cross references to these numbers
