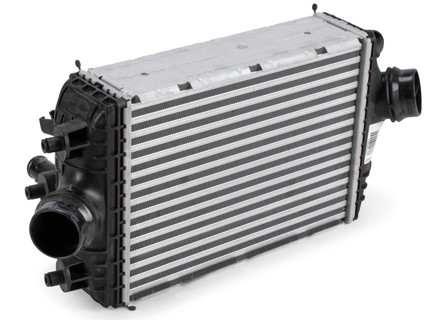

- Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560Bhp) 2014-16
Fits:
Porsche 991 Turbo
Porsche 991 Turbo S
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9911106
The product you are viewing cross references to these numbers
- Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560Bhp) 2014-16
- Porsche 991.2 Turbo Coupe 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Coupe 3.8L (580 Bhp) 2016-19
- Porsche 991.2 Turbo Cabriolet 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Cabriolet 3.8L (580 Bhp) 2016-19
DesignTek Porsche intercoolers produces high-flow rate and dramatic temperature reduction which are mainly contributed by two key factors. Firstly, the great temperature reduction is accomplished by a 40% larger than stock sized intercooler cores in which each core has the capacity flow rate of 750 CFM. Secondly, which in our opinion is the most important element of an IC; the inlet/outlet end-tanks. Our end-tanks are a one piece cast aluminium construction design, formed with little to no corners and are also fully polished on the insides to increase air velocity; therefore minimizes welding points and greatly increases air flow and reduction in pressure drop which yields to improved efficiency. Also please note that all of our intercoolers come only in high polished finished for that uncompromised appearance.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99111063055
The product you are viewing cross references to these numbers
- Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560Bhp) 2014-16
- Porsche 991.2 Turbo Coupe 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Coupe 3.8L (580 Bhp) 2016-19
- Porsche 991.2 Turbo Cabriolet 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Cabriolet 3.8L (580 Bhp) 2016-19
Racing and high performance intercoolers for all Porsche models make a great performance upgrade as well as an incredibly durable and reliable OE replacement.
Fits:
Porsche 991.1 / 991.2 (911) Turbo / Turbo S 2013 - 2019
Cross reference numbers
99111064073, 99111063973
CSF Cooling is proud to announce the official public release of its Porsche 991 Turbo & Turbo S high performance intercoolers for both 991.1 & 991.2 models.
CSF's Porsche 991 Turbo intercoolers have been race-tested, logged, and fully validated by some of the world's best Porsche tuners. These intercoolers have been regarded as the "Go-To" option for the best performance and value available in the performance aftermarket.
SPECIFICATIONS
• CFD tested (Computational Fluid Dynamics) cast end tanks with several post machining processes for the absolute best tolerance specifications and maximum airflow distribution throughout the core.
• All OEM mounting points are retained with the OEM clip-in hardware design. Utilizing factory hardware, for an OEM-level installation. (CSF Exclusive)
• OEM style "Quick-Connect" machined fittings for precise fitment, lock and seal.
• Finished with an aerospace grade, nano-particle, heat dispersion coating that dissipates heat ~35% better than uncoated raw aluminum. (~ $500.00 value)
• "Drop-in fitment", no modifications or grinding to metal brackets, etc.
• (Requires slight trimming to the plastic intercooler shrouds)
• Individually leak / pressure tested to 120 PSI
• Individually inspected for quality control
• Instruction manual included CLICK HERE TO DOWNLOAD
• Specifically cut foam protective packaging to ensure damage free shipment
• Manufactured completely in house by CSF; a tier 1 OEM manufacturer with over 50 years of cooling system manufacturing experience. Over 500,000 units sold every year and over 40 million units sold globally.
CORE DESIGN
• 8mm fin height louvered external fin with 6.5mm fin height staggered internal fin. Designed to maximize surface area contact and heat dissipation.
• Wind tunnel optimized and dyno tested for low pressure drop with best performance
• CSF's "Ultimate-Boost" High-performance bar / plate core. Built in house and pressure tested to 120 PSI
• 4.53-inch thick core compared to OEM's 3.15-inch core (115mm vs 80mm)
• Increased flow area by 43.75%
• Increased surface area by 70% (8.5m^2 vs. 5.0m^2)
• Built in-house by CSF (Only high-performance company to manufacture their own intercooler cores)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8112
The product you are viewing cross references to these numbers
- Porsche 991.1 Turbo 3.8L (520bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560Bhp) 2014-16
- Porsche 991.2 Turbo Coupe 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Coupe 3.8L (580 Bhp) 2016-19
- Porsche 991.2 Turbo Cabriolet 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Cabriolet 3.8L (580 Bhp) 2016-19
To Fit:
Porsche 991 Turbo and Turbo S 2013 onwards
A true performance upgrade intercooler for the 991 Turbo / Turbo S
This is the most refined of all products we carry today!
• Significantly improved Air flow! (see graph images).
• Cooler air to your engine!
• High quality high density UK made motorsport cores.
• 3D freeform designed cast end tanks
• Custom designed carbon fiber ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
From do88: Right from the beginning we realised that we could not sacrifice anything to keep the cost down we just had to do the best possible in the space available in the car!
First of all we made a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which have great cooling efficiency along with a low weight.
With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency.
To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment to ensure perfect fit to the vehicle integrated air guides and our intercooler.
To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to design custom silicone hoses for all positions. The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature!
Another important aspect for cooling performance are to use all ambient cooling air available, to optimize this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
Using this design in building our intercoolers the weight increase compared to the OEM ones is relatively small considering the size of our intercooler and that its all made of aluminium. Our intercooler weight is 5,4 kg (11,9 lb) per piece and the 991 OEM intercooler weights 3,1 kg (6,8 lb) per piece. It might sound like a big weight increase but compared to other actors on the market with intercoolers in this size it's a low weight!
At the same time as our intercoolers lower the intake temperature, they also flow better than the 991 original intercoolers! Please have a look at the air flow rates at different pressure drops in the graph below where we compared our intercooler with hoses to the original intercooler with hoses in our own Superflow SF-1020 Probench to verify the final result!
Keep in mind that the OEM intercoolers was designed for only the power level the car was built for originally. A power increase may cause your stock intercoolers to not be efficient enough. So even on an engine with a software tune only or using your car in hot climate the do88 performance intercooler kit will give a performance increase over the OEM intercoolers!
This do88 performance intercooler kit comes as a complete package with all parts necessary for installation.
Please Note! Some modifications need to be done when installing this intercooler kit, please read step 29,31 & 35 in the installation guide before placing order.
Installation Instruction
For maximum performance, and easier installation, this kit can be combined with our do88 inlet hoses!
Included parts in this kit:
• Performance intercoolers
• Carbon fiber air guides
• Silicone hoses Hose clamps
• Rubber seals
• Installation hardware
When you order this kit, there is one choice that has to be made: Y-Pipe: Please Select which Y-Pipe you have on your car. OEM or do88 Performance.
Equivalent Porsche OEM part numbers 99111063972, 99111063973, 99111064072, 99111064073 (for cross reference only)
