- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)

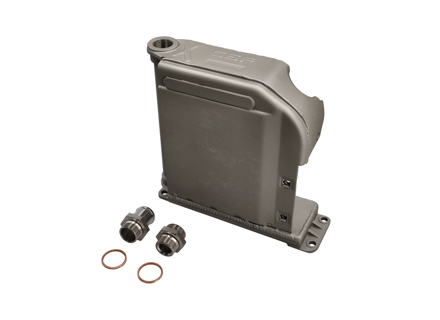

OEM+ / High-Performance recreation of the original Behr Oil Cooler
CNC Machined mounting plate with helix design for strength and pocketed for weight savings
Modern Tube & Fin core with lower pressure drop and higher heat dissipation than the original
Stainless Steel Fittings for late model slip-on style (72-89) and early threaded style (65-71) with upgraded M30 “Widemouth” Design for improved flow
All OEM Behr features replicated on the billet mounting plate and cooler case
Comes standard with modern Cerakote titanium finish (additional heat dissipation) – modern interpretation of the OEM Behr finish
Optimized ID and flow characteristics of oil pipe for maximum oil flow through the vehicle’s oil system
Complete drop-in fit, absolutely no modifications to install
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Diagram Ref No 8
After 2+ years of development and 4 rounds of prototypes, the world debut of the CSF Porsche 911/930 Engine Oil Cooler at Rennsport Reunion 2023 was met with resounding enthusiasm. Air-cooled enthusiasts know the struggles associated with the oil cooler located on the engine block of the old flat six motor. CSF’s highly anticipated new release is arguably the most important modern engine upgrade to be released for the 911 in years.
While the original design was effective at the time, they have not aged well. On top of that, there have been no updates to the design and original replacement units can be hard to come by. When the CSF 911 was being built, CSF realized this was a much needed part for the air-cooled community and set out to design something special.
The old original coolers aren’t the only issue though. CSF has gotten many first hand reports of brand new OE coolers from Porsche’s revamped “Porsche Classic” Catalogue leaking within a few months of installation. Apparently the new items available from Porsche are not built as well as the original Behr coolers. CSF has now brought to market a modern OEM+ solution to this vintage design.
The high-performance core uses 7 cooling tubes with 8 rows of fins. Between the ultra efficient fin design and high flow tubes, the CSF cooler is ~10% more efficient than a brand new OE unit and up to 25% more efficient than a used unit.
Because the base plate of the cooler is also a common problem area, CSF sought to improve this area as much as possible. Instead of the original cast design, the CSF cooler uses a CNC machined billet aluminum plate. This offers a perfectly flat mounting surface which is both stronger and more resistant to warping over time. You’ll also notice a special helix design which adds strength while keeping weight at a minimum.
Each unit is Individually Leak and Pressure Tested with a 10 year warranty
New OEM coolers from Porsche are extremely scarce/hard to source and cost $1,300+
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91110704102
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
The OE Match Front Oil Cooler Oil Pipe is a high-quality replacement lubrication system component designed to transfer engine oil between the oil cooling system and the engine on compatible Porsche models. Manufactured to OE specifications for fit, flow capacity and durability, this oil pipe ensures efficient oil circulation while maintaining the correct operating temperature of the engine.
Fits:
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Diagram Ref No 16
Constructed from high-quality corrosion-resistant metal tubing with precision-formed bends and OE-style threaded connections, the oil pipe is engineered to withstand high oil pressures, elevated temperatures and continuous engine vibration. Designed to provide a secure, leak-free connection, it plays a vital role in the performance and longevity of Porsche's engine lubrication and oil cooling system.
What This Product Does:
- Transfers engine oil to and from the front oil cooler.
- Maintains efficient oil circulation throughout the lubrication system.
- Supports effective engine oil cooling.
- Helps regulate engine operating temperature.
- Delivers a consistent supply of lubricating oil under pressure.
- Provides secure, leak-free oil transfer between components.
- Helps protect internal engine components from excessive wear.
- Forms an essential part of the engine's oil cooling and lubrication system.
Symptoms Of Wear Or Failure:
- Visible engine oil leaks.
- Oil residue around the oil pipe or fittings.
- Low engine oil level.
- Oil pressure warning light.
- Oil smell from the engine bay or underneath the vehicle.
- Corrosion or rust on the oil pipe.
- Cracked or damaged pipe connections.
- Increased engine operating temperatures.
- Reduced oil circulation.
- Premature engine wear caused by lubrication loss.
Why Replacement Matters:
- The front oil cooler oil pipe is continuously exposed to hot engine oil, high operating pressures, vibration, road debris and environmental corrosion. Over time, the pipe can deteriorate through corrosion, impact damage or fatigue, while threaded connections and sealing surfaces may begin to leak.
- A leaking or restricted oil pipe can reduce oil pressure and compromise the engine's lubrication and cooling efficiency. Continued operation with insufficient oil flow can accelerate wear of bearings, camshafts and other critical engine components, potentially leading to severe engine damage and costly repairs.
- Replacing a worn or damaged front oil cooler oil pipe restores reliable oil circulation and ensures the engine's lubrication and cooling systems continue to operate efficiently. The OE Match replacement provides factory-style fitment, robust construction and dependable long-term sealing performance, helping maintain the reliability, performance and longevity expected from your Porsche.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90110736111
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Fits:
Porsche 911 1965-71
This part number has been superseded from previous numbers:
- 90110736400
- 90110736402
Click 'Zoom in' for large parts diagram.
Diagram ref No 15.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90110736403
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
The OE Match Radiator Engine Oil Cooler with Screw Socket is a premium-quality replacement engine oil cooler designed to regulate engine oil temperature on compatible Porsche models. Manufactured to OE specifications for fit, cooling efficiency and durability, this oil cooler helps maintain optimum oil temperatures by dissipating excess heat, ensuring consistent lubrication and protecting critical engine components under all driving conditions.
Fits:
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Diagram Ref No 8
Manufactured from high-quality aluminium with precision-engineered cooling fins and an integrated screw socket connection, the oil cooler is designed to provide excellent heat transfer while withstanding high oil pressures, thermal cycling and engine vibration. Its direct OE-style fitment ensures straightforward installation and reliable, leak-free operation, making it ideal for both routine maintenance and engine restoration projects.
What This Product Does:
- Dissipates heat from the engine oil.
- Maintains optimum engine oil operating temperature.
- Helps preserve correct oil viscosity.
- Protects internal engine components from excessive heat.
- Supports efficient engine lubrication.
- Improves engine reliability during normal and high-performance driving.
- Provides secure oil connections via the integrated screw socket.
- Forms an essential part of the engine lubrication and cooling system.
Symptoms Of Wear Or Failure:
- Engine oil leaks around the cooler or connections.
- Visible corrosion or physical damage to the cooler.
- Elevated engine oil temperatures.
- Engine overheating under load.
- Oil residue around the oil cooler assembly.
- Reduced engine performance due to excessive oil temperatures.
- Low engine oil level caused by leaks.
- Contaminated cooling fins restricting airflow.
- Oil pressure fluctuations caused by oil loss.
- Premature engine wear due to inadequate oil cooling.
Why Replacement Matters:
- The engine oil cooler is continuously exposed to high oil pressures, extreme temperatures, road debris and environmental contaminants. Over time, corrosion, blocked cooling fins or internal deterioration can reduce its cooling efficiency or result in oil leaks.
- A leaking or inefficient oil cooler can cause engine oil temperatures to rise, reducing lubrication performance and increasing wear on bearings, pistons, camshafts and other critical engine components. Continued operation with overheated or leaking engine oil can lead to accelerated engine wear and potentially costly mechanical damage.
- Replacing a worn or damaged engine oil cooler restores efficient oil cooling and reliable lubrication performance. The OE Match replacement provides factory-style fitment, high-quality aluminium construction, integrated screw socket connections and long-lasting durability, helping maintain engine protection, performance and reliability throughout the life of your Porsche.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90110704103
The product you are viewing cross references to these numbers
