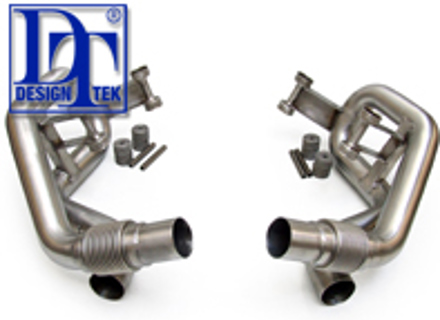

Secondary Exhaust Muffler Bypass DesignTek for Porsche 991 S 3.8L - 3606009913
3606009913
Vehicle Group
- Porsche 991 Carrera C2S 3.8L (400Bhp)
- Porsche 991 Carrera C4S 3.8L (400Bhp)
Information
DesignTek Secondary Exhaust Muffler Bypass for Porsche 991 S 3.8L
Fits:
Porsche 991 Carrera S 3.8L
These simple U/J pipes remove the mufflers that are tucked up in the rear quarter panels. Why the reason for these I do not know. Typically in the past we either see a main centre muffler or 2 mufflers with catalyst pipes. So this was the first simplest part to change out. Keeping the same diameter for a perfect OEM replacement, these pipes are straight through which not only eliminates any muffler packing or baffling, but also the weight. Each stock muffler weighs approximately 15.6lbs. The Designtek Secondary Exhaust Muffler Bypass Pipes are about 3lbs each. Now eliminating restriction, we have also saved about 25lbs off the rear end. Because this part still retained the factory headers with cats and the factory center muffler, it added a slightly deeper tone to the exhaust but not a drastic droning change that a full exhaust could. Upon revving the car out stationary and on the dyno, you could hear the tone change nicely as you past the 4000rpm mark.
Garage Notes: The pipes sometimes rub on the heatshields causing a resonation through the car. This can be sorted by redressing the heatshields but isn't a straight forward bolt up and go replacement.
The sound its self is quite impressive and very sporty from the outside but to drive causes a pretty bad droning sound under normal driving conditions. This exhaust peaks at 101decibels
According to the factories dyno test, the secondary muffler bypass pipes really start achieving performance from 3700rpm all the way to redline. With a baseline test in 3rd gear and all wheel drive (have to for the dyno and no warning lights), the car made 344HP and 289ft/lbs of torque. Based on the ambient temperature, the factories Mustang Dyno, and 91octane fuel, this is about right considering the car comes with 400bhp. With the addition of our pipes, the car put down 358HP and 298ft/lbs of torque gaining 14HP and 9ft/lbs at the peak.
Click 'Zoom in' for large parts diagram.
3606009913 replace No11/12.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3606009913
The product you are viewing cross references to these numbers
Fits:
Porsche 991 Carrera S 3.8L
These simple U/J pipes remove the mufflers that are tucked up in the rear quarter panels. Why the reason for these I do not know. Typically in the past we either see a main centre muffler or 2 mufflers with catalyst pipes. So this was the first simplest part to change out. Keeping the same diameter for a perfect OEM replacement, these pipes are straight through which not only eliminates any muffler packing or baffling, but also the weight. Each stock muffler weighs approximately 15.6lbs. The Designtek Secondary Exhaust Muffler Bypass Pipes are about 3lbs each. Now eliminating restriction, we have also saved about 25lbs off the rear end. Because this part still retained the factory headers with cats and the factory center muffler, it added a slightly deeper tone to the exhaust but not a drastic droning change that a full exhaust could. Upon revving the car out stationary and on the dyno, you could hear the tone change nicely as you past the 4000rpm mark.
Garage Notes: The pipes sometimes rub on the heatshields causing a resonation through the car. This can be sorted by redressing the heatshields but isn't a straight forward bolt up and go replacement.
The sound its self is quite impressive and very sporty from the outside but to drive causes a pretty bad droning sound under normal driving conditions. This exhaust peaks at 101decibels
According to the factories dyno test, the secondary muffler bypass pipes really start achieving performance from 3700rpm all the way to redline. With a baseline test in 3rd gear and all wheel drive (have to for the dyno and no warning lights), the car made 344HP and 289ft/lbs of torque. Based on the ambient temperature, the factories Mustang Dyno, and 91octane fuel, this is about right considering the car comes with 400bhp. With the addition of our pipes, the car put down 358HP and 298ft/lbs of torque gaining 14HP and 9ft/lbs at the peak.
Click 'Zoom in' for large parts diagram.
3606009913 replace No11/12.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3606009913
175909-01
99111132101
99111132103
99111132102
99111132501
99111132502
99111132503
99111132201
99111132203
99111132601
99111132602
99111132603
The product you are viewing cross references to these numbers
£350.00
Now £332.50
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
