Titanium Brake Pad Heat Shields Size: E2405/T5104. Porsche 986/987 Boxster / 987C Cayman / 996 / 997 (OE Part No 99635294903 / 99735193904) - TS-917-4
TS-917-4
Vehicle Group
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
Information

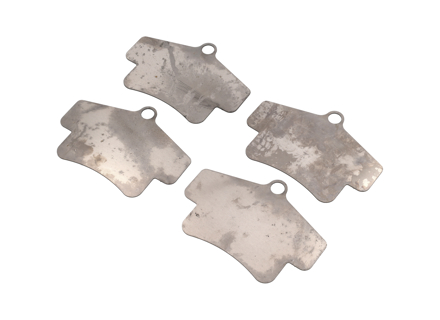

Titanium Brake Pad Heat Shields.
This Product Fits:
Porsche 986 Boxster S 3.2 99-05 Front
Porsche 987 Boxster S 3.2 05>> Front
Porsche 987C Cayman 06>> Front
Porsche 996 3.4/3.6 97-05 Front
Porsche 997 3.6L C2/C4* 05-09 Front
*Not S 3.8L
Porsche 997 3.6L C2/C4* 09>> Front
*Not S 3.8L
Porsche 996 C4S 02-05 Rear
Porsche 996 GT2 02-05 Rear
Porsche 996 GT3 MKI 99-01 Rear
Porsche 996 GT3 MKII 02-05 Rear
Porsche 996 3.6LTurbo 02-05 Rear
Porsche 997 3.8L C2S/C4S 05-09 Rear
The problem of brake fluid boiling is simply traced to heat transferring from the rotors and pads directly into the fluid through the caliper pistons. When brake fluid boils, it releases air that is normally part of the molecular structure of the fluid. This air is compressible of course, and the brake pedal goes to the floor instead of moving the caliper pistons. Production cars tend to suffer from this on track days more as they don't usually have the extensive cooling duct and exotic brake materials as true racing cars. True racing only brake calipers generally come with titanium caliper pistons for one reason. Titanium as a material has low thermal conductivity. This means that it is very bad at transferring heat, which is fantastic if you are trying to keep your fluid cool.
The Girodisc solution to help prevent fluid boiling is to use a thin titanium shim placed between the pad back and the pistons, to keep the braking heat from transferring into the pistons and fluid. Here is a comparison of materials and their relative thermal conductivity ratings:
Titanium 6AL-4V 6.7 W/mk
Steel 52 W/mk
Aluminum 130 W/mk
You can see that Titanium will transfer far less heat than steel and especially aluminum. For cars that are going to see hard or multiple track days, these shims are cheap protection from losing the pedal due to boiling at the wrong time and making the day very expensive.
Water jet cut to exact size, no cutting, grinding, or swearing involved.
Price is per axle (four pieces)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
TS-917-4
The product you are viewing cross references to these numbers
This Product Fits:
Porsche 986 Boxster S 3.2 99-05 Front
Porsche 987 Boxster S 3.2 05>> Front
Porsche 987C Cayman 06>> Front
Porsche 996 3.4/3.6 97-05 Front
Porsche 997 3.6L C2/C4* 05-09 Front
*Not S 3.8L
Porsche 997 3.6L C2/C4* 09>> Front
*Not S 3.8L
Porsche 996 C4S 02-05 Rear
Porsche 996 GT2 02-05 Rear
Porsche 996 GT3 MKI 99-01 Rear
Porsche 996 GT3 MKII 02-05 Rear
Porsche 996 3.6LTurbo 02-05 Rear
Porsche 997 3.8L C2S/C4S 05-09 Rear
The problem of brake fluid boiling is simply traced to heat transferring from the rotors and pads directly into the fluid through the caliper pistons. When brake fluid boils, it releases air that is normally part of the molecular structure of the fluid. This air is compressible of course, and the brake pedal goes to the floor instead of moving the caliper pistons. Production cars tend to suffer from this on track days more as they don't usually have the extensive cooling duct and exotic brake materials as true racing cars. True racing only brake calipers generally come with titanium caliper pistons for one reason. Titanium as a material has low thermal conductivity. This means that it is very bad at transferring heat, which is fantastic if you are trying to keep your fluid cool.
The Girodisc solution to help prevent fluid boiling is to use a thin titanium shim placed between the pad back and the pistons, to keep the braking heat from transferring into the pistons and fluid. Here is a comparison of materials and their relative thermal conductivity ratings:
Titanium 6AL-4V 6.7 W/mk
Steel 52 W/mk
Aluminum 130 W/mk
You can see that Titanium will transfer far less heat than steel and especially aluminum. For cars that are going to see hard or multiple track days, these shims are cheap protection from losing the pedal due to boiling at the wrong time and making the day very expensive.
Water jet cut to exact size, no cutting, grinding, or swearing involved.
Price is per axle (four pieces)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
TS-917-4
23329
07.B314.15
07B31415
99635294903
99735193904
The product you are viewing cross references to these numbers
Price: €86.85
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Vehicle Group
- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne S/GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
Information
Brake Pad size: Width: 190mm / Thickness: 17mm / Height: 89mm
Information about Brake Pad Size
This Product Fits:
Porsche Cayenne (955) V8 4.5L S MKI
Porsche Cayenne (955) V8 4.5L Turbo MKI
Porsche Cayenne (957) V8 4.8L S/GTS MKII
Porsche Cayenne (957) V8 4.8L TURBO MKII
* For cars with 457mm/18" disc and Silver or Red calipers
* option code: I1LL or I1LM
Porsche (955) Cayenne 3.2L V6 MKI FRONT
Porsche (957) Cayenne 3.6L V6 MKII FRONT
Porsche (957) Cayenne 3.0L DIESEL MKII FRONT
*For cars with 430mm/17" disc and Black calipers
*option code: I1LK

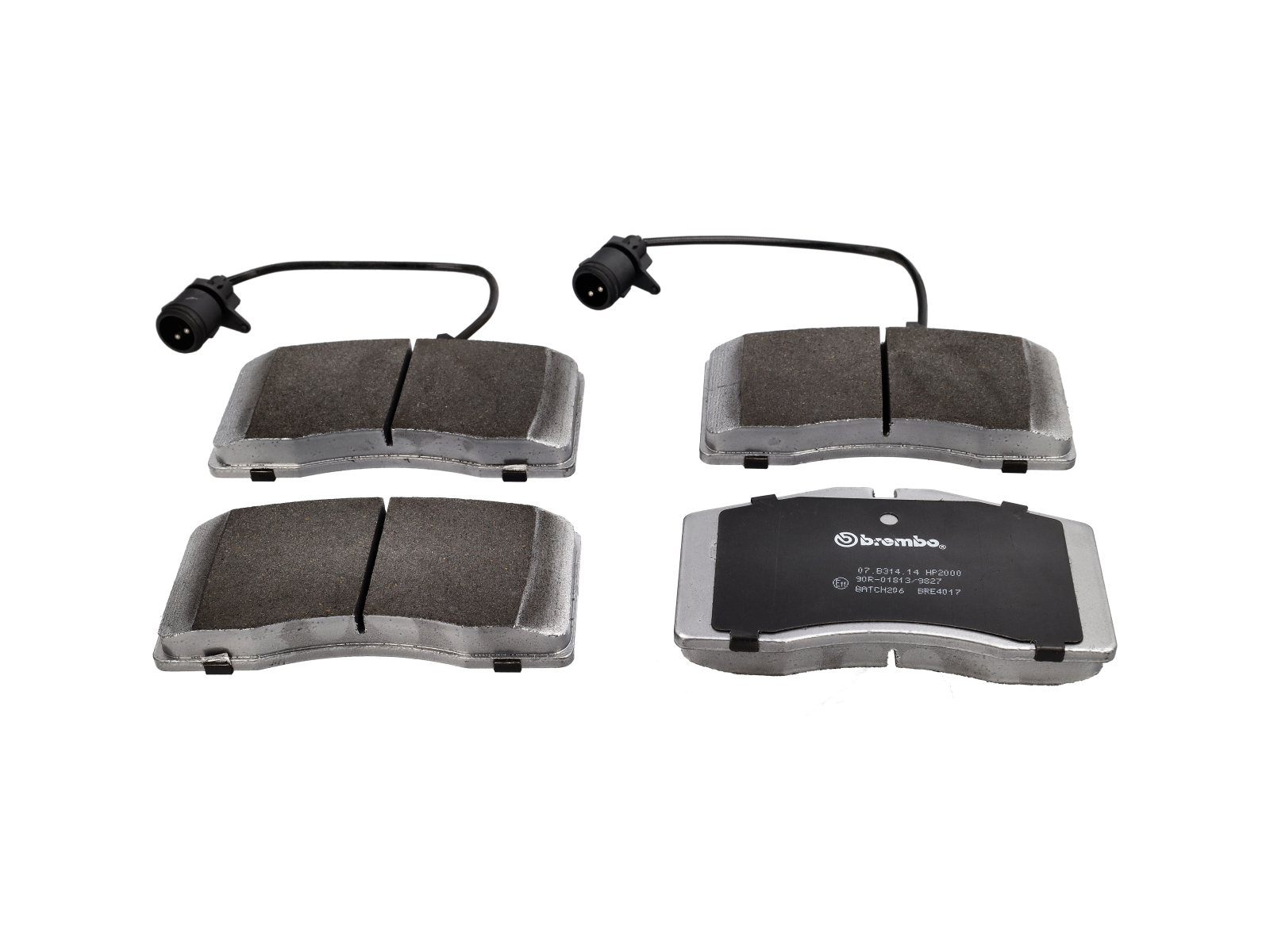

Tested to the highest levels on the track with decelerations from 270kph (168mph) the HP2000 material is capable of operating in the most demanding conditions.
With excellent cold performance & bite, high resistance to fade, frictional stability throughout all operating conditions, reduced pad & disc wear and low dust levels, the all new HP2000 friction material offers significant advantages over its rivals.
Designed to be a direct replacement for the Original Equipment (OE) pads the Brembo sport pad comes with the exact same specification as the OE pad including (where applicable): fitted wear leads, slots for separate wear leads and anti-rattle clips with the added benefit of anti-noise shims on every pad.
Combine all of this with competitive pricing and UNECE R90 approval across the full range (making them street legal) and you get a true high performance brake pad fit for the road.
Sold as set of 4 pads for one axle.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
07B31420
95535193912
95535193913
95535193914
95535193910
95535193911
95535193915
95535193916
95535193918
The product you are viewing cross references to these numbers
Price: €271.60
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Vehicle Group
- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne S/GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
Information
Brake Pad size: Width: 112mm / Thickness: 17mm / Height: 52mm
Information about Brake Pad Size
This Product Fits:
Porsche 955 Cayenne 3.2L V6 REAR
Porsche 955 Cayenne S or Turbo REAR
Porsche 957 Cayenne 3.6L V6 REAR
Porsche 957 Cayenne 4.8L S/GTS REAR
Porsche 957 Cayenne 3.0L DIESEL REAR
Porsche 957 Cayenne V8 4.5L Turbo S REAR
Porsche 957 Cayenne V8 4.8L Turbo REAR

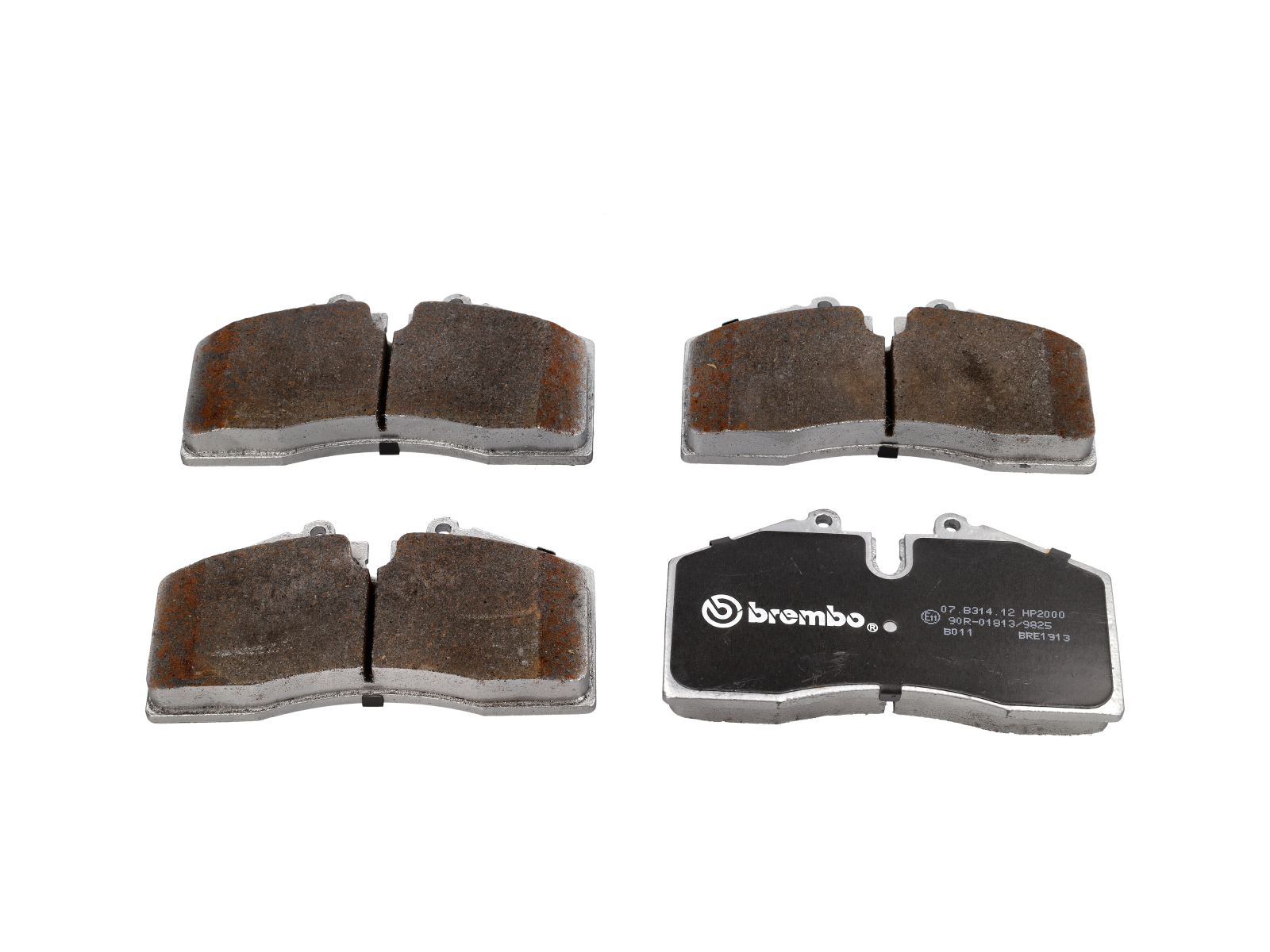

Tested to the highest levels on the track with decelerations from 270kph (168mph) the HP2000 material is capable of operating in the most demanding conditions.
With excellent cold performance & bite, high resistance to fade, frictional stability throughout all operating conditions, reduced pad & disc wear and low dust levels, the all new HP2000 friction material offers significant advantages over its rivals.
Designed to be a direct replacement for the Original Equipment (OE) pads the Brembo sport pad comes with the exact same specification as the OE pad including (where applicable): fitted wear leads, slots for separate wear leads and anti-rattle clips with the added benefit of anti-noise shims on every pad.
Combine all of this with competitive pricing and UNECE R90 approval across the full range (making them street legal) and you get a true high performance brake pad fit for the road.
Sold as set of 4 pads for one axle.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
07B31516
95535293903
95535293900
95535293901
95535293902
95535293905
95535293906
95535293910
The product you are viewing cross references to these numbers
Price: €140.27
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Information
Brembo HTC64T Racing Brake Fluid (500ml)
This high temperature brake fluid designed for the most extreme racing conditions.
It has a dry boiling point of 335° C which is around 25° C higher than a typical racing brake fluid. Developed exclusively for competition use, Brembo HTC 64T provides the highest performance under all racing conditions and has been used in F1, ALMS, DTM, WRC and BTCC.
Very high dry boiling point (335°C) / Wet boiling point 203°C
Ideal for competition vehicles which experience high brake temperatures
Successfully used in top level Motorsport including F1
For maximum performance it is recommended that Brembo HTC 64T is not mixed with other brake fluids.
500ml Bottle
