Through bolt o-ring installer with sleeve for Porsche 911 - SR024
SR024
产品车辆组
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Information

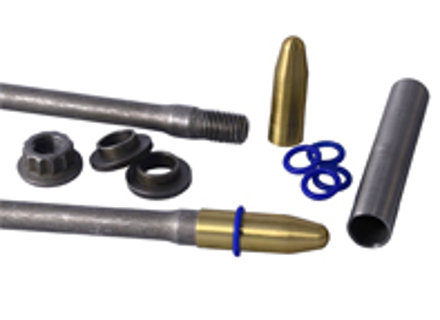

Stomski Racing SR024 Through bolt o-ring installer with sleeve for Porsche 911
Based on the factory P9511 tool, STOMSKI RACING's version of this tool incorporates a brass cap and a double-ended stainless steel sleeve to install the o-rings on the crankcase through-bolts of the 3.6 and later cases (but possibly can be used on some other 911 engines). By using the included brass cap to protect the delicate o-ring from getting cut on the threads of the bolt, you then use the "thin" end of the sleeve to slide the o-ring over the brass cap onto the shank of the through-bolt. Once the o-ring is clear of the threads, remove the SR024 brass cap and flip the SR024 stainless steel sleeve over and use the blunted end to securely and gently seat the o-ring in the recess on the 3.6 case.
Based on the factory P9511 tool, STOMSKI RACING's version of this tool incorporates a brass cap and a double-ended stainless steel sleeve to install the o-rings on the crankcase through-bolts of the 3.6 and later cases (but possibly can be used on some other 911 engines). By using the included brass cap to protect the delicate o-ring from getting cut on the threads of the bolt, you then use the "thin" end of the sleeve to slide the o-ring over the brass cap onto the shank of the through-bolt. Once the o-ring is clear of the threads, remove the SR024 brass cap and flip the SR024 stainless steel sleeve over and use the blunted end to securely and gently seat the o-ring in the recess on the 3.6 case.
€81.40
当前 €73.46
库存
安全购物
12 个月保修
全球交付
相关产品
Cylinder head bolt long. Porsche Boxster / Cayman / 996 / 997
代码: 99610418059
产品车辆组
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Information
Cylinder head bolt long. M10 x 230.
24 Bolts Per Engine. Price is for EACH.
Fits:
Porsche 986 Boxster 2.7L / S 3.4L 2003-04
Porsche 987 Boxster 2005-08
Porsche 987C Cayman 2005-08
Porsche 996 C2 / C4 / C4S 2002-05
Porsche 997 Carrera 2005-08
Click 'Zoom in' for large parts diagram
Diagram ref no 20.
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
99610418059
您正在查看的产品与这些编号存在交叉引用关系
24 Bolts Per Engine. Price is for EACH.
Fits:
Porsche 986 Boxster 2.7L / S 3.4L 2003-04
Porsche 987 Boxster 2005-08
Porsche 987C Cayman 2005-08
Porsche 996 C2 / C4 / C4S 2002-05
Porsche 997 Carrera 2005-08
Click 'Zoom in' for large parts diagram
Diagram ref no 20.
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
99610418059
99610418056
99610418057
99610418058
99610418059
523.050
您正在查看的产品与这些编号存在交叉引用关系
€21.91
当前 €20.81
库存
安全购物
12 个月保修
全球交付
Nut for Crankcase Stud. Porsche 964 / 993 / 996
代码: 95910117200
产品车辆组
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Information
Crankcase Stud Nut.
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
95910117200
您正在查看的产品与这些编号存在交叉引用关系
Fits:
Porsche 964 1990-94 (13 per engine)
Porsche 993 1995-98 (11 per engine)
Porsche 996TT / GT3 2001-2005 (11 per engine)
Click 'Zoom in' for large parts diagram
Diagram ref no 29
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
95910117200
95910117200
您正在查看的产品与这些编号存在交叉引用关系
€7.21
当前 €6.85
库存
安全购物
12 个月保修
全球交付
Crankcase Stud. Porsche 964 / 993 / 996 / 997
代码: 95910117302
产品车辆组
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
Information
Crankcase Stud. Normally 11pcs on the RIGHT crankcase.
Fits:
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo / GT3
Porsche 997 Turbo / GT3 2007>>
This product supersedes Porsche's old part number:
- 95910117301
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
95910117302
您正在查看的产品与这些编号存在交叉引用关系
Fits:
Porsche 964 1989-94
Porsche 993 1995-98
Porsche 996 Turbo / GT3
Porsche 997 Turbo / GT3 2007>>
This product supersedes Porsche's old part number:
- 95910117301
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。
95910117302
95910117302
95910117301
您正在查看的产品与这些编号存在交叉引用关系
€49.16
当前 €46.70
