中冷器
- Porsche 991.2 GT2 RS 3.8L PDK (700 bhp) 2018-19
Intercooler and Pressure Pipe Kit – Complete Charge Air System Solution
This complete intercooler and pressure pipe kit is designed
for Porsche 991.2 GT2 RS models. It provides a comprehensive
replacement solution for the entire charge air system, including both
intercoolers, two pressure pipes and a throttle body to intercooler seal.
Fits:
- Porsche 991.2 GT2 RS 3.8L PDK (700 bhp) 2018-19
Modern turbocharged Porsche engines rely on a highly efficient and sealed intake system to deliver performance. Over time, components such as intercoolers, plastic pressure pipes and rubber connectors can degrade, leading to boost leaks, reduced cooling efficiency and loss of power. This complete kit replaces all key components in one package to restore performance and reliability.
What This Intercooler & Pressure Pipe Kit Does
The charge air system compresses air via the turbochargers, cools it through intercoolers and delivers it into the engine for combustion.
This kit ensures:
• Efficient cooling of compressed air via both intercoolers
• Consistent and leak-free boost pressure across all pipe connections
• Proper airflow from turbochargers to intake system
• Reduced intake temperatures for improved combustion efficiency
• Reliable sealing and mounting across the entire system
Replacing the full system helps maintain optimal turbo performance and engine efficiency.

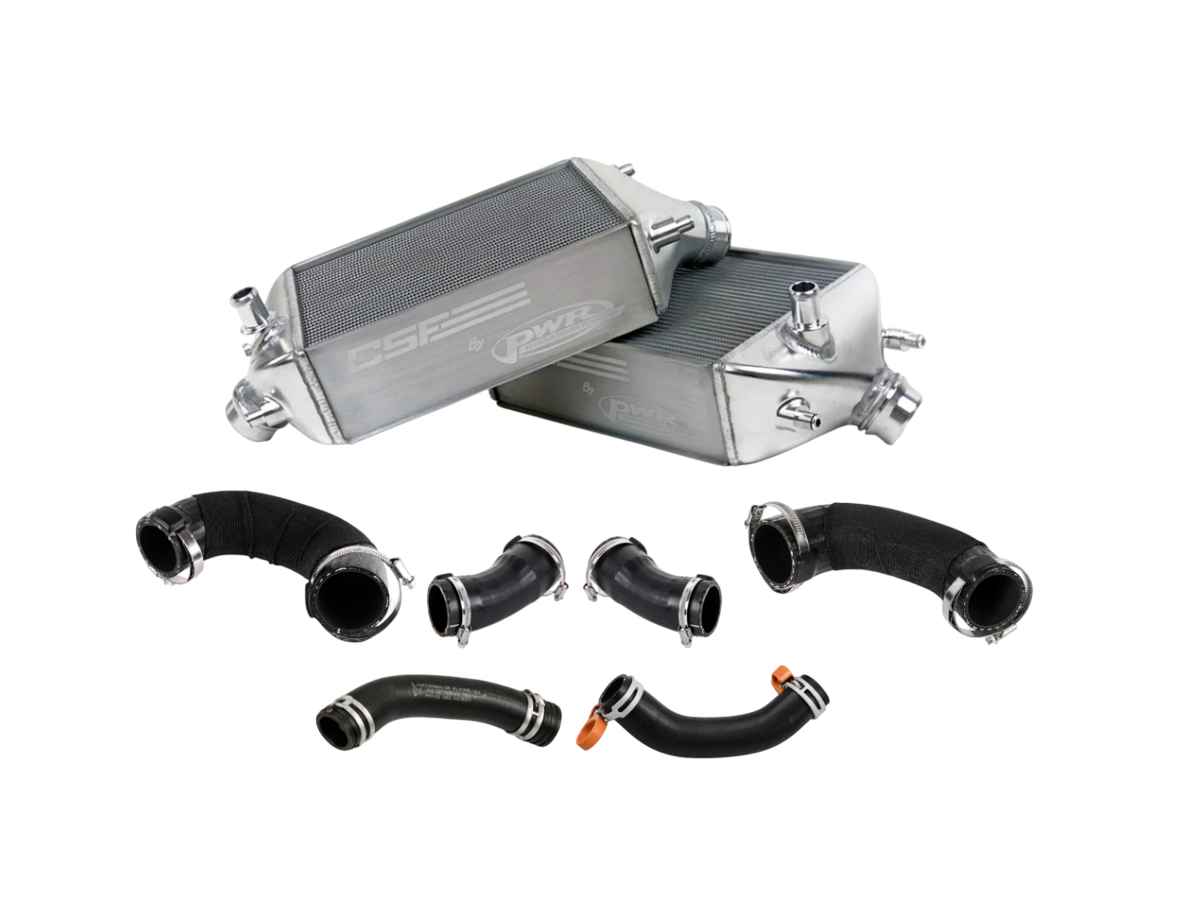

What Is Included in the Kit
• 2 x Intercooler

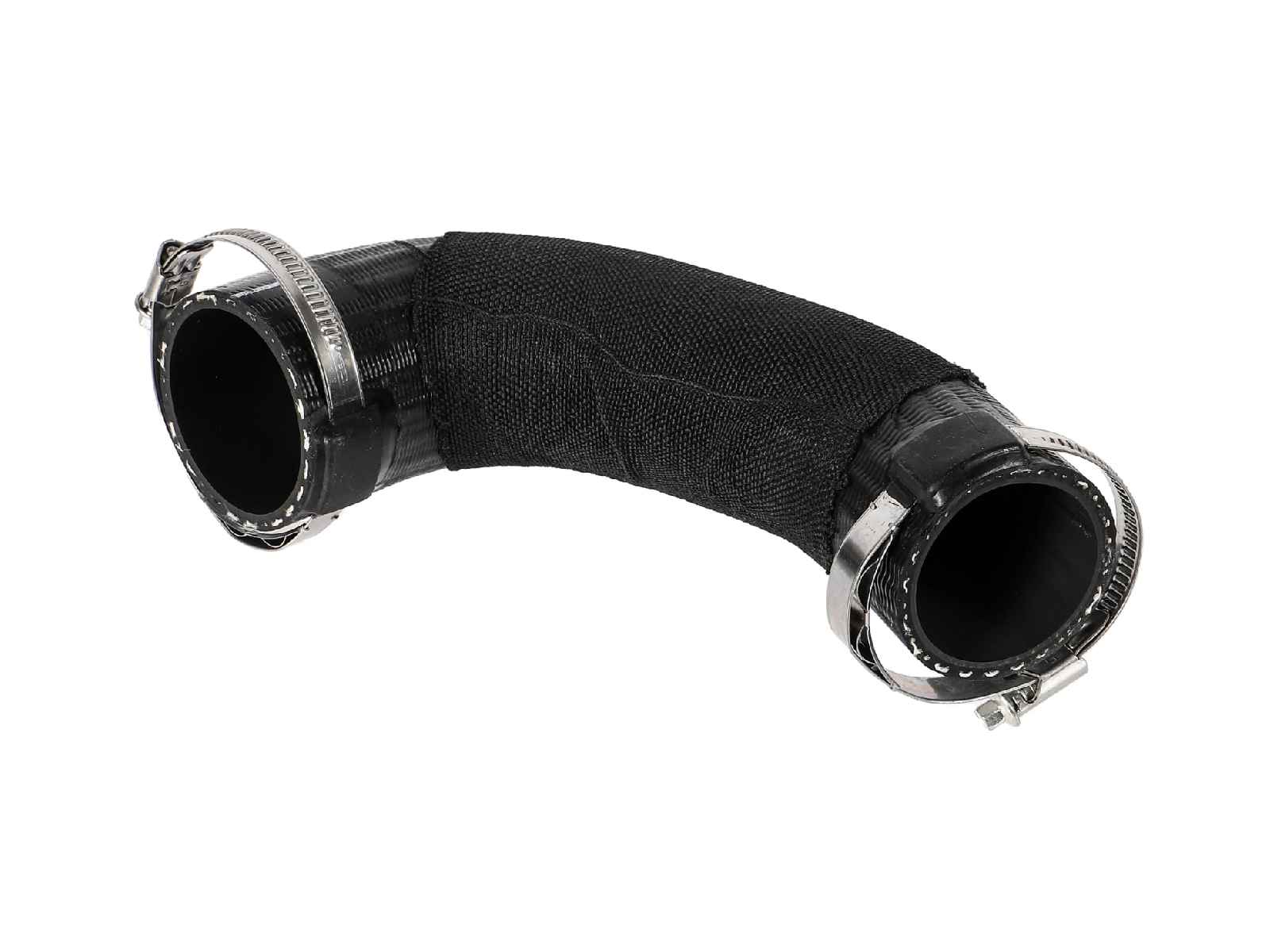

• 2 x Intercoolers Pressure Hose Upper (left and right)

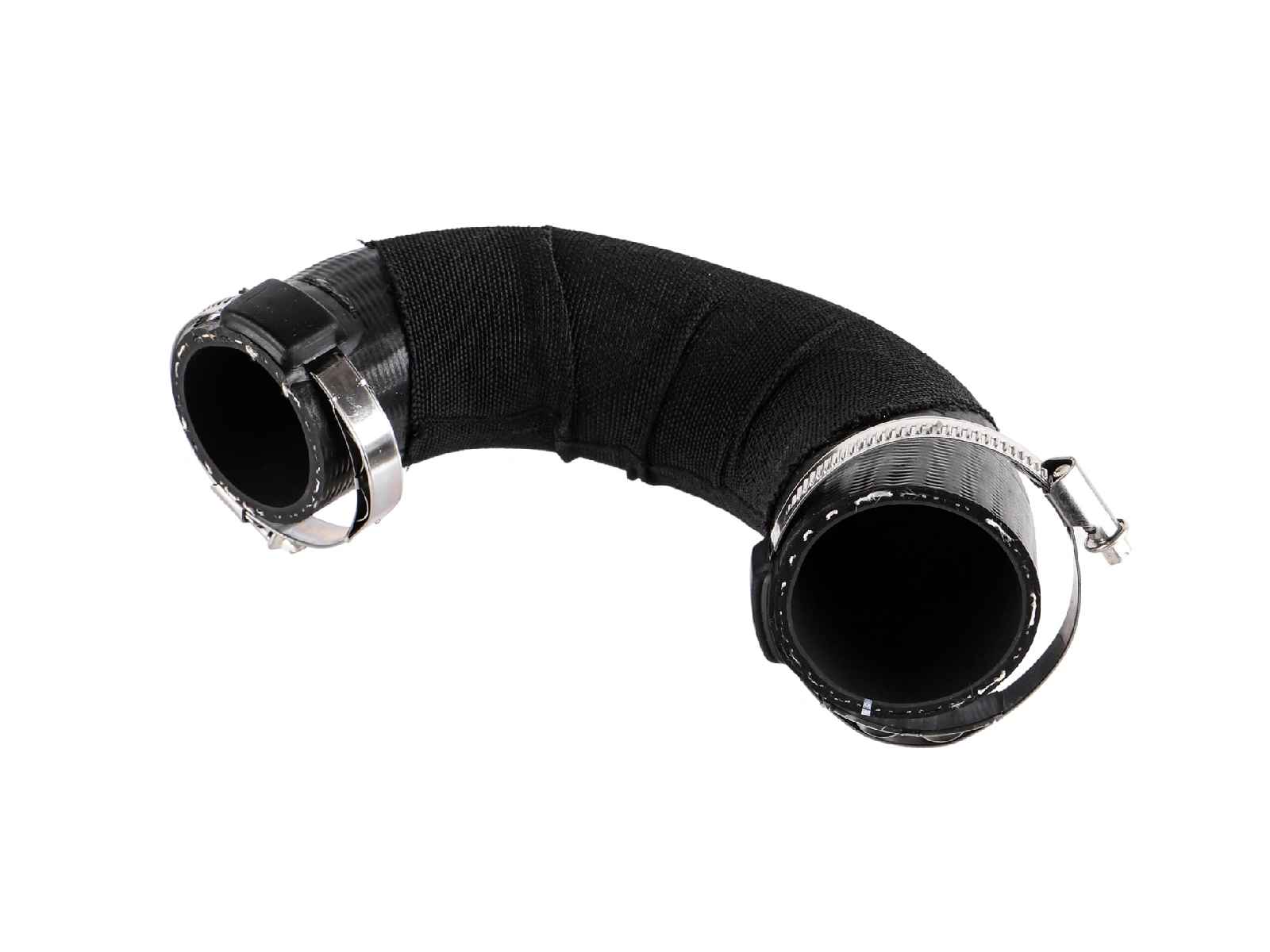

• 2 x Intercooler Pressure Hose Lower (left and right)

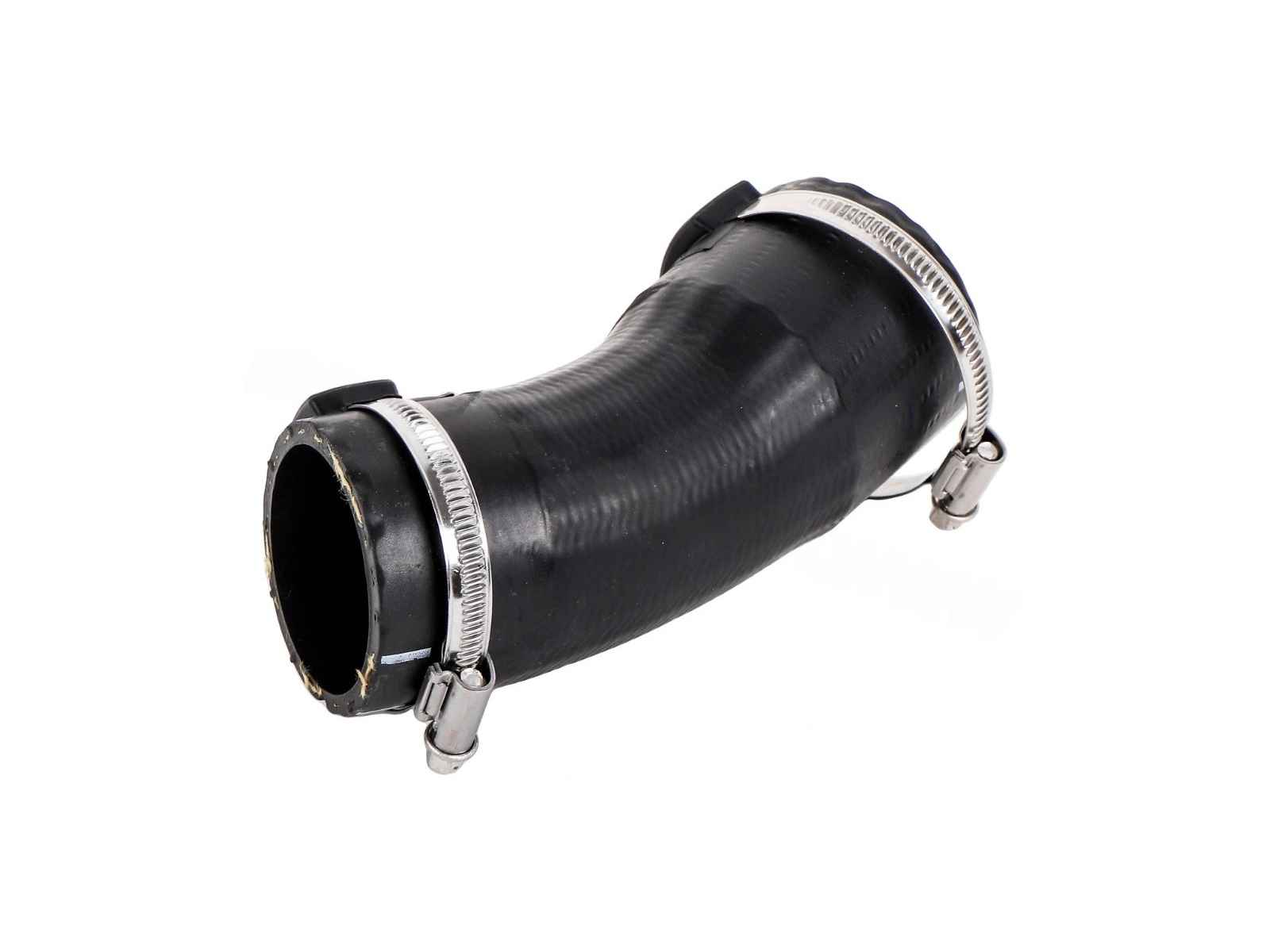

• 2 x Intercooler to Cut off Valve Pressure Pipe
This complete set replaces all major airflow and connection
components within the turbo intake system

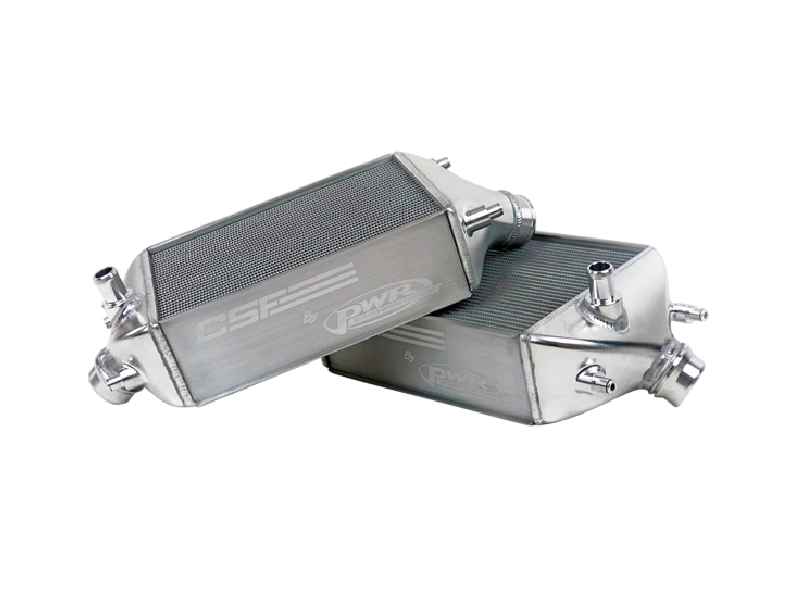

CSF High Performance GT2 RS Intercooler Specification:
• Numbers of Tubes = 28
• Tube Height = 3mm Rolled Tube
• Fin Height = 4.85mm
• Weight = 8.146KG
• Billet End Tanks with TIG Welding
The CSF High-Performance Intercoolers for the GT2 RS boasts 13 more cooling rows than the stock intercooler, boasting 28 rows in total vs. the stock 15. The tube height and fin height is also maximised with the CSF core boasting a dual-row 3mm rolled tube vs. the factory 7mm height and the CSF core uses a fin height of 4.85mm vs. the factory 7mm. As you can see, the CSF core maximises performance in every area.
Why Intercooler and Boost System Components Fail
Turbocharged systems operate under high pressure and extreme temperatures, which leads to wear across multiple components.
Common issues include:
- Cracked or weakened pressure pipes - Pipes can split or degrade over time due to heat and pressure.
- Boost leaks at joints and seals - Connections and sealing surfaces can wear, causing pressure loss.
- Intercooler efficiency loss - Internal contamination or ageing reduces cooling effectiveness.
- Rubber adaptor wear - Rubber components can harden, crack or lose flexibility.
Symptoms of a Failing Charge Air System
• Loss of engine power and acceleration
• Reduced turbo boost pressure
• Hissing noises under load
• Poor throttle response
• Increased fuel consumption
• Engine warning lights related to boost pressure
Replacing all components together ensures a complete and long-lasting solution.
Why Upgrade to a Complete Kit
- All-in-One Replacement - Eliminates the need to diagnose and replace individual failing components.
- Restore Full Performance - Ensures correct boost pressure, airflow and cooling efficiency.
- Prevent Future Failures - Replaces ageing parts across the entire system to avoid repeat repairs.
- Improve Engine Efficiency - Optimised airflow and cooling improve combustion and power delivery.
- Ideal for Preventative Maintenance or Performance Builds - Suitable for both standard maintenance and performance-focused upgrades.
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号,供比较之用。
8166KIT
您正在查看的产品与这些编号存在交叉引用关系
该套件包括以下商品:
- Porsche 991.2 GT2 RS 3.8L PDK (700 bhp) 2018-19
长期以来,保时捷 991 GT2 RS 中冷器升级的唯一解决方案不是升级,而是对 1990 年代风格的原装喷水系统进行修补,该系统将水从前备箱中的水箱喷洒到中冷器上。修补的办法是安装一个容量更大的水箱,这只会延迟不可避免的水耗尽,并由工厂 ECU 自动限制输出,以尽量保证发动机安全。除非您再次给水箱加水,否则您的 991 GT2 RS 可能会因充电温度和输出受限而苦苦挣扎。
CSF 和 PWR 的冷却专家联手为 991 GT2 RS 提供高性能中冷器升级,可消除热浸现象并降低原装、改装和履带车的增压空气温度。CSF 通过使用 F1 性能级核心实现此目的,在相同的空间限制内显著提高中冷器的效率。
GT2 RS 的 CSF 高性能中冷器比原装中冷器多 13 排冷却管,总共 28 排,而原装中冷器只有 15 排。管高和翅片高度也最大化,CSF 核心采用双排 3mm 轧制管,而出厂高度为 7mm,CSF 核心采用 4.85mm 翅片高度,而出厂高度为 7mm。如您所见,CSF 核心在每个方面都实现了性能最大化。
差异不仅仅在于性能。GT2 RS 的 CSF 高性能中冷器还具有可靠性和耐用性改进。客户反馈报告了标准端水箱多次出现故障,该水箱使用不安全且易发生故障的卷边和垫片机制,随着多次增压循环和改装汽车的增压压力增加,该机制可能会随着时间的推移而泄漏,而 GT2 RS 的 CSF 高性能中冷器采用 100% TIG 焊接,可实现最大的可靠性和耐用性。
原装保时捷中冷器规格:
• 管数 = 15
• 管高 = 7mm
• 翅片高度 = 7mm
• 重量 = 8.146KG
• 铸造端罐,用垫圈压接
交叉参考编号
99111064073, 99111063973
CSF 高性能 GT2 RS 中冷器规格:
• 管数 = 28
• 管高 = 3mm 卷管
• 翅片高度 = 4.85 毫米
• 重量 = 8.146KG
• 采用 TIG 焊接的钢坯端罐
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号,供比较之用。
8166
您正在查看的产品与这些编号存在交叉引用关系
- Porsche 991.2 GT2 RS 3.8L PDK (700 bhp) 2018-19

BBi worked with C&R racing to develop and validate intercoolers for the GT2 RS system. The new system is enhanced in every way to maximize cooling performance. This system went through extensive validation in 1/2 mile and road course enviroments as well as hot weather condition testing. This is the same intercooler system as installed on the BBi VMax GT2 RS that went 226.95mph, becoming the fastest GT2 RS 991 in the world.
• Number of Tubes: 28 (OE: 15)
• Tube Height: 3mm (OE: 7mm)
• Fin Height: 4.85mm (OE: 7mm)
• Weight: 18lbs (same as OE)
• Design: CNC Endtanks, welded (OE: cast endtanks, crimped on)
As part of PWR Advanced Cooling Technology, C&R is a full-scale cooling provider, supplying R&D, testing and production of cooling solutions to top-tier race teams, performance automotive niche vehicle manufacturers, and specialty car builders who want only the best for their projects. This kit is ready for installation (plug & play) and features a tube and fin core for ultimate cooling. We opted for a tube and fin core instead of bar and plate for its lighter weight and more efficient thermal inertia. This means it cools quickly when exposed to direct air flow.
Features:
• CNC Machined Billet End Tanks, Inlet/Outlet Ports
• Tube & Fin 2-row core, designed by PWR
• Designed to Use OEM Plumbing and Shrouds
• Compatible with Porsche 991.2 GT2 RS
Made in USA
相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号,供比较之用。
BBI9911070002
您正在查看的产品与这些编号存在交叉引用关系
Porsche Inter Coolers
At Design911, we supply a wide range of inter coolers for Porsche models, helping you maintain, personalise and enjoy your car.
Why do Porsche Inter Coolers matter?
Inter Coolers affect how efficiently the engine in your Porsche runs, especially on turbocharged models. Over time they can suffer from leaks, corrosion and reduced efficiency, or simply no longer be suitable once you start tuning the engine. Replacing tired or undersized intercoolers helps your Porsche stay reliable, consistent and enjoyable to drive, particularly under heavy load.
- Keep your Porsche looking smart rather than tired or neglected
- Help protect the surrounding area from dirt and corrosion where relevant
- Reduce minor niggles such as looseness, rattles or mismatched parts
- Support long-term enjoyment, pride of ownership and potential resale value
Common options & kits
Individual replacement parts
Specific items to address a particular area or issue without changing everything at once.
- Ideal for targeted repairs
- Lets you replace only what is needed
- Helps keep initial costs under control
Matched sets or pairs
Components supplied together so both sides or related items are renewed at the same time.
- Consistent feel and performance
- Helps avoid uneven wear or behaviour
- A sensible choice for routine maintenance
Complete kits
Grouped parts designed to refresh a whole system or area in one go, useful for upgrades and restorations.
- Everything specified in a single package
- Saves time compared with sourcing parts individually
- Ideal when upgrading or restoring your Porsche
Brands & quality options
At Design911, we stock genuine Porsche parts where available, plus OEM-equivalent and carefully selected aftermarket brands. This lets you choose between keeping things original, adding subtle upgrades, or managing budgets on everyday maintenance.
Agency Power
Agency Power produces a range of functional racing and performance products, including parts for Porsche models. Components are developed through track use and product testing to help ensure fitment and consistency.
Alpha
Alpha Performance, part of AMS, engineers intercooler systems and related components with a focus on efficient cooling and durability. Their Porsche products are developed using computer-aided design and motorsport experience to optimise fitment and airflow.
BBi Autosport
BBi Autosport is a Porsche-focused motorsport and tuning company with decades of combined racing experience. Their performance parts are developed from track programmes and professional racing, with attention to fit, function and workshop use.
CSF
CSF designs and manufactures high‑performance Porsche cooling products for motorsport and enthusiast use. Their intercoolers and radiators focus on efficient heat rejection, robust construction and reliable fitment.
Denso
Always check the exact part number and fitment data when choosing Denso components to ensure the correct match for your specific Porsche model and engine.
When should you review or replace your Porsche inter coolers?
Checking inter coolers regularly helps you spot wear, damage or age-related deterioration before it affects comfort, refinement or leads to more expensive repairs later on.
- Existing parts are worn, cracked, scuffed, faded, corroded or missing
- You notice looseness, vibration or an untidy appearance around the area they sit in
- You have had related work carried out and want everything to look and feel consistent
- You want the car to feel smarter and better cared for in daily use or before resale
If any of these apply, it is a good time to review your inter coolers and replace anything that is past its best, so your Porsche stays dependable and enjoyable to drive.
Explore Porsche inter coolers with Design911
Browse inter coolers for Porsche at Design911 — from individual parts to complete kits — and find options to suit everyday maintenance, upgrades and full projects.
