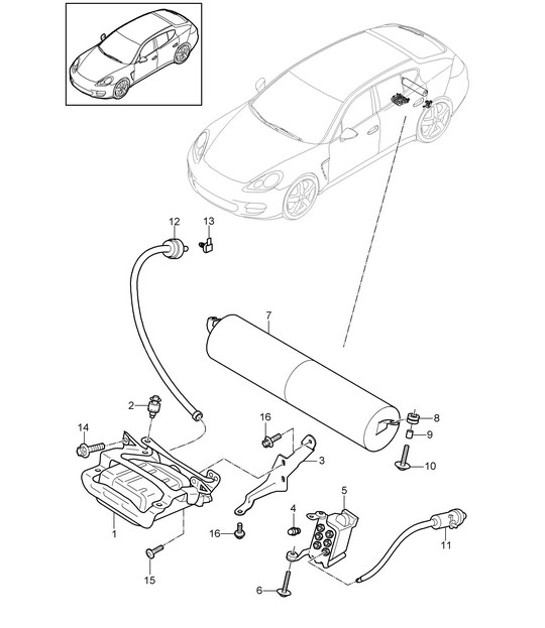

Adaptive suspension / Compressor / Pressure accumulator / Accelerator sensor (PR:350,351, 354,355) Panamera - PORSCHE
Click the image numbers to view product info
SKU: 97035815114, compressor (complete) use if required: relay adaptive suspension katalog 35 /90200/pos.8,SKU: 97035815128, compressor (complete) use if required: relay adaptive suspension katalog 35 /90200/pos.8
SKU: 97035890200, set of fastening parts compressor
SKU: 97035832301, bracket for compressor,SKU: 97035832523, bracket - pressure accumulator d - mj 2012>> - mj 2013,SKU: 97035832525, bracket - pressure accumulator d - mj 2014>>
SKU: 95535854100, push-on connector
SKU: 97035815304, control mechanism (complete),SKU: 97035815325, control mechanism (complete) d - mj 2012>> - mj 2013,SKU: 97035815326, control mechanism (complete) d - mj 2014>>
SKU: 99991925601, bolt with washer
SKU: 97035815504, pressure accumulator,SKU: 97035815523, pressure accumulator d - mj 2012>>
SKU: 96435663500, rubber bush
SKU: 95534363300, bearing bush
SKU: 99991926901, bolt with washer,SKU: 90037831801, bolt with washer
SKU: 97035827303, pressure line,SKU: 97035827324, pressure line d - mj 2012>> - mj 2013,SKU: 97035827326, pressure line d - mj 2014>>
SKU: 97035827104, suction line,SKU: 97035827126, suction line
SKU: 95535852100, retaining clip
SKU: 9A700812500, torx screw
SKU: N91034301, self-tapping screw
SKU: N91118201, hex socket head bolt (combi)
SKU: N91118201, hex socket head bolt (combi)
+
−
↺
