Porsche
Diagrams
992 (911) MK1 2019-2024
Rear Axle
Rear axle / Cross member (PR:E7S) 992.1 DAKAR 2019 - 2024
Enter valid search criteria before proceeding with the request
➜
5.5-01
Rear axle side-carrier 911 (992) GT3 CUP 2021
5.5-02
Rear axle wishbones 911 (992) GT3 CUP 2021
5.5-03
Ventilation scoop wishbone 911 (992) GT3 CUP 2021
5.5-04
Upright rear 911 (992) GT3 CUP 2021
5.5-05
Anti roll-bar rear 911 (992) GT3 CUP 2021
5.5-06
Suspension strut rear 911 (992) GT3 CUP 2021
5.5-07
Drive shaft 911 (992) GT3 CUP 2021
501-000
Rear axle / Wheel carrier / Wheel hub (PR:1PA, 1PD, 1PJ, A8C, A8F) 992.1 Carrera 2019 - 2024
501-005
Rear axle / Cross member (PR:K5T, K8C, K8K) 992.1 Carrera 2019 - 2024
501-007
Rear axle / Cross member (PR:E7S) 992.1 DAKAR 2019 - 2024
501-010
Rear axle / Wishbone (PR:0N1 - Standard rear axle) 992.1 Carrera 2019 - 2024
501-015
Rear axle / Wishbone / Rear axle steering (PR:0N5 - Standard rear axle) 992.1 Carrera 2019 - 2024
501-020
Anti-roll bar / Coupling rod (PR:1P0 - Standard suspension, PR:K8C - Coupe) 992.1 Carrera 2019 - 2024
501-025
Anti-roll bar / Coupling rod (PR:1X1, 1X2, A8C, A8F, 1BH, 1BV, 1P0, G1F, G1G, G1L, G1M, GH1, GH2, GH3, K5T, K8K) 992.1 Carrera 2019 - 2024 TARGA / CABRIOLET
501-030
Anti-roll bar / Coupling rod (PR:1X1, A8C, 1BH, 1P0, GH1, K8K) 992.1 Carrera 2019 - 2024 Cabriolet
501-050
Anti-roll bar / Coupling rod - PDCC - (PR:1P7 - Anti-roll bar, active body control
(pdcc)) 992.1 Carrera 2019 - 2024
501-100
Drive shaft (PR:G1F, G1G, G1L, G1M) 992.1 Carrera 2019 - 2024
502-000
Suspension strut complete / Shock absorbers / Individual part 992.1 Carrera 2019 - 2024
502-010
Shock absorber (spring cyl.) / Individual part (PR:1BV, E0W) 992.1 Carrera 2019 - 2024
502-015
Suspension / Shock absorbers - For vehicles with adaptive
suspension (PR:1BM, 2UM, E7S) 992.1 DAKAR 2019 - 2024
➜

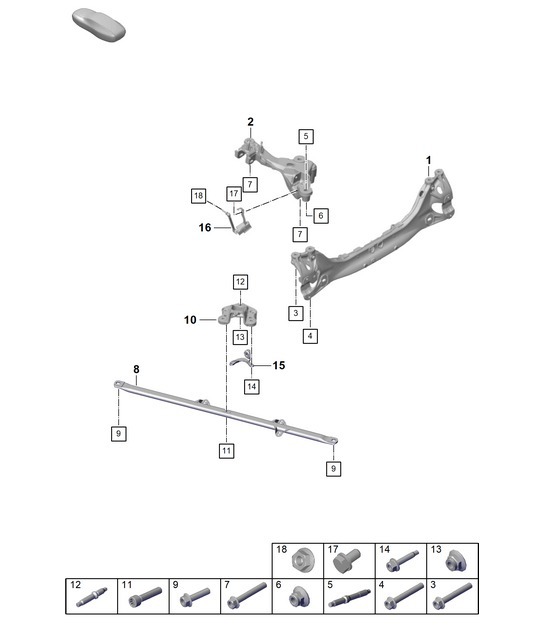

Rear axle / Cross member (PR:E7S) 992.1 DAKAR 2019 - 2024 - PORSCHE
Click the image numbers to view product info
SKU: 992505105C, cross member
SKU: 992505063D, side part,SKU: 992505064D, side part
SKU: PAF008735, hex head screw
SKU: PAF008735, hex head screw
SKU: PAF008673, hex head screw
SKU: PAF008673, hex head screw
SKU: WHT008655, threaded pin
SKU: WHT008655, threaded pin
SKU: N90916701, hexagon collr nutself-locking
SKU: N90916701, hexagon collr nutself-locking
SKU: PAF008735, hex head screw
SKU: PAF008735, hex head screw
SKU: PAF008735, hex head screw
SKU: 992505475G, panhard rod,SKU: 992505476G, panhard rod
SKU: WHT008676, hexagon boltbrace
SKU: WHT008676, hexagon boltbrace
SKU: WHT008676, hexagon boltbrace
SKU: 992505261C, support
SKU: PAF909417, socket head bolt with inner multipoint head
SKU: PAF909417, socket head bolt with inner multipoint head
SKU: PAF008654, threaded pin
SKU: PAF008654, threaded pin
SKU: PAF008868, hexagon nut
SKU: PAF008868, hexagon nut
SKU: PAF008642, hexagon bolt
SKU: PAF008642, hexagon bolt
SKU: ., bracketsee illustration: 402-110
SKU: 992616571A, lever sensorrear axle,SKU: 992616572A, lever sensorrear axle
SKU: N10005306, hexagon head bolt (combi)bolt with washer
SKU: N10005306, hexagon head bolt (combi)bolt with washer
SKU: PAF015082, hexagonal collar nut
SKU: PAF015082, hexagonal collar nut
+
−
↺
501-007
