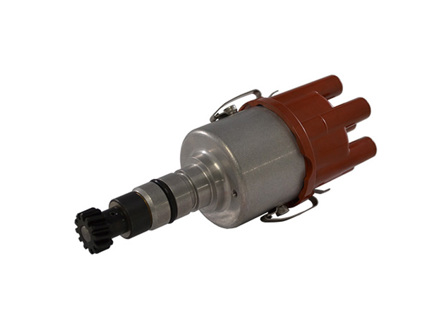

Ignition distributor SWITCH. Porsche 911 2.0L and 2.2L 6 cylinder engines - 123SWSML6R
123SWSML6R
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Information
Ignition distributor SWITCH
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
This Electronic Ignition Distributor is designed for Porsche 911 2.0L and 2.2L 6 cylinder engines
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user. Please take a look in the curve table for available advance curves.
Cylinders: 6
Model: Switch
Operating voltage: 4-15V
Wires: Black: coil ‘-‘ | Red: ignition key (battery 6V / 12V)
Vacuum: No
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current: fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Porsche911SMALL-6-R = Porsche911SMALL stands for the 123ignition type
Porsche911SMALL-6-R = 6 stands for the number of cylinders
Porsche911SMALL-6-R = R stands for Straight distributor cap
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123SWSML6R
The product you are viewing cross references to these numbers
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
This Electronic Ignition Distributor is designed for Porsche 911 2.0L and 2.2L 6 cylinder engines
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user. Please take a look in the curve table for available advance curves.
Cylinders: 6
Model: Switch
Operating voltage: 4-15V
Wires: Black: coil ‘-‘ | Red: ignition key (battery 6V / 12V)
Vacuum: No
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current: fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Porsche911SMALL-6-R = Porsche911SMALL stands for the 123ignition type
Porsche911SMALL-6-R = 6 stands for the number of cylinders
Porsche911SMALL-6-R = R stands for Straight distributor cap
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123SWSML6R
90160202500
90160202101
90160202102
90160202150
901602021AX
901603021BX
91160270700
90160250200
911602021
The product you are viewing cross references to these numbers
Price: £312.00
In stock
Related products
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Information
Belt and Pin or Twin IGN Distributor.
A design fault on engines up to August 1993 that you MUST fix if not already done so is to add ventilation to the distributor to prevent ozone perishing the distributor drive belt. If this breaks you will be running on one plug per cylinder and will end up with poor performance and possible damage.
The solutions is to also fit a Venting kit.
Fits:
Porsche 964 1990-94
Porsche 993 1995-97
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DISTKIT964
The product you are viewing cross references to these numbers
A design fault on engines up to August 1993 that you MUST fix if not already done so is to add ventilation to the distributor to prevent ozone perishing the distributor drive belt. If this breaks you will be running on one plug per cylinder and will end up with poor performance and possible damage.
The solutions is to also fit a Venting kit.
Fits:
Porsche 964 1990-94
Porsche 993 1995-97
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
DISTKIT964
93060213400
93060292200
The product you are viewing cross references to these numbers
About kit
This kit is comprised of the following items:
1 x Pin for distributor gear (93060292200)
Unit Price: £10.55
InStock
1 x DISTRIBUTOR DRIVE BELT (93060213400/1)
Unit Price: £10.95
InStock
Price: £21.50
In stock
Vehicle Group
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Information
Distributor Vent Kit.
964 Ventilation Kit includes:
- Distributor ventilation connection (A)
- Rubber Grommet (B)
- White Grommet connector (C)
- Hose (D)
HOW TO FIT: Firstly prise of the oval plate arrowed on the distributor with a screwdriver. Then remove the large black air guide pipe as we need to drill a hole in it at the green dot. The pipe removes by loosening jubilee clips at top and bottom. You will also need to remove two sensor connectors on the pipe. I also removed the two sensors near the distributor so that I had easy access to the plate. Drill at 18mm hole in the pipe, 40mm to the right of the tail light ventilation nipple. Deburr the hole and remove all shavings. Install the rubber grommet (B) into the hole and install the white connector (C) into the grommet.Install the distributor connector (A) into the hole in the distributor where the plate was. Finally refit the air pipe and connect back up all the sensors. Install the hose (D) onto the new distributor and air pipe nipples and route
Fits:
Porsche 964 1990-94
Porsche 993 1995-97
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
00004320252
The product you are viewing cross references to these numbers
964 Ventilation Kit includes:
- Distributor ventilation connection (A)
- Rubber Grommet (B)
- White Grommet connector (C)
- Hose (D)
HOW TO FIT: Firstly prise of the oval plate arrowed on the distributor with a screwdriver. Then remove the large black air guide pipe as we need to drill a hole in it at the green dot. The pipe removes by loosening jubilee clips at top and bottom. You will also need to remove two sensor connectors on the pipe. I also removed the two sensors near the distributor so that I had easy access to the plate. Drill at 18mm hole in the pipe, 40mm to the right of the tail light ventilation nipple. Deburr the hole and remove all shavings. Install the rubber grommet (B) into the hole and install the white connector (C) into the grommet.Install the distributor connector (A) into the hole in the distributor where the plate was. Finally refit the air pipe and connect back up all the sensors. Install the hose (D) onto the new distributor and air pipe nipples and route
Fits:
Porsche 964 1990-94
Porsche 993 1995-97
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
00004320252
00004320252
The product you are viewing cross references to these numbers
Price: £41.88
In stock
Vehicle Group
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
Information
Distributor Pinion
Fits:
Porsche 911 Carrera 1984-89
Porsche 964 Turbo 3.3L / Turbo 3.6L 1991-94
Clck 'Zoom in' for large parts diagram.
Diagram ref no 5.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93060242402
The product you are viewing cross references to these numbers
Fits:
Porsche 911 Carrera 1984-89
Porsche 964 Turbo 3.3L / Turbo 3.6L 1991-94
Clck 'Zoom in' for large parts diagram.
Diagram ref no 5.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93060242402
93060242402
The product you are viewing cross references to these numbers
Price: £131.23
Orderable
Vehicle Group
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Information
Distributor o-ring.
Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models
Click 'Zoom in' for large parts diagram.
Diagram ref no 4
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91160210201
The product you are viewing cross references to these numbers
Fits:
Porsche 911 1970-89
Porsche 911 (930) Turbo 1975-89
Porsche 964 1989-94 all models
Porsche 993 1995-98 all models
Click 'Zoom in' for large parts diagram.
Diagram ref no 4
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91160210201
91160210201
The product you are viewing cross references to these numbers
Price: £4.05
In stock
