- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Fits:
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1997
Available with or without a Honeywell Fuel Pressure Sensor

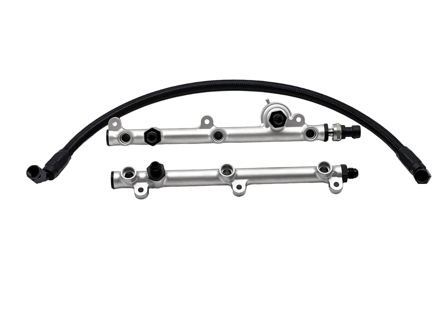

This versatile fuel rail & regulator are designed for individual use with a standard intake or as part of the IslandWorks intake, ensuring optimal fuel delivery for enhanced engine performance.
The rails are CNC machined in a 5-axis machine with meticulous precision and care. The result is a set of aluminum rails with minimalistic touch to it. To make it more interesting a fuel pressure regulator is integrated into the left rail with all inlets and outlets under the rails between the plenum legs to give your engine a clean appearance.
Key Features:
Included in the Kit:
- Rail Mounts: Integrated into the rail compatible with Islandworks billet intake runners or original Porsche plastic runners. Note: Both are based on EV14L injectors.
- Optional Honeywell Fuel Pressure Sensor: For enhanced monitoring and precision.
Please note:
This kit is designed for EV14L injectors or any other injectors compatible with the Porsche 964 original fuel rails.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
96411030700
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
Fits:
Porsche 911 1974-83
Click 'Zoom in' for large parts diagram.
Diagram ref no 27
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91111088603
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
The CNC-machined and anodised fuel rail kit by Adapt Motorsport is designed for Porsche 964 and 993 3.6ltr engines using the standard intake adaptors. It can also mount to Adapt Motorsport two-bolt adaptors for earlier 2.7, 3.0 and 3.2ltr Porsche 911 engines.
Fits
- Porsche 911 964 3.6L with standard intake adaptors
- Porsche 911 993 3.6L with standard intake adaptors
- Earlier Porsche 911 2.7L, 3.0L and 3.2L engines fitted with Adapt Motorsport two-bolt intake adaptors
Check fitment for your specific vehicle (model, year, engine) before ordering.
What This Product Does
This twin-rail kit provides configurable fuel connections using O-ring ports and AN-6 JIC fittings. It supports hose arrangements based on the factory 964 or 993 system, as well as a simplified dead-head configuration, and allows fuel-pressure sensing to be added for compatible aftermarket ECU tuning, data logging or protection strategies.
Functions
- Mounts directly to standard Porsche 964 and 993 intake adaptors
- Supports factory-style 964 or 993 fuel-hose layouts
- Allows a dead-head fuel-system arrangement
- Provides connection points for fuel-pressure sensing
- Uses removable fittings and plugs for flexible installation
Technical Details
- CNC-machined and anodised construction
- AN-6 JIC fittings with O-ring fuel-rail connections
- Product references: AMS9050032 and AMS9050033
- Kit includes two fuel rails
- Includes four ORB-to-JIC fittings, two ORB plugs and mounting screws for factory intake adaptors
- Cars with factory air-conditioning compressors must use the supplied plugs to close the rear ends of the rails and use a dead-head fuel-hose layout
Why Replacement Matters
This kit provides a serviceable and adaptable rail arrangement for compatible standard or modified fuel systems. Its interchangeable fittings and plugs allow the installation to be configured around the selected hose layout, intake adaptors and pressure-sensing requirements.
FAQs
- Can the kit reproduce the factory fuel layout? It can be arranged in a factory-style 964 or 993 configuration, or installed as a simplified dead-head system.
- Does it fit earlier Porsche 911 engines? It fits 2.7L, 3.0L and 3.2L engines when used with the compatible Adapt Motorsport two-bolt intake adaptors.
- Can a fuel-pressure sensor be installed? Yes, the rail arrangement allows pressure sensing to be added for compatible aftermarket ECU systems.
- What is supplied? The kit contains two rails, four ORB-to-JIC fittings, two ORB plugs and screws for attachment to factory intake adaptors.
- Is there a special requirement for cars with air conditioning? Cars retaining the factory compressor must close the rear rail ports with the supplied plugs and use a dead-head hose arrangement.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93011045900
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 914 (1970-1976)
Braided Fuel Hose (Sold by the Metre) - 9.3mm Internal Diameter / 15.3mm Outer Diameter.
This high-quality braided fuel hose is designed for multiple uses within the fuel system of various vehicles. It offers extremely low fuel permeability, excellent heat resistance, and high flexibility, making it a reliable choice for demanding applications.
Fits:
Porsche 911 Carrera 1965-89
Porsche 911 Turbo (930) 1975-89
Porsche 914 1970-76
Porsche 924 1976-85
Porsche 928 1978-91
Comparable to Porsche part number(s): N0203591 & PCG020359A
Specifications:
Inner Diameter (ID): 9.3mm
Outer Diameter (OD): 15.3mm
Material: FPM/ECO/AR/ECO (Type 3E) – Compliant with DIN 73379-1
Complies With: EU End-of-Life Vehicles Directive
NOTE: This product is not suitable for use in fuel tanks, or for gear and/or engine oils. Always follow the manufacturer's specifications regarding operating temperatures, especially for high-performance engines exposed to extreme heat.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PCG020359A
The product you are viewing cross references to these numbers
