Wishbone Front UPPER, SET OF 2. Porsche 970.2 Panamera 2014-2016 - 97034105123
97034105123/2KIT
Vehicle Group
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
- Porsche 970.2 Panamera Diesel V6 3.0L (250Hp) 2014-16
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Information

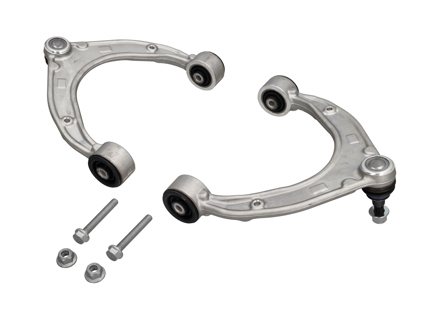

Wishbone Front UPPER. SET OF 2.
This OE Match Front upper control arm set includes both left and right arms and all required OEM hardware for correct installation. This kit directly replaces the factory upper wishbones used on Porsche Panamera (970.2, 2014–2016) models.
Fits:
Porsche 970.2 Panamera 2014 - 2016
Diagram ref no 13, 14, 15, 16.
Set Includes:
2 × OE Match Front Upper Control Arms (97034105123 Left & Right)
with Genuine Porsche Hardware:
2 × PAF102902 (Mounting Bolts),
2 × PAF102861 (Self-Locking Nuts)
Each arm is precision-machined from forged aluminium alloy for strength and reduced unsprung weight. They feature pre-installed rubber-metal bushings and sealed ball joints, tuned to match Porsche’s original damping and articulation characteristics.
Paired with Genuine Porsche PAF102902 bolts and PAF102861 self-locking nuts, this kit ensures secure fastening, accurate torque retention, and long-term suspension stability — exactly as Porsche intended.
Front upper control arms are critical for maintaining suspension alignment and cornering stability. Over time, bushings deteriorate and ball joints loosen, leading to uneven tire wear, steering play, or knocking noises.
Replace this full set when:
• Front-end noises appear over bumps or turns
• Vehicle drifts or alignment repeatedly goes out of spec
• Suspension bushings are cracked or separating
• Performing a geometry correction or full suspension refresh
Installing the OE Match 97034105123 Set with Genuine Porsche bolts and nuts ensures your Panamera’s suspension operates with factory-level precision, comfort, and safety.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97034105123
The product you are viewing cross references to these numbers
This OE Match Front upper control arm set includes both left and right arms and all required OEM hardware for correct installation. This kit directly replaces the factory upper wishbones used on Porsche Panamera (970.2, 2014–2016) models.
Fits:
Porsche 970.2 Panamera 2014 - 2016
Diagram ref no 13, 14, 15, 16.
Set Includes:
2 × OE Match Front Upper Control Arms (97034105123 Left & Right)
with Genuine Porsche Hardware:
2 × PAF102902 (Mounting Bolts),
2 × PAF102861 (Self-Locking Nuts)
Each arm is precision-machined from forged aluminium alloy for strength and reduced unsprung weight. They feature pre-installed rubber-metal bushings and sealed ball joints, tuned to match Porsche’s original damping and articulation characteristics.
Paired with Genuine Porsche PAF102902 bolts and PAF102861 self-locking nuts, this kit ensures secure fastening, accurate torque retention, and long-term suspension stability — exactly as Porsche intended.
Front upper control arms are critical for maintaining suspension alignment and cornering stability. Over time, bushings deteriorate and ball joints loosen, leading to uneven tire wear, steering play, or knocking noises.
Replace this full set when:
• Front-end noises appear over bumps or turns
• Vehicle drifts or alignment repeatedly goes out of spec
• Suspension bushings are cracked or separating
• Performing a geometry correction or full suspension refresh
Installing the OE Match 97034105123 Set with Genuine Porsche bolts and nuts ensures your Panamera’s suspension operates with factory-level precision, comfort, and safety.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97034105123
97034105122
97034105123
The product you are viewing cross references to these numbers
About kit
This kit is comprised of the following items:
2 x Wishbone Front UPPER. Porsche 970.2 Panamera 2014-2016 (97034105123/2
2 x Upper control arm mount bolt. Porsche 970 Panamera 2010-16 (PAF102902
2 x Upper control arm nut (M 10). Porsche Panamera / Cayenne / Taycan (PAF102861
Price: €245.46
Arriving soon
Related products
Vehicle Group
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
Information
Wishbone front bush that fits in the rear Porsche 944 1986-91
2pcs required for each wishbone
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95134104101
The product you are viewing cross references to these numbers
2pcs required for each wishbone
Fits:
Porsche 944 1986-91

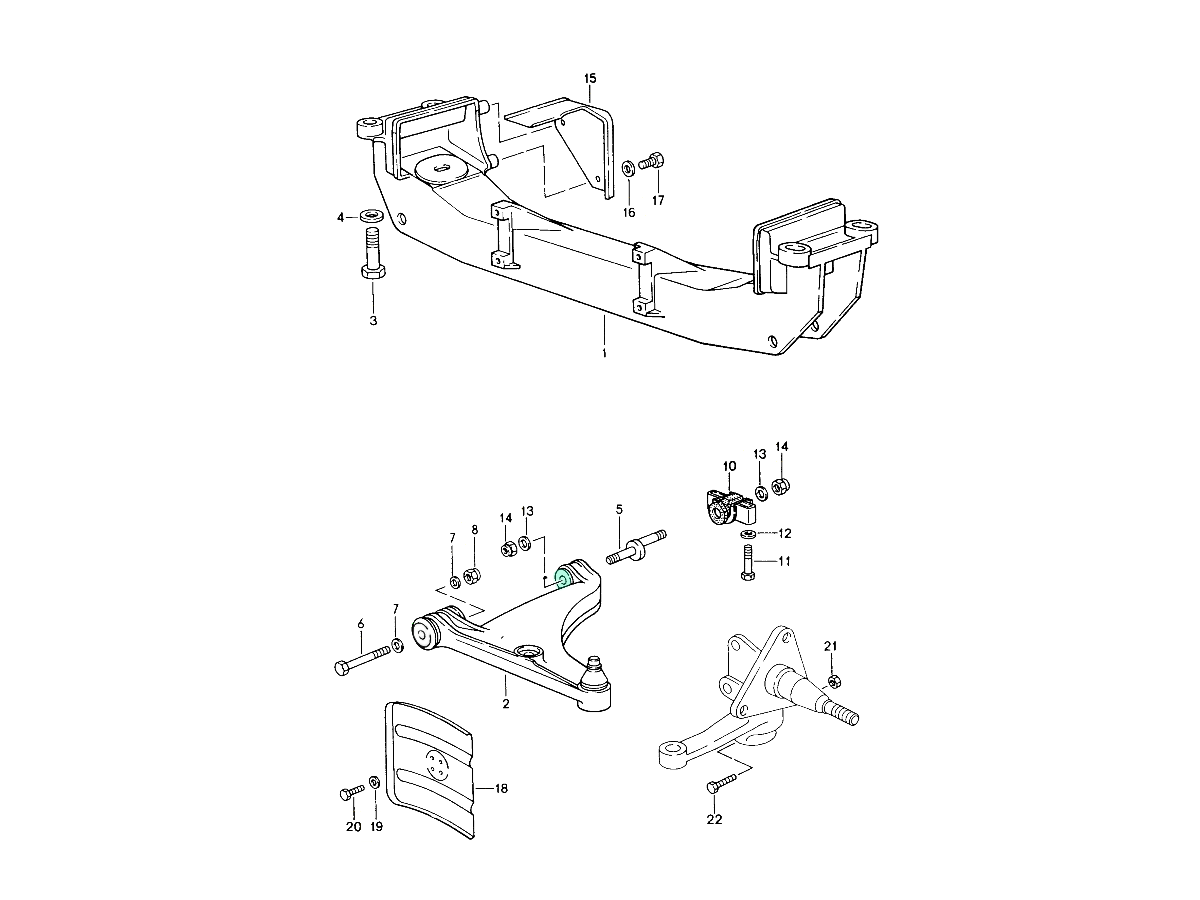

Part highlighted in green on diagram.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95134104101
95134104101
The product you are viewing cross references to these numbers
Price: €22.62
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Vehicle Group
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
Information
Since the 1985 ½ model year, 944s have used aluminium control arms which use ball joints that can not be replaced, as least not by the home mechanic. Early 944s are equipped with steel control arms which use replaceable ball joints.
The big question that most owners have about control arm ball joints is "how do I know when my ball joints need replacing?" Most often you'll hear it said that if the boot is torn or cracked, the control arm needs to be replaced. While this isn't a great indicator, it should raise suspicion as to the condition of the ball joint. Other indicators are knocking sounds in the front suspension or noticeable play in the control arm. The play can be checked by pushing up on the control arm (toward the spindle) near the ball joint. Noticeable play between the control arm and the ball joint indicates that the control arm needs to be replaced.
Fits:
Porsche 944 1985-91
Porsche 968 1992-95
For more information about this product CLICK HERE
Fitting Instructions CLICK HERE
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95134100000
The product you are viewing cross references to these numbers
The big question that most owners have about control arm ball joints is "how do I know when my ball joints need replacing?" Most often you'll hear it said that if the boot is torn or cracked, the control arm needs to be replaced. While this isn't a great indicator, it should raise suspicion as to the condition of the ball joint. Other indicators are knocking sounds in the front suspension or noticeable play in the control arm. The play can be checked by pushing up on the control arm (toward the spindle) near the ball joint. Noticeable play between the control arm and the ball joint indicates that the control arm needs to be replaced.
Fits:
Porsche 944 1985-91
Porsche 968 1992-95
For more information about this product CLICK HERE
Fitting Instructions CLICK HERE
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95134100000
95134100000
The product you are viewing cross references to these numbers
Price: €57.98
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Vehicle Group
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
Information
Wishbone Front Rubber Mounting. SET OF 2
Item is produced from series 6082 alumium with a maintenance free teflon/chrome spherical bearing. Bearing is highest quality motorsport series.
Replacement for 95134102301, 95134102300, 95134102330,
Fits:
Porsche 944 / S / S2 / Turbo 1985-91
Porsche 968 1992-95
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3602409441
The product you are viewing cross references to these numbers
Item is produced from series 6082 alumium with a maintenance free teflon/chrome spherical bearing. Bearing is highest quality motorsport series.
Replacement for 95134102301, 95134102300, 95134102330,
Fits:
Porsche 944 / S / S2 / Turbo 1985-91
Porsche 968 1992-95
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3602409441
95134102301
95134102300
9P-CB44
95134102330
9PCB44
2211700
95134102300
95134102301
95134102330
The product you are viewing cross references to these numbers
Price: €174.00
