Adapt Motorsport
Adapt Motorsport for Porsche
Adapt Motorsport is a growing family business developing bespoke products for Porsche, classic, modern performance and race cars. We are constantly designing, prototyping and testing new products.
A Quick Look at Adapt Motorsport
Adapt Motorsport information on this page is based on details supplied by the manufacturer or distributor, plus any OE references provided with the parts
Choosing the Right Fit for Your Porsche
Where Adapt Motorsport is listed for Porsche, use the supplied model coverage and OE references to confirm suitability. Check details that commonly affect fitment such as model year, side/position, and connector type where relevant.
- Typical reasons people choose these parts include functional upgrades to handling, drivetrain response, or track-oriented performance, usually combined with appropriate tyres, brakes, and alignment work.
- Common real-world symptoms that trigger replacement are performance fade, vague steering feel, brake heat issues, driveline movement, and general suspension fatigue or imbalance.
- Plan suspension and handling changes with an alignment in mind, and consider upgrading in stages so you can feel and measure what each change contributes.
- After any electrical or control-unit-related work, confirm basic checks such as battery health, good earth points, and that any new parts are correctly calibrated where required.
Browse by Category
If you already know the area you are working on, start with the category and then filter by Porsche model. Where real-world symptoms and typical reasons to replace are provided, use them to keep the wording grounded.
Electrical & Relays — These parts are usually replaced when an electrical function on your Porsche becomes unreliable, a safety-critical circuit stops working, or a repeated “no-start / no-power” issue is traced to switching or protection hardware. Real-world faults often involve heat, vibration, or marginal contacts, so a component may look fine but still fail under load.
- Start diagnosis with simple checks: correct fuse rating, relay seating, connector condition, and earth points before condemning major components.
- If a relay clicks but the circuit still does not work, treat it as suspect and confirm current flow and terminal condition.
Relays / Fuses — Relays and fuses are replaced when circuits fail outright or work intermittently, or when repeated fuse blowing and heat marks point to overload, shorts, or worn relay contacts. Owners often choose higher quality parts for critical circuits to reduce the risk of repeat electrical problems.
- Never uprate a fuse simply to stop it blowing; always find and fix the root cause to avoid wiring damage or fire risk.
- A quick practical check is to swap a suspect relay with an identical known-good unit and inspect the fuse/relay box for corrosion or heat damage.
Engine Electrical — Engine electrical components are typically changed when starting, charging, ignition, or sensor-related faults affect drivability and reliability. Symptoms include intermittent no-start, misfires, rough running, poor charging, warning lights, and heat-related failures that come and go.
- Use fault codes as a guide only; confirm issues with proper testing of power, grounds, and signal quality before replacing parts.
- Always check battery condition, main earth straps, and connector corrosion, as many “sensor faults” are caused by supply or grounding issues.
Engine Rebuild Parts — Engine rebuild parts are renewed during planned overhauls or when evidence points to wear inside the engine, such as low or uneven compression, heavy oil consumption, persistent internal leaks, abnormal noises, or contamination found in the oil system.
- Before committing to a rebuild, use tests such as compression, leak-down, borescope inspection, and oil/filter analysis to confirm internal wear or damage.
- When the engine is apart, it is common to replace chains, guides, tensioners, bearings (where applicable), seals, gaskets, and hard-to-access hardware to avoid repeat strip-downs later.
Explore Adapt Motorsport at Design911
View the current Adapt Motorsport range for Porsche at Design911, then filter by model and category to narrow down to the right parts.
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Adapt Motorsport Sync 2 ignition ref/sync sensor and V-rib conversion kit for Porsche 911 Carrera 3.2 models from 1984–89. It combines engine-position sensing with a multi-rib pulley drive for compatible 3.2 engine cases and consoles.
Fits
- Porsche 911 Carrera 3.2 1984–86
- Porsche 911 Carrera 3.2 G50 1987–89
Check fitment for your specific vehicle (model, year, engine) before ordering.
What This Product Does
The kit supplies a compatible engine control unit with crank speed, crank angle and engine-cycle reference signals. A Hall-effect sensor reads the crank pulley trigger, including its missing-tooth reference, while the distributor-location sensor identifies the engine cycle. Together, these signals allow the ECU to determine whether the engine is on its compression or exhaust stroke for sequential fuel and ignition control.
Functions
- Measures crankshaft speed and angular position
- Provides a missing-tooth reference from the 36-1 trigger disc
- Produces an engine-cycle signal across each 720-degree cycle
- Enables the ECU to identify the compression stroke
- Supports sequential injection and electronically managed ignition
- Converts the fan drive to a V-rib belt arrangement
Technical Details
- Sync 2 module with two ZF digital Hall-effect sensors
- V-rib crank pulley and trigger disc for parallel-end crankshafts
- V-rib fan pulley, eccentric idler assembly and matching belt
- Recommended sensor voltage: 8V; supported operating range: 5–12V
- Anodised machined-aluminium housing with bronze bush and sealed roller bearing
- Supplied with wiring, terminals and connectors for loom integration
Installation Requirements
The sensor module mounts in the original distributor position and uses the factory distributor gear transferred from the existing unit. Installation involves connecting the sensors to a compatible ECU, setting the crank-sensor air gap and configuring the reference position in the ECU software.
As the module takes the place of the ignition distributor, the engine must use coil-on-plug ignition or an individual coil-and-lead arrangement controlled by the ECU. Professional installation and engine-management configuration are recommended.
Why Replacement Matters
A sequential EFI conversion requires dependable crankshaft and cycle-position data so the ECU can schedule individual ignition and injection events. This combined Adapt Motorsport package provides both signals while adding the crank pulley, fan pulley, idler and V-rib belt components required for the compatible 3.2 installation.
FAQs
- Does the kit include both crank and cycle-reference sensors?
Yes. The Sync 2 body contains two ZF Hall-effect sensors for crank and engine-cycle information. - Can the original distributor continue to control the ignition?
No. The module occupies the distributor mounting position, so ignition must be managed through a suitable ECU and individual coils. - Is this V-rib version suitable for a 2.7 or 3.0 engine console?
No. The manufacturer specifies that the V-rib arrangement requires a 3.2 engine casing and console. - Are electrical connectors supplied?
Yes. The package contains the wiring, connector housings and terminals needed for integration with the engine loom.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050053KIT.3
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Adapt Motorsport Sync 2 ignition reference and synchronisation sensor kit for Porsche 911 Carrera 3.2 models from 1984–89. This version includes a 127/133mm air-conditioning crankshaft pulley and 36-1 trigger disc for engines using the larger 3.2 AC pulley diameter.
Fits
- Porsche 911 Carrera 3.2 1984–86
- Porsche 911 Carrera 3.2 G50 1987–89
Visually confirm the crankshaft pulley and air-conditioning drive arrangement fitted to the engine. Check fitment for your specific vehicle (model, year, engine) before ordering.
What This Product Does
The kit provides a compatible engine control unit with crankshaft speed, crank position and engine-cycle synchronisation signals. One Hall-effect sensor monitors the teeth and missing-tooth reference of the 36-1 crank trigger, while the second reads a single tooth within the distributor-location module.
Because the module is driven at half engine speed, its reference sensor generates one pulse for every two crankshaft revolutions. The ECU can therefore distinguish between the compression and exhaust strokes, providing the position information required for sequential fuel injection and electronically controlled ignition.
Functions
- Measures crankshaft speed and angular position
- Supplies a missing-tooth crank reference from the 36-1 trigger disc
- Generates one engine-cycle synchronisation pulse every 720 degrees
- Allows a compatible ECU to identify the compression stroke
- Supports sequential fuel-injection and ignition strategies
- Fits in the original distributor mounting location
Technical Details
- Sync 2 body assembly with two ZF digital Hall-effect sensors
- 127/133mm AC crankshaft pulley and 36-1 trigger disc
- Pulley designed for parallel-end crankshafts
- Recommended sensor supply: 8V; supported range: 5–12V
- Machined aluminium housing with anodised finish, maintenance-free bronze bush and sealed roller bearing
- Wiring, terminals and connectors for integration with the engine wiring loom
Installation Requirements
The sensor body replaces the original distributor and reuses the factory distributor gear removed from the existing unit. Installation requires connection to a compatible ECU, adjustment of the sensor air gap at the crank trigger and configuration of the reference position within the ECU software.
As the distributor no longer routes the ignition spark, the engine must use coil-on-plug ignition or another individual coil-and-lead arrangement controlled by the ECU. The manufacturer states that this kit is not compatible with Porsche 964 or 993 3.6 engine cases, which require a separate sensor solution.
Why Replacement Matters
A sequential engine-management conversion requires reliable crankshaft and cycle-position information before the ECU can correctly schedule individual injection and ignition events. This kit combines both signals in one distributor-location assembly and includes the larger AC pulley required by 1984-onwards Carrera 3.2 installations.
FAQs
- Does the kit provide crank and synchronisation signals?
Yes. One sensor reads the 36-1 crank trigger, while the second generates an engine-cycle reference once every two crankshaft revolutions. - Can the original distributor ignition remain fitted?
No. The module occupies the distributor location, so ignition events must be controlled by a compatible ECU using coil-on-plug or another per-cylinder coil arrangement. - Is this the correct AC pulley for an early 2.7 or 3.0 engine?
No. This 127/133mm version is intended for 1984-onwards 3.2 engines with the larger air-conditioning pulley diameter. - Does the kit include wiring connectors?
Yes. Wiring, terminals and connectors for connection to the engine wiring loom are included.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050053KIT.2
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
Adapt Motorsport Sync 2 ignition reference and synchronisation sensor kit for early Porsche 911 2.7 and 3.0 engines equipped with a piston-style air-conditioning compressor. It combines a dual-sensor module with a 127/90mm crankshaft pulley and 36-1 trigger disc.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
Visually confirm the crankshaft pulley and air-conditioning compressor arrangement fitted to the engine. Check fitment for your specific vehicle, model, year and engine before ordering.
What This Product Does
The crank sensor monitors the teeth of the 36-1 trigger disc, enabling a compatible ECU to determine crankshaft speed and position from the pulse sequence and missing-tooth reference. The second Hall-effect sensor is housed in the distributor-location module and reads a single reference tooth at half engine speed.
This reference signal occurs once during each complete four-stroke cycle, allowing the ECU to identify whether the engine is on its compression or exhaust stroke. Combining both signals supplies the position data required for sequential fuel injection and ECU-managed ignition.
Functions
- Measures crankshaft position and rotational speed
- Provides one engine-cycle synchronisation pulse per 720 degrees
- Enables sequential injection and ignition strategies with a suitable ECU
- Installs in the original distributor mounting position
- Provides digital Hall-effect sensor outputs
Technical Details
- Sync 2 module with two ZF digital Hall-effect sensors
- 127/90mm air-conditioning crankshaft pulley for parallel-end crankshafts
- 36-1 crank trigger disc
- Recommended sensor supply voltage: 8V
- Supported sensor operating supply: 5–12V
- Machined aluminium housing with an anodised finish, maintenance-free bronze bush and sealed roller bearing
Kit Contents
- Main dual-sensor body assembly
- Two ZF Hall-effect sensors
- 127/90mm crankshaft pulley and trigger disc
- Wiring, terminals and connectors for connection to the engine wiring loom
Installation Requirements
The assembly occupies the original distributor location and uses the factory distributor gear removed from the existing unit. Installation involves connecting the sensors to a compatible engine control unit, setting the correct sensor gap at the crank trigger and configuring the reference position in the ECU software.
As the original distributor is removed, the engine requires coil-on-plug ignition or another per-cylinder coil and ignition-lead arrangement in which the ECU controls each ignition event.
Why Replacement Matters
Sequential engine management needs reliable information for engine speed, crank position and the current four-stroke cycle. This kit supplies both crank and cycle-reference signals without using the original distributor to route the ignition spark, supporting conversion to compatible electronic fuel-injection and ignition control.
Important Installation Notes
- The 127/90mm pulley is intended for early piston-style air-conditioning compressor installations and is not the correct version for 1984 onwards 3.2 engines.
- On magnesium 2.7 engine cases, a small boss near the crank pulley must be trimmed or die-ground to provide clearance for the trigger disc.
- The system does not fit Porsche 964 or 993 3.6 engine cases; these require the separate 964/993 sensor solution.
- Confirm ECU compatibility, sensor supply voltage, distributor gear suitability and available pulley clearance before installation.
FAQs
- Does the kit generate both crank and cycle-reference signals?
Yes. One sensor reads the 36-1 crank trigger, while the second provides a synchronisation pulse once every two crankshaft revolutions. - Can the standard distributor ignition system remain in use?
No. The sensor module installs in the distributor position, so ignition must be controlled by the ECU using coil-on-plug or another individually controlled per-cylinder arrangement. - Is this pulley suitable for a 1984 onwards Carrera 3.2?
No. Later 3.2 installations use a larger air-conditioning pulley diameter and require the 127/133mm version. - Does installation on a 2.7 magnesium case require modification?
Yes. Adapt Motorsport specifies that a small crankcase boss must be reduced to create trigger-disc clearance.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050053KIT.1
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Ignition ref/sync sensor kit by Adapt Motorsport for classic Porsche engines. This Sync 2 version combines two Hall effect sensors with a 127mm crank pulley and 36-1 trigger disc for sequential fuel injection and ignition control.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Check fitment for your specific vehicle, engine casing, distributor gear and engine-management system before ordering.
What This Product Does
The crank-mounted sensor reads the teeth and missing-tooth reference on the 36-1 trigger disc, allowing the ECU to calculate crankshaft position and engine speed. A second sensor within the distributor-location module generates one reference pulse every 720 degrees, identifying the engine cycle so the ECU can distinguish between the compression and exhaust strokes.
Together, these signals provide the engine-position information required by a suitable aftermarket ECU to operate sequential fuel injection and ECU-controlled ignition.
Functions
- Measures crankshaft position and rotational speed.
- Provides a once-per-engine-cycle synchronisation signal.
- Supports sequential injection and ignition strategies.
- Replaces the original distributor body at its mounting location.
- Supplies digital Hall effect signals to a compatible ECU.
Technical Details
- Sync 2 dual-sensor body assembly.
- Two ZF digital Hall effect sensors.
- 127mm crank pulley for parallel-end crankshafts.
- 36-1 crank trigger disc.
- Recommended sensor supply: 8V; operating range stated by the manufacturer as 5–12V.
- Machined aluminium housing with anodised finish, maintenance-free bronze bush and sealed roller bearing.
Kit Contents
- Main two-sensor body assembly.
- Two ZF Hall effect sensors.
- 127mm crank pulley and 36-1 trigger disc.
- Wiring, terminals and connectors for integration with the vehicle wiring loom.
Installation Requirements
The module mounts in the original distributor location and reuses the factory distributor gear. Installation requires wiring to a compatible ECU, adjustment of the sensor air gap and configuration of the reference position within the ECU software.
Because this kit replaces the distributor, the engine must use coil-on-plug ignition or another arrangement with an individually controlled ignition lead for each cylinder. The ECU must control the ignition events.
Why Replacement Matters
A modern sequential engine-management system requires accurate crankshaft speed, crank position and engine-cycle information. This combined trigger and synchronisation arrangement supplies both signals without relying on the original distributor to distribute the ignition spark.
Important Notes
- This kit is not compatible with Porsche 964 or 993 3.6L engine cases; Adapt Motorsport offers a separate sensor solution for those engines.
- On 2.7L magnesium engine cases, a small boss near the crank pulley must be trimmed or die-ground to provide trigger-disc clearance.
- Confirm ECU compatibility, sensor supply voltage, distributor gear suitability and pulley clearance before installation.
FAQs
- Does the kit provide both crank and engine-cycle signals?
Yes. One sensor reads the 36-1 crank trigger while the internal reference sensor produces one pulse every two crankshaft revolutions. - Can the original distributor ignition arrangement be retained?
No. The module occupies the distributor location, so ECU-controlled coil-on-plug or an individual ignition lead and coil arrangement is required. - Does it fit Porsche 964 or 993 3.6L cases?
No. Those engine cases require the separate 964/993 sensor product. - Is modification required on a 2.7L engine?
The manufacturer states that magnesium 2.7L cases require a small crankcase boss to be trimmed for trigger-disc clearance.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050053KIT
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
The Adapt Motorsport Advanced Fuel Rail Kit combines fuel distribution, Bosch pressure regulation and pulse damping for Porsche 911 Carrera 3.2 applications. It is offered in single- and dual-regulator configurations for custom fuel-system installations.
Fits:
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
What This Product Does
Opening and closing fuel injectors generate pressure pulses within the fuel circuit. The integrated damper helps control these fluctuations, while the replaceable Bosch module regulates rail pressure. Combining these components within the rail reduces the need to mount separate regulator and damper units, simplifying the number of hoses and connections required.
Functions
- Distributes fuel between the engine injectors
- Controls rail pressure through a replaceable Bosch regulator module
- Helps suppress pressure pulses created by injector operation
- Reduces the number of external fittings and potential leakage points
- Allows the fuel-hose layout to be tailored to the installation
Technical Details
- Available for Carrera 3.2 manifolds
- Supplied with a 3.8-bar regulator.
- Single version pairs one regulator-and-damper rail with one conventional fuel rail
- Dual version uses two rails, each incorporating its own regulator and damper
- Rated regulator flow is 200 lph per module, giving a combined 400 lph with the dual arrangement
- ORB ports use O-ring seals; AN6 JIC unions and end plugs are included, with fasteners and manifold adapters supplied for the Carrera 3.2 option
Why Replacement Matters
This kit is intended for bespoke or upgraded fuel systems where integrated pressure management can make the installation more compact and easier to service. The Bosch modules can be removed independently, allowing a worn regulator to be renewed or the pressure specification to be changed without replacing the complete rail.
Installation Notes
- Bespoke fuel hoses must be made to suit the vehicle and selected configuration
- The dual-regulator layout requires additional hose routing compared with the single version
- Each regulator is limited to 200 lph; a Bosch 044 pump is stated at 275 lph and therefore exceeds the capacity of one regulator
- Pump output, injector requirements and regulator capacity must be considered together when specifying the complete system
FAQs
- Is the pressure regulator serviceable?
Yes. The rail accepts replaceable Bosch regulator modules, so the module can be renewed separately. - How do the two kit layouts differ?
The single arrangement includes one integrated rail and one standard rail. The dual arrangement employs two integrated rails for a combined regulator rating of 400 lph. - Will the original fuel hoses fit?
No. Custom hoses are necessary for installation. - Can a different operating pressure be selected?
Yes. The normal specification is 3.8 bar, with regulator options stated from 3.0 to 4.0 bar.
Check fitment for your specific vehicle, engine and planned fuel-system configuration before ordering.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050290-
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
The Adapt Motorsport GT3 manifold individual throttle body kit enables 996 GT3-style intake manifolds and a resonance flap system to be integrated with an existing ITB-equipped classic Porsche 911 engine. Configurations are available with a PA12 nylon or machined aluminium intake T-piece, with manifold inclusion determined by the selected option.
Fits:
Porsche 911
1974-1977 2.7L / 1976-77 3.0 Carrera
Porsche 911 1978-1983 3.0L / SC
Porsche 911 1984-1986 3.2L
Porsche 911 1987-1989 3.2L G50
Porsche 964 (911) C2 1989-93
Porsche 964 (911) C4 1989-93
Porsche 993 (911) C2 1994-95
Porsche 993 (911) C4 1994-95
Porsche 993 (911) C2S 1994-95
Porsche 993 (911) C4S 1994-95
What This Product Does
This system provides the hardware needed to connect an individual throttle body installation to large-volume GT3 intake manifolds. Its resonance flap assembly, intake T-piece, filter and vacuum-control components form an integrated intake arrangement for a custom classic 911 engine build.
Functions
- Connects compatible GT3 intake manifolds to an existing individual throttle body system
- Supports operation of the supplied intake resonance flap
- Provides filtered air through the included K&N air filter
- Supplies the vacuum hardware, hoses and fittings required for flap control
- Allows a choice of PA12 nylon or machined aluminium intake T-piece
Technical Details
- GT3 manifold port diameter: 49mm
- Reference comparison stated by the manufacturer: standard 964 manifold 43mm and 3.2 manifold 39mm
- Base nylon T-piece manufactured from automotive-grade PA12
- CNC-machined resonance flap assembly uses sealed roller bearings
- AMS machined components have a black anodised finish
- Custom adapter option comprises six machined aluminium adapters made to supplied ITB dimensions
Kit Contents and Options
The base kit contains the intake T-piece, K&N air filter, CNC-machined resonance flap assembly, four resonance-flap and throttle sleeves, six intake-adapter sleeves, hose clamps, vacuum canister, solenoid, check valve, connector kit, mounting hardware, vacuum hoses, fasteners and fittings.
Nylon T-piece configurations are offered with or without a pair of AMS GT3 intake manifolds. Aluminium T-piece configurations use a machined filter adapter matching the resonance flap assembly and are also offered with or without manifolds.
The ITB-to-GT3 adapter set adds six custom aluminium adapters. These require accurate measurements from the individual throttle body installation and are only supplied with the applicable base-kit options; the adapter set is not offered separately.
Why This Kit May Be Required
This kit is intended for engine builds where an existing ITB system is to be combined with GT3-style intake plenums and a controlled resonance flap. Correct measurements, mechanical installation and engine-specific calibration remain essential because throttle body dimensions and modified engine specifications can differ between applications.
FAQs
- Are intake manifolds included?
Manifold inclusion depends on the selected configuration. Options are available both with and without a pair of AMS GT3 intake manifolds. - What T-piece materials are offered?
The system can be configured with an automotive-grade PA12 nylon T-piece or a machined aluminium T-piece and filter adapter. - Are adapters supplied for the existing throttle bodies?
Six custom aluminium adapters can be specified, but accurate dimensions from the throttle body kit must be provided for their design and manufacture. - Can the custom adapter set be ordered separately?
No. The manufacturer specifies that the adapter set is only supplied with the applicable base-kit configurations. - Does installation require engine calibration?
Engine management and fuelling should be configured for the individual engine, throttle bodies and intake arrangement by a suitably experienced specialist.
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Adapt Motorsport E-Throttle drive-by-wire conversion kit for Porsche 964 and non-VarioRam 993 intake manifolds. It replaces the original Porsche throttle centre section with a Bosch 74mm electronic throttle, CNC-machined aluminium parts and combined Bosch T-MAP sensing.
Fits:
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-95
- Porsche 993 (911) C4 1994-95
- Porsche 993 (911) C2S 1994-95
- Porsche 993 (911) C4S 1994-95
What This Product Does
The conversion removes the original throttle centre section and the associated mechanical linkage or cable arrangement. A compatible aftermarket ECU can operate the electronic throttle, manage idle through the throttle body and support appropriately configured electronic control functions.
Functions
- Converts a compatible 964 or non-VarioRam 993 intake manifold to electronic throttle operation.
- Measures intake-air temperature and manifold pressure through one Bosch T-MAP sensor.
- Allows suitable aftermarket engine management to control engine idle through the throttle.
- Eliminates cable drag, stretch and resistance from multi-part mechanical throttle arrangements.
- Supports ECU-dependent features such as cruise control, automatic throttle blipping, traction control and boost control.
Technical Details

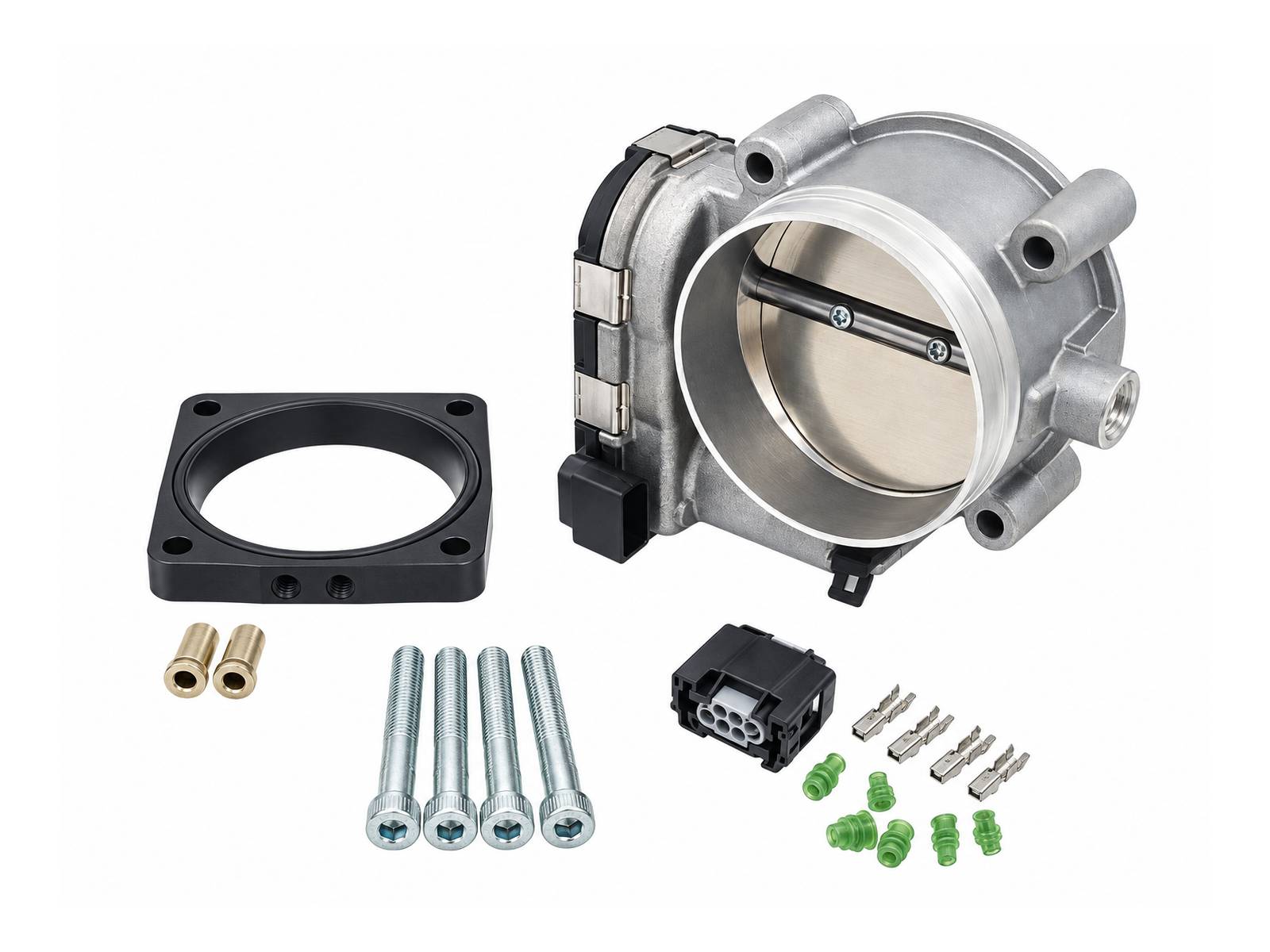

- Bosch 74mm electronic throttle supplied with connector kit.
- CNC-machined aluminium throttle intake adaptor.
- CNC-machined aluminium resonance tube with flap assembly, sealed roller bearings and vacuum actuator.
- Bosch 1.15 bar T-MAP sensor option for naturally aspirated engines.
- Bosch 3.0 bar T-MAP sensor option for turbocharged engines.
- Throttle and T-MAP fasteners plus vacuum hose are included with the centre-section kit.
Kit Configurations
- Centre-section kit: throttle adaptor, resonance-tube assembly, Bosch electronic throttle, selected T-MAP sensor, connector kits, fasteners and vacuum hose.

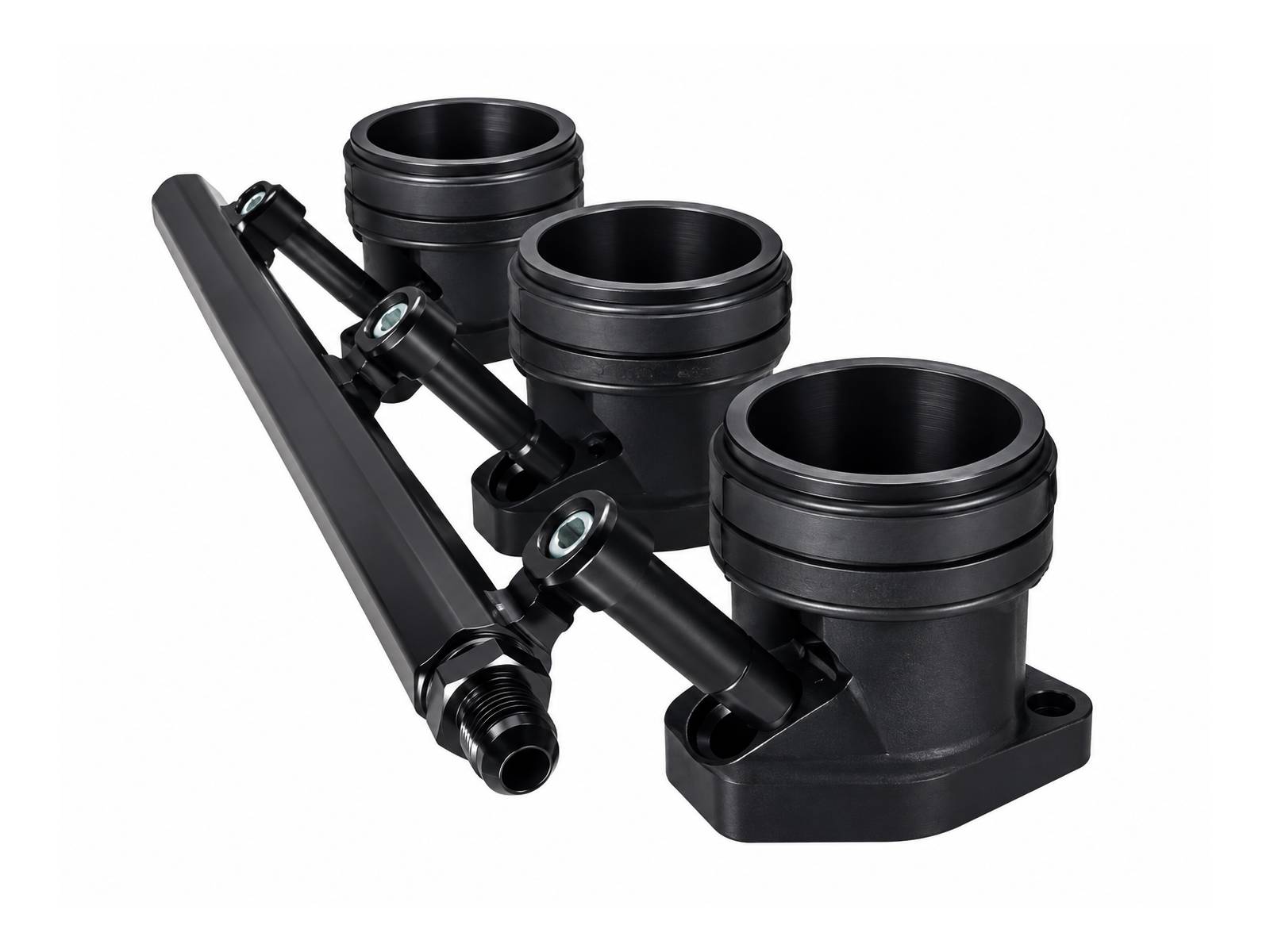

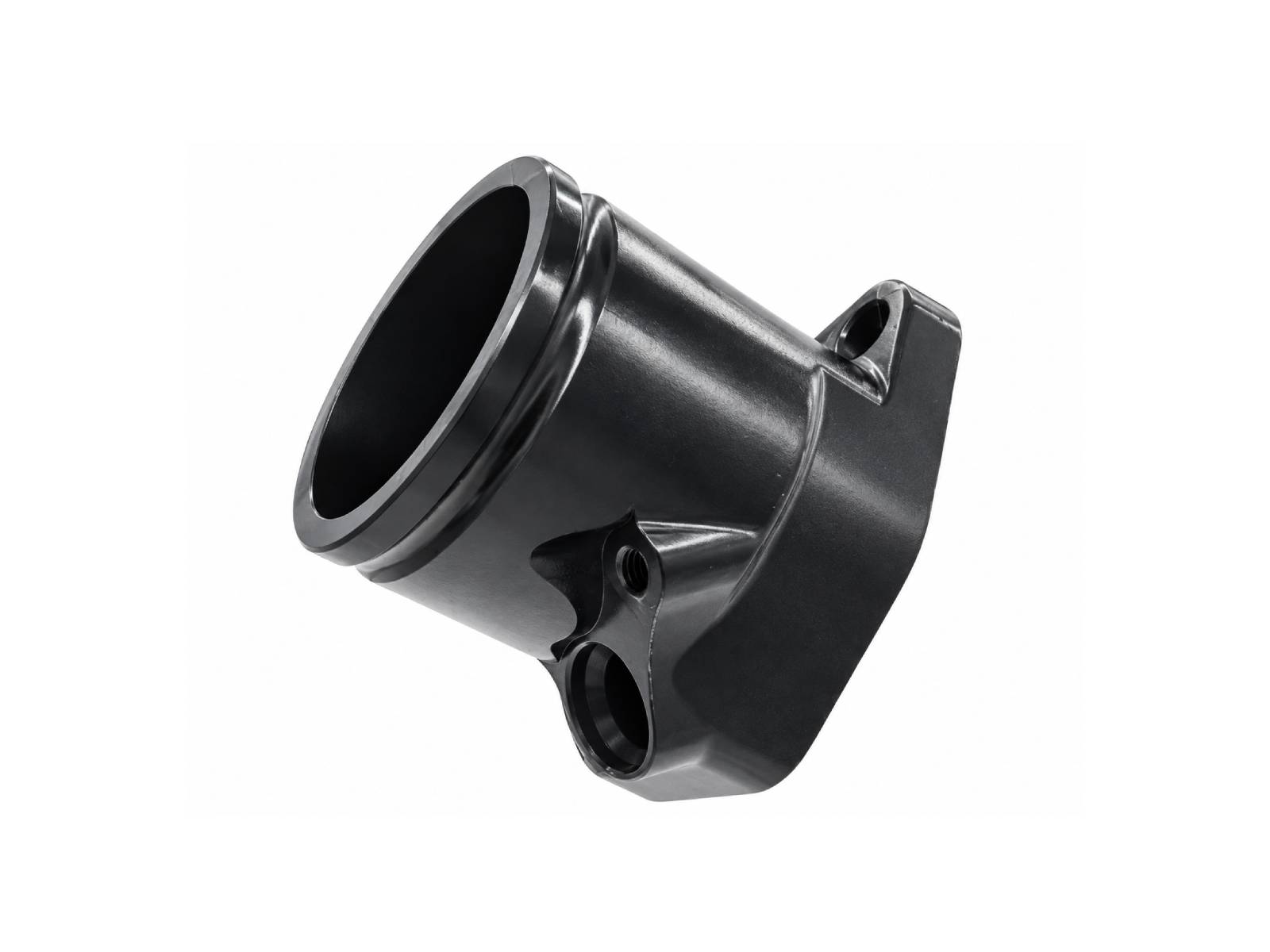

- Complete two-bolt kit: centre section, 34mm, 39mm, 40mm or 42mm two-bolt intake adaptors, 964 manifold adaptors and standard fuel rails.
- Complete three-bolt kit: centre section, 42mm or 43.5mm three-bolt intake adaptors, manifold adaptors and standard fuel rails.
Additional Parts Required
- Vacuum solenoid and canister.
- Air filter and suitable adaptor.
- Rubber sleeves and hose clamps for the intake-manifold ports; applicable original Porsche components may be reused.
Optional Components
- 964/993 vacuum kit and mounting hardware.
- 964/993 electronic accelerator pedal kit.

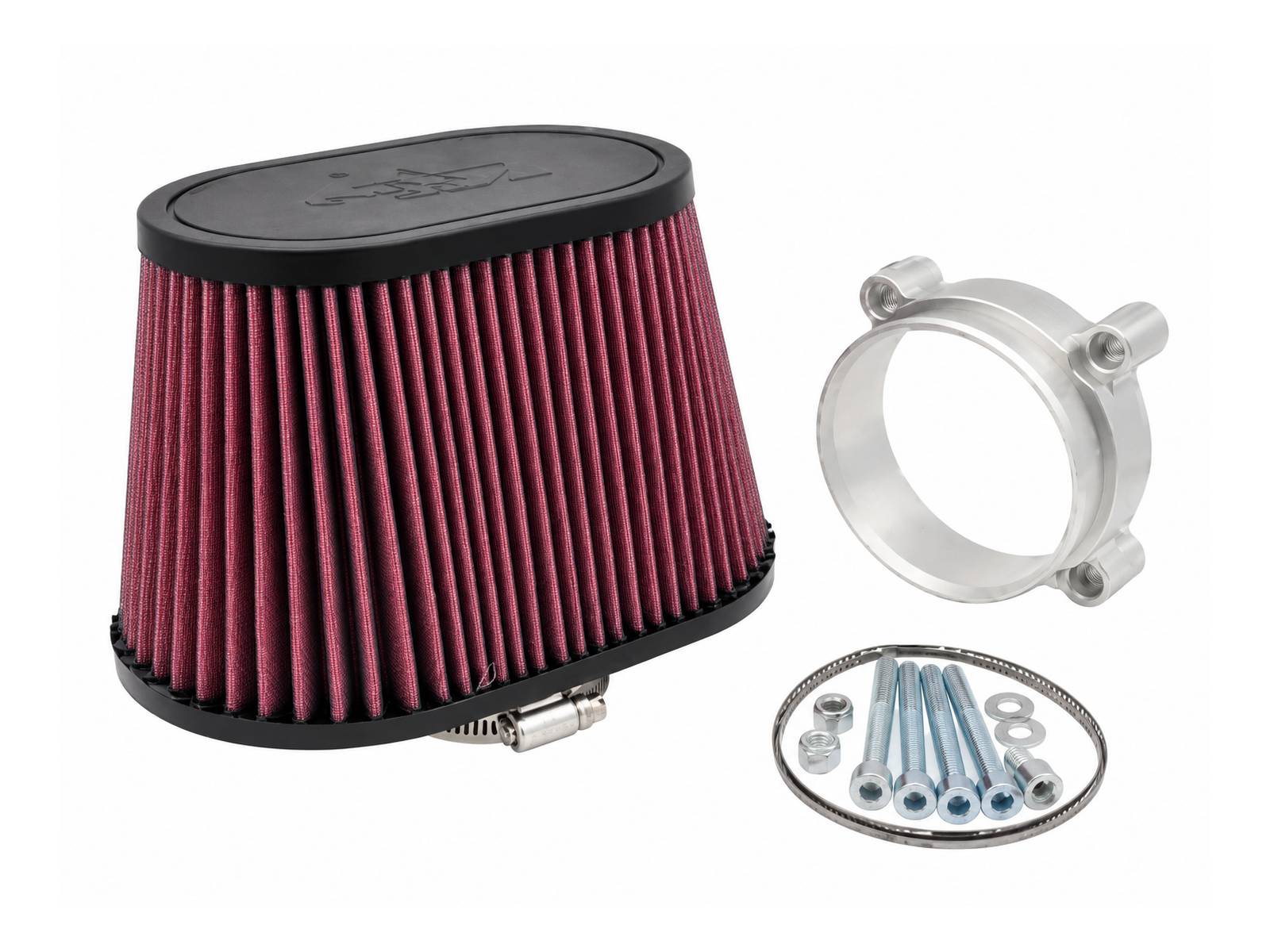

- 993 adaptor for retaining the factory rubber intake, airflow meter and airbox.
- 964 adaptor for retaining the factory rubber intake and airbox, including an airflow-meter delete kit.

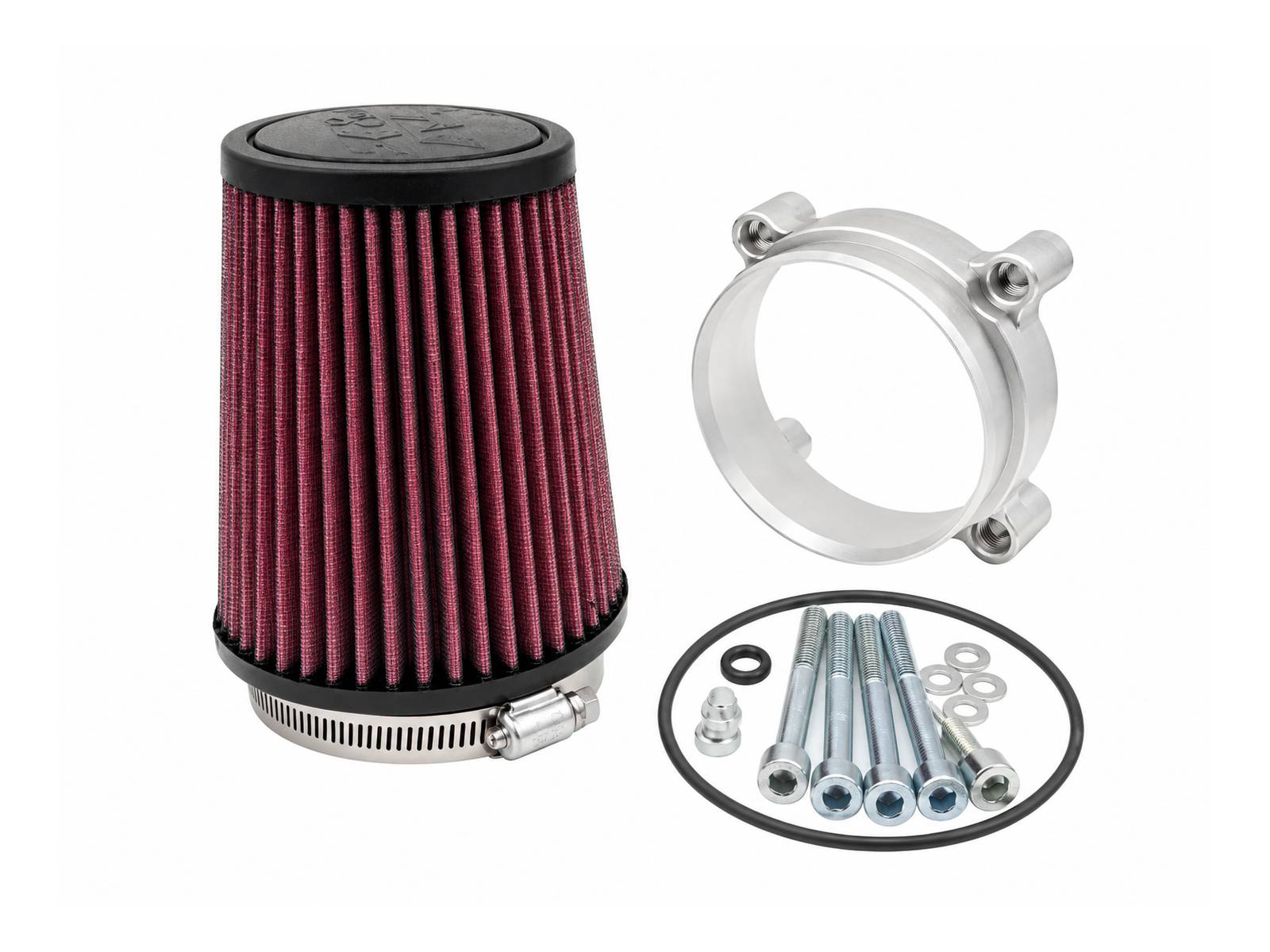

- 964/993 air-filter adaptor kit or advanced fuel rail kit.
Why Replacement Matters
This conversion provides a simplified electronic alternative to the original throttle mechanism and ageing idle-air bypass valve. Operation depends on compatible engine management, suitable wiring and calibration for the individual engine installation.
FAQs
- Does it fit a VarioRam 993 manifold?
No. The conversion is designed for Porsche 964 and non-VarioRam 993 intake manifolds. - Which T-MAP sensor is suitable?
The 1.15 bar option is intended for naturally aspirated engines, while the 3.0 bar version is offered for turbocharged applications. - Is the separate vacuum kit included?
No. The vacuum solenoid and canister kit are available separately. - Can the original airbox be retained?
Separate 964 and 993 adaptors are offered for installations using applicable factory intake and airbox components. - Is a cable-operated version available?
Adapt Motorsport also offers solutions for manual, cable-actuated throttle installations.
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Adapt Motorsport E-Throttle drive-by-wire conversion kit for Porsche 964 and non-VarioRam 993 intake manifolds. It combines a Bosch 74mm electronic throttle, CNC-machined aluminium components and Bosch T-MAP sensing, with complete configurations adding intake adaptors and standard fuel rails.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
What This Product Does
The conversion replaces the original Porsche throttle centre section fitted to 964 and non-VarioRam 993 intake manifolds. A compatible aftermarket ECU can manage throttle operation electronically and may also use the E-Throttle for idle control, removing the need for the ageing factory idle-air bypass valve.
Functions
- Converts the intake system from mechanical or cable-operated control to drive-by-wire operation.
- Measures intake-air temperature and manifold pressure through a combined Bosch T-MAP sensor.
- Allows compatible engine management to regulate idle through the electronic throttle.
- Removes cable drag, stretch and resistance associated with multi-part mechanical linkages.
- Supports ECU-dependent functions such as cruise control, automatic throttle blipping, traction control and boost control.
Technical Details
- Bosch 74mm electronic throttle with connector kit.
- CNC-machined aluminium throttle intake adaptor.
- CNC-machined aluminium resonance tube with flap assembly, sealed roller bearings and vacuum actuator.
- Bosch 1.15 bar T-MAP sensor option for naturally aspirated engines.
- Bosch 3.0 bar T-MAP sensor option for turbocharged applications.
- Complete two-bolt and three-bolt configurations are offered with standard fuel rails and intake adaptors.
Kit Configurations
- Centre-section kit: throttle adaptor, resonance tube assembly, Bosch electronic throttle, selected T-MAP sensor, connector kits, fasteners and vacuum hose.

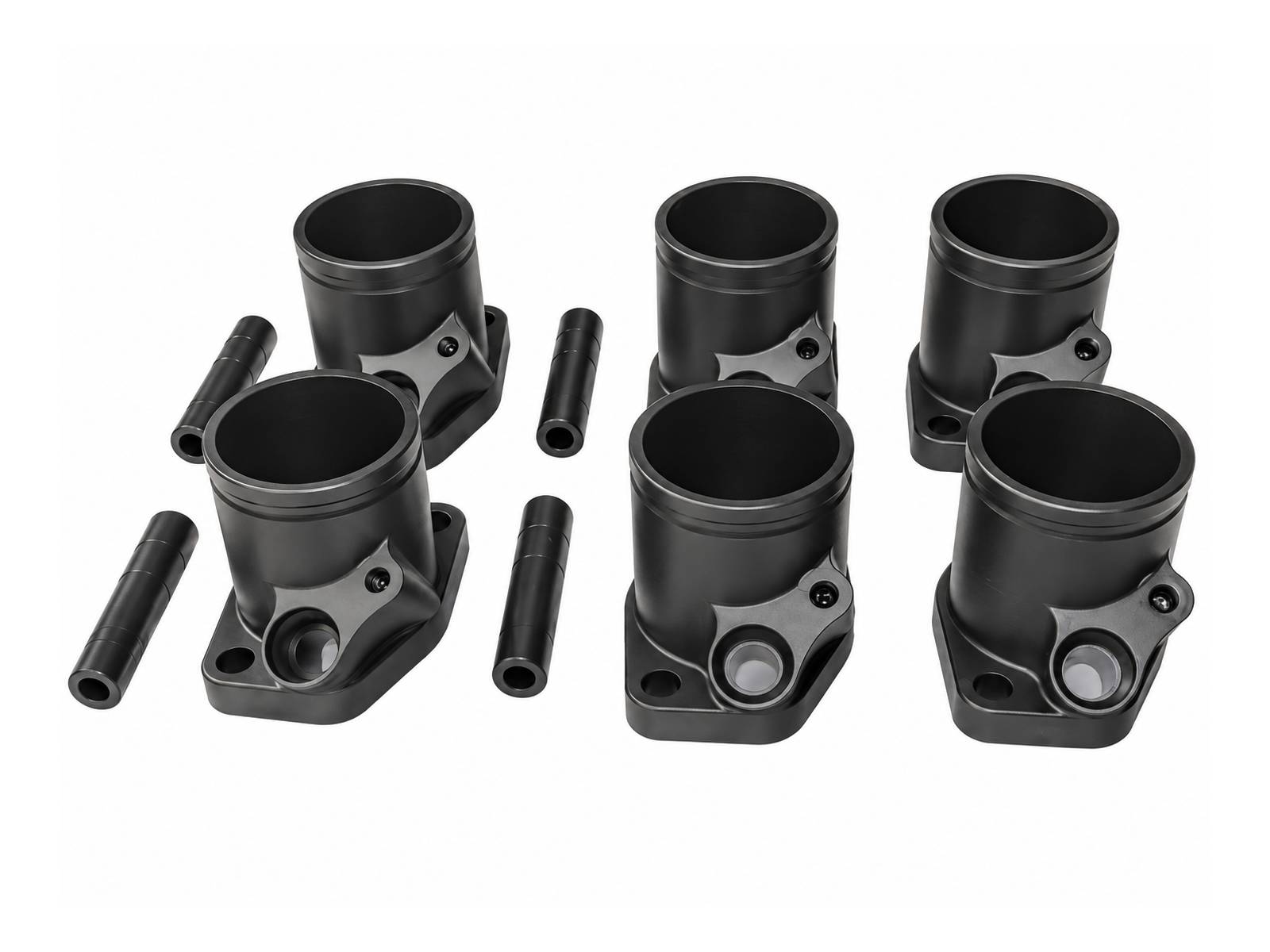

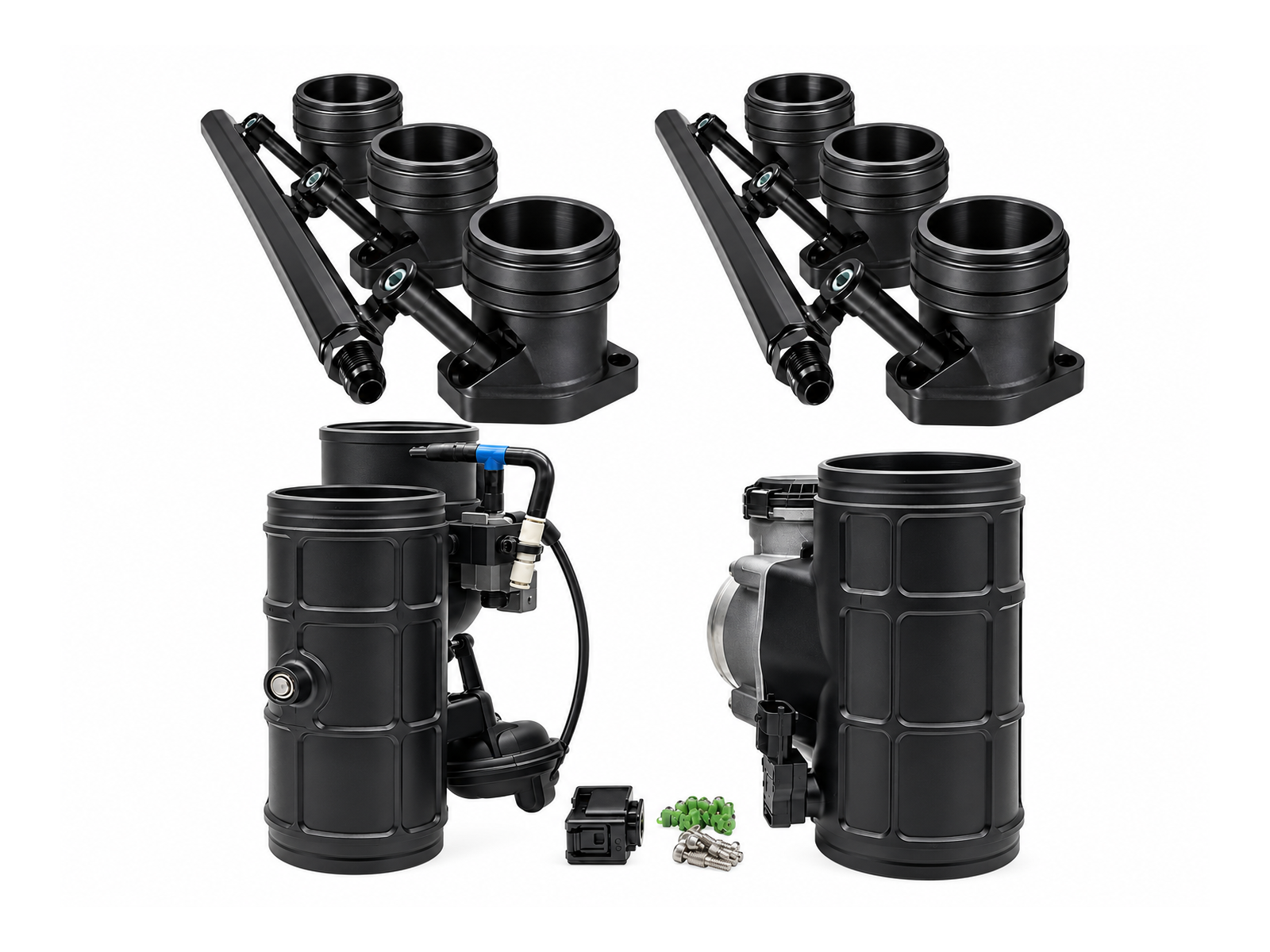

- Complete two-bolt kit: centre section, two-bolt intake adaptors in 34mm, 39mm, 40mm or 42mm sizes, 964 manifold adaptors and standard fuel rails.
- Complete three-bolt kit: centre section, three-bolt intake adaptors in 42mm or 43.5mm sizes, manifold adaptors and standard fuel rails.
Additional Parts Required
- Vacuum solenoid and canister.
- Air filter and suitable adaptor.
- Rubber sleeves and hose clamps for the intake-manifold ports; compatible original Porsche parts may be reused.
- Compatible electronic accelerator pedal, aftermarket ECU, wiring and engine-specific calibration.
Optional Components
- 964/993 vacuum kit and mounting hardware.
- 964/993 electronic accelerator pedal kit.
- 993 adaptor for retaining the factory rubber intake, airflow meter and airbox.
- 964 adaptor for the factory rubber intake and airbox, including an airflow-meter delete kit.
- 964/993 air-filter adaptor kit or advanced fuel rail kit.
Why Replacement Matters
Drive-by-wire conversion removes ageing cables and complex mechanical linkages from the throttle-control system while allowing a suitable ECU to manage throttle position and idle behaviour electronically. Correct wiring, programming and safety calibration are essential, so installation should be completed by an experienced technician familiar with aftermarket engine management.
FAQs
- Does this fit a VarioRam 993 manifold?
No. The conversion is specified for Porsche 964 and non-VarioRam 993 intake manifolds. - Which T-MAP sensor should be selected?
The 1.15 bar option is intended for naturally aspirated applications, while the 3.0 bar version is provided for turbocharged engines. - Is an aftermarket ECU required?
Yes. The electronic throttle requires compatible engine management, suitable wiring and correct calibration. - Is the vacuum kit included?
The centre-section configuration excludes the separate vacuum solenoid and canister kit. - Can the original airbox be retained?
Adapt Motorsport lists separate 964 and 993 adaptors for installations retaining applicable factory intake and airbox components.
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
This Adapt Motorsport E-Throttle conversion kit replaces the original throttle centre section fitted to Porsche 964 and non-VarioRam 993 intake manifolds. It combines a Bosch 74mm electronic throttle with a CNC-machined resonance tube assembly and Bosch T-MAP sensing.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-95
- Porsche 993 (911) C4 1994-95
- Porsche 993 (911) C2S 1994-95
- Porsche 993 (911) C4S 1994-95
What This Product Does
The kit converts the 964 / non-VarioRam 993 inlet manifolds from mechanical or cable-operated throttle control to electronic drive-by-wire operation. When used with a suitable aftermarket ECU and correctly calibrated, the throttle can also perform electronic idle-control functions without the factory idle-air bypass valve.
Functions
- Replaces the original Porsche throttle centre section.
- Provides electronically managed throttle control.
- Combines intake-air temperature and manifold-pressure measurement through a Bosch T-MAP sensor.
- Removes ageing throttle cables or mechanical linkages from the control system.
- Supports ECU-managed idle control when correctly configured.
- Allows compatible engine management to support features such as cruise control, automatic throttle blipping, traction control and boost control.
Technical Details
- Bosch 74mm electronic throttle with connector kit.
- CNC-machined aluminium throttle intake adapter.
- CNC-machined aluminium resonance tube assembly with flap, sealed roller bearings and vacuum actuator.
- Choice of 1.15 bar T-MAP sensor for naturally aspirated applications or 3.0 bar sensor for turbo applications.
- T-MAP connector kit, throttle and sensor fasteners, and vacuum hose included with the centre-section kit.
- The vacuum kit is not included with the centre-section configuration.
Kit Includes:
- CNC machined aluminium Throttle intake adapter
- CNC machined aluminium resonance tube assembly including flap assembly, sealed roller bearings and vacuum actuator
- Bosch 74mm Electronic Throttle and connector kit
- Bosch T-MAP sensor 1.1 bar or 3.0bar as standard options, with connector kit
- Fasteners for throttle and T-MAP.
-
Vacuum hose
Additional Parts Required
- Vacuum solenoid and canister.
- Air filter and suitable adapter.
- Rubber sleeves and hose clamps for the intake-manifold ports; compatible original Porsche components may be reused.
- A compatible electronic accelerator pedal, aftermarket ECU and appropriate wiring, programming and safety calibration.
Optional Components
- 964/993 vacuum kit and mounting hardware.
- 964/993 electronic accelerator pedal kit.
- 993 adapter for retaining the factory rubber intake, airflow meter and airbox.
- 964 adapter for the factory rubber intake and airbox, including an airflow-meter delete kit.
- 964/993 air-filter adapter kit or advanced fuel rail kit.
Why Replacement Matters
Converting to drive-by-wire removes cable drag, stretch and resistance from multi-part mechanical linkages. It also enables the fitted engine-management system to control throttle movement and idle behaviour electronically. Installation and calibration should be completed by an experienced technician using suitable ECU safety strategies.
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
This Adapt Motorsport drive-by-wire kit equips a classic Porsche 911 Carrera 3.2 intake manifold with a Bosch 74mm electronic throttle body. It replaces the standard 63mm mechanical arrangement and is supplied with a choice of small or large K&N air filter.
Fits
- 911 1974–1977 2.7L / 1976–77 3.0 Carrera
- 911 1978–1983 3.0L / SC
- 911 1984–1986 3.2L
- 911 1987–1989 3.2L G50
Installation requires a Carrera 3.2 intake manifold together with compatible electronic throttle control and engine management. Check fitment for your specific vehicle, model year, engine and conversion specification before ordering.
What This Product Does
The kit converts the Carrera 3.2 intake manifold from a mechanically operated throttle body to electronic drive-by-wire control. Its larger throttle diameter supports increased airflow, while a suitable ECU can manage throttle sensitivity, idle control and other electronic throttle functions.
Functions
- Provides electronic control of the engine throttle.
- Increases throttle-body diameter from 63mm to 74mm.
- Allows ECU-based throttle sensitivity calibration.
- Supports electronic idle control without separate bypass hoses or an idle-air valve.
- Removes the original throttle linkage, bellcrank and associated bushes.
- Provides vacuum connections for a fuel-pressure regulator and compatible accessories.
Technical Details
- Bosch 74mm electronic throttle body.
- Tapered adapter plate matched to the original Carrera 3.2 manifold port.
- O-ring sealing on both sides of the adapter plate.
- Precision-machined, bead-blasted and clear-anodised air-filter adapter.
- Includes fasteners, electrical connector kit, vacuum fittings, vacuum hose and filter-adapter hardware.
- Supplied with either a small or large K&N air filter; Adapt Motorsport recommends the small filter for street engines below 3.6 litres.
Why Replacement Matters
This conversion removes mechanical linkage drag and simplifies the intake installation while enabling programmable throttle behaviour through a compatible ECU. Depending on the selected engine-management system and calibration, electronic throttle control may also support functions such as torque management, traction control and cruise control.
Installation Notes
The throttle body must be installed and calibrated by an experienced person. Appropriate ECU safety strategies must be configured, and the conversion will require a compatible electronic accelerator pedal and engine-management system. Additional intake pipework may be fabricated if the air filter is to be positioned away from the throttle body.
Kit Contents
- Bosch 74mm throttle body.
- Tapered adapter plate with O-rings and vacuum fittings.
- Air-filter adapter with O-ring and fasteners.
- Small or large K&N air filter, according to the selected kit.
- Electrical connector kit, vacuum hose and installation fasteners.
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Adapt Motorsport resonance flap vacuum actuator kit for air-cooled Porsche 911 engines using 964, 993 or 996 GT3 intake manifolds. It provides the vacuum control components in a compact assembly supported by an automotive-grade nylon bracket.
Fits:
- 911 1974–1977 2.7L / 1976–77 3.0 Carrera
- 911 1978–1983 3.0L / SC
- 911 1984–1986 3.2L
- 911 1987–1989 3.2L G50
- 911 1975–1977 3.0L Turbo (930)
- 911 1978–1989 3.3L Turbo (930)
- 964 (911) C2 1989–93
- 964 (911) C4 1989–93
- 993 (911) C2 1994–97
- 993 (911) C4 1994–97
- 993 (911) C2S 1994–97
- 993 (911) C4S 1994–97
What This Product Does
This kit supplies the vacuum equipment required to operate the intake manifold resonance flap on a classic air-cooled engine conversion. Its components are arranged together on a nylon support bracket to simplify installation and vacuum-line routing.
Functions
- Provides vacuum actuation for the intake manifold resonance flap
- Maintains vacuum through the supplied reservoir and check valve
- Uses a solenoid actuator to control the vacuum circuit
- Connects the system through the supplied hose, T-piece and tubing
Technical Details
- Suitable for classic air-cooled engines using 964 or 993 intake manifolds
- Also designed for conversions using a 996 GT3 intake manifold
- Includes a vacuum canister, check valve and solenoid vacuum actuator
- Supplied with a solenoid connector kit, T-piece, vacuum hose and interconnecting tubing
- Automotive-grade nylon support bracket and installation fasteners included
- Mounts directly to the Adapt Motorsport 964 drive-by-wire throttle conversion kit; installation with the GT3 kit requires a separate bracket made by the installer
Check fitment for your specific vehicle, engine, intake manifold and throttle conversion before ordering.
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
The Adapt Motorsport 996 GT3 intake manifold adapter kit connects a GT3 manifold to compatible air-cooled Porsche 964 and 993 engines. Its compact, CNC-machined aluminium adapters are tapered to match the selected cylinder-head port with the manifold’s 49mm bore and comes with fuel rails.
Fits:
- Porsche 964 (911) 1989–1994
- Porsche 964 (911) C2 1989–93
- Porsche 964 (911) C4 1989–93
- Porsche 993 (911) 1994–1998
- Porsche 993 (911) C2 1994–97
- Porsche 993 (911) C4 1994–97
- Porsche 993 (911) C2S 1994–97
- Porsche 993 (911) C4S 1994–97
What This Product Does
The kit provides the physical transition required to install 996 GT3 intake manifolds on compatible three-bolt air-cooled cylinder heads. Its short design limits the total height of the intake assembly, helping to reduce potential interference around the idle-air control components, intake boot and engine-bay insulation.
The injector is positioned over the original relief in the intake port. The adapters also provide mounting provisions for Adapt Motorsport fuel rails when the appropriate fuel-rail configuration is selected.
Functions
- Connects a 996 GT3 intake manifold to compatible Porsche 964 and 993 cylinder heads
- Transitions the selected intake-port diameter to the manifold’s 49mm bore
- Maintains a compact intake-system height
- Positions the injector above the original intake-port relief
- Supports Bosch fuel injectors with 14mm O-ring fittings
- Provides mounting points for compatible Adapt Motorsport fuel rails
Technical Details
- Precision CNC-machined from high-grade aluminium
- Black anodised finish
- Standard adapter height: 78mm
- Tall adapter height: 113mm, adding 35mm of runner length
- 42mm adapters are specified for standard 964 ports measuring approximately 41.5mm
- 44mm adapters are specified for standard 993 ports measuring approximately 43.5mm;
Injector Compatibility
The supplied fuel-rail spacer posts accommodate long-body Bosch EV1, EV6 and EV14 injectors. Markings on the posts allow them to be shortened for compatible medium- or short-length injectors. All injectors must use 14mm O-ring fittings.
Kit Contents
- Six CNC-machined aluminium intake adapters
- Four fuel-rail spacer posts
- Four bolts for standard full-length Bosch injectors
- Fuel rails and fittings when a fuel-rail kit configuration is selected
GT3 intake manifolds, rubber joiners, fuel injectors and hose clamps are not included. An advanced single fuel-rail option with an integrated pressure regulator and damper is available only with compatible adapter and fuel-rail kit configurations.
Power-Steering Compatibility
Versions identified as “No PS” are intended for installations without a hydraulic power-steering pump, including suitable G-model conversions or vehicles using electric power steering. No PS adapters will not fit a Porsche 964 or 993 while its hydraulic power-steering pump remains installed.
Why Correct Selection Matters
The adapter diameter should correspond with the measured cylinder-head port. Correct selection provides the intended transition into the head, while the appropriate height, injector arrangement and power-steering clearance allow the converted intake assembly to be installed as designed.
FAQs
- Which size is used with a standard 964 port? The manufacturer specifies the 42mm adapter for a standard 41.5mm 964 intake port.
- Which size is used with a standard 993 port? The 44mm adapter is specified for the standard 43.5mm 993 intake port.
- When should the 46mm option be considered? It is offered for applicable RS or non-standard enlarged ports. Measure the cylinder-head ports before selection.
- Can different injector lengths be installed? Yes. The marked posts may be shortened for compatible long, medium or short Bosch injectors.
- Are the GT3 manifolds included? No. Manifolds, rubber joiners, injectors and hose clamps must be obtained separately.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050094
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
This Adapt Motorsport kit adapts a 996 GT3 intake manifold to Porsche 964 and 993 engines with three-bolt cylinder heads. Its short, CNC-machined aluminium adapters preserve a compact intake height while supporting compatible fuel-rail and injector configurations.
Fits
- Porsche 964 (911) 1989–1994
- Porsche 964 (911) C2 1989–93
- Porsche 964 (911) C4 1989–93
- Porsche 993 (911) 1994–1998
- Porsche 993 (911) C2 1994–97
- Porsche 993 (911) C4 1994–97
- Porsche 993 (911) C2S 1994–97
- Porsche 993 (911) C4S 1994–97
What This Product Does
The adapters provide the interface required to install 996 GT3 intake manifolds on compatible air-cooled 3.6ltr engines. Their tapered internal form matches the selected cylinder-head port to the manifold's 49mm bore, while the compact design helps reduce interference around the idle-air control system, intake boot and engine-bay insulation.
Functions
- Connects 996 GT3 intake manifolds to three-bolt air-cooled cylinder heads
- Transitions the selected intake-port diameter to the manifold's 49mm bore
- Maintains a compact overall intake-system height
- Supports Adapt Motorsport fuel-rail installations
- Positions the injector above the original intake-port relief
- Accommodates long, medium and short Bosch injector formats
Technical Details
- Precision CNC-machined from high-grade aluminium with a black anodised finish
- Standard adapter height: 78mm
- Tall adapter option: 113mm, providing an additional 35mm of runner length
- 42mm adapters suit standard 964 ports, which measure approximately 41.5mm
- 44mm adapters suit standard 993 ports, which measure approximately 43.5mm; 46mm options suit applicable non-standard or RS ports
- Compatible with Bosch EV1, EV6 and EV14 fuel injectors using 14mm O-ring fittings
Kit Contents
- Six CNC-machined aluminium intake adapters
- Four fuel-rail spacer posts
- Four bolts for standard full-length Bosch injectors
The spacer posts are marked so they can be shortened for medium- or short-length injectors. Intake manifolds, rubber joiners, injectors and hose clamps are not included. Fuel-rail-equipped configurations and an advanced single fuel rail with an integrated pressure regulator and damper are optional versions of the kit.
Why Replacement Matters
Correct adapter dimensions are essential when combining the later GT3 manifold with air-cooled three-bolt cylinder heads. Matching the port size maintains a suitable transition into the cylinder head, while the specified adapter height and injector position help the converted intake assembly fit and operate as intended.
FAQs
- Which size suits a standard Porsche 964?
Select the 42mm adapter for a standard 41.5mm 964 intake port. - Which size suits a standard Porsche 993?
Select the 44mm adapter for a standard 43.5mm 993 intake port. - When is the 46mm version appropriate?
It is intended for applicable RS engines or cylinder heads with non-standard enlarged ports. Confirm the measured port diameter first. - Can different injector lengths be used?
Yes. The marked spacer posts can be shortened to suit long, medium or short Bosch injectors with 14mm O-ring fittings. - What is the difference between the standard and tall adapters?
The standard version is 78mm high. The tall version measures 113mm, adding 35mm to the intake runner length. - Are the No PS versions suitable for a standard 964 or 993?
No. They are for installations without a hydraulic power-steering pump, such as some G Model conversions or vehicles using electric power steering.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS905009
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Adapt Motorsport intake manifold adapter for Porsche 964 and engines with three-bolt cylinder heads. These aluminium adapters replace the original plastic intake stands and are offered with 42mm or 44mm ports to suit the applicable engine. Sold as a set of 6
Fits
- Porsche 964 (911) 1989–1994
- Porsche 964 (911) C2 1989–93
- Porsche 964 (911) C4 1989–93
- Porsche 993 (911) 1994–1998
- Porsche 993 (911) C2 1994–97
- Porsche 993 (911) C4 1994–97
- Porsche 993 (911) C2S 1994–97
- Porsche 993 (911) C4S 1994–97
Check fitment for your specific vehicle, including model, year, engine and intake-port diameter, before ordering.
What This Product Does
The adapters connect the original intake manifolds to the three-bolt cylinder heads, replacing factory plastic stands that have cracked or otherwise become damaged. Their design supports Adapt Motorsport fuel rails while locating each injector above the original relief in the intake port.
Functions
- Replaces the factory plastic intake manifold stands
- Connects the intake manifolds to three-bolt cylinder heads
- Provides an O-ring seal against the cylinder head
- Supports Adapt Motorsport fuel rails
- Positions the injectors over the original intake-port relief
- Accommodates long, medium or short Bosch-type injectors
Technical Details
- Port options: 42mm and 44mm
- 42mm specification suits standard Porsche 964 intake ports
- 44mm specification suits standard Porsche 993 VRAM and non-VRAM intake ports
- Precision CNC-machined from high-grade aluminium
- Black anodised finish with an O-ring cylinder-head seal
- Compatible with Bosch fuel injectors using 14mm O-ring fittings
Kit Contents
- Six CNC-machined aluminium intake adapters
- Four marked fuel-rail spacer posts
- Four bolts for standard full-length Bosch injectors
The spacer posts are marked so they can be shortened when medium- or short-length injectors are used. The intake manifolds, rubber joiners, injectors and hose clamps are not included.
Why Replacement Matters
Damaged factory plastic stands can compromise the connection and seal between the intake manifolds and cylinder heads. These aluminium adapters provide a replacement interface while also allowing the intake system to use Adapt Motorsport fuel rails and a choice of compatible Bosch injector lengths. Port size must be selected to match the engine and any existing cylinder-head modifications.
FAQs
- Which port size is required for a standard 964 engine? The manufacturer specifies the 41.5mm version for standard Porsche 964 intake ports.
- Which version suits a standard 993 engine? The 43.5mm option is specified for standard Porsche 993 engines with either VRAM or non-VRAM intake systems.
- Which injectors are compatible? The kit accepts Bosch injectors with 14mm O-ring fittings. Its marked posts can be adapted for long, medium or short injector bodies.
- Are the intake manifolds supplied? No. Manifolds, rubber joiners, injectors and hose clamps must be sourced separately.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS905015
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Adapt Motorsport intake manifold adapter and fuel rail kit for Porsche 964 and engines with three-bolt cylinder heads. These aluminium adapters replace the original plastic intake stands and are offered with 42mm or 44mm ports to suit the applicable engine. Sold as a set of 6
Fits
- Porsche 964 (911) 1989–1994
- Porsche 964 (911) C2 1989–93
- Porsche 964 (911) C4 1989–93
- Porsche 993 (911) C2 1994–97
- Porsche 993 (911) C4 1994–97
- Porsche 993 (911) C2S 1994–97
- Porsche 993 (911) C4S 1994–97
Check fitment for your specific vehicle, including model, year, engine and intake-port diameter, before ordering.
What This Product Does
The adapters connect the original intake manifolds to the three-bolt cylinder heads, replacing factory plastic stands that have cracked or otherwise become damaged. Their design supports Adapt Motorsport fuel rails while locating each injector above the original relief in the intake port.
Functions
- Replaces the factory plastic intake manifold stands
- Connects the intake manifolds to three-bolt cylinder heads
- Provides an O-ring seal against the cylinder head
- Supports Adapt Motorsport fuel rails
- Positions the injectors over the original intake-port relief
- Accommodates long, medium or short Bosch-type injectors
Technical Details
- Port options: 42mm and 44mm
- 42mm specification suits standard Porsche 964 intake ports
- 44mm specification suits standard Porsche 993 VRAM and non-VRAM intake ports
- Precision CNC-machined from high-grade aluminium
- Black anodised finish with an O-ring cylinder-head seal
- Compatible with Bosch fuel injectors using 14mm O-ring fittings
Kit Contents
- Six CNC-machined aluminium intake adapters
- Four marked fuel-rail spacer posts
- Four bolts for standard full-length Bosch injectors
- Adapt Motorsport fuel rail kit and fittings
The spacer posts are marked so they can be shortened when medium- or short-length injectors are used. The intake manifolds, rubber joiners, injectors and hose clamps are not included.
Why Replacement Matters
Damaged factory plastic stands can compromise the connection and seal between the intake manifolds and cylinder heads. These aluminium adapters provide a replacement interface while also allowing the intake system to use Adapt Motorsport fuel rails and a choice of compatible Bosch injector lengths. Port size must be selected to match the engine and any existing cylinder-head modifications.
FAQs
- Which port size is required for a standard 964 engine? The manufacturer specifies the 41.5mm version for standard Porsche 964 intake ports.
- Which version suits a standard 993 engine? The 43.5mm option is specified for standard Porsche 993 engines with either VRAM or non-VRAM intake systems.
- Which injectors are compatible? The kit accepts Bosch injectors with 14mm O-ring fittings. Its marked posts can be adapted for long, medium or short injector bodies.
- Are the intake manifolds supplied? No. Manifolds, rubber joiners, injectors and hose clamps must be sourced separately.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
AMS9050157
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
This Adapt Motorsport inlet manifold adapter kit with fuel rails enables Porsche engines with two-bolt cylinder heads to accept 996 GT3 intake manifolds during an EFI conversion. It is offered with 40mm or 42mm ports in an anodised black finish.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
What This Product Does
The six adapters provide the interface required between the earlier two-bolt cylinder heads and a 996 GT3 intake manifold. Each adapter is machined to the selected cylinder-head port diameter and tapers towards the manifold's 48mm bore.
The compact adapter height helps retain a low overall intake assembly, reducing potential interference between the idle-air control components, intake boot and engine-bay insulation. Injector positioning corresponds with the original CIS injector relief in the intake port, directing the fuel spray into the port when used with a compatible EFI installation.
Kit Contents
- Six CNC-machined aluminium manifold adapters
- Four fuel-rail spacer posts
- Four bolts for standard full-length Bosch injectors
- Twelve nuts and washers for the cylinder-head studs
- Two fuel rails
Functions
- Adapts two-bolt Porsche 911 cylinder heads to 996 GT3 intake manifolds
- Supports EFI conversion of compatible 2.7L, 3.0L and 3.2L engines
- Provides mounting provisions for Adapt Motorsport fuel rails
- Positions the injectors above the original CIS injector-port relief
- Accommodates Bosch-type injectors with 14mm O-ring fittings
- Maintains a compact intake assembly height
Technical Details
- Available port diameters: 40mm or 42mm
- Manifold-side bore: tapered to suit the 48mm 996 GT3 manifold bore
- Material: precision CNC-machined high-grade aluminium
- Finish: black anodised
- Injector compatibility: Bosch 14mm O-ring fuel injectors
- Marked fuel-rail spacers can be shortened for long, medium or short injector formats
Configurations are available as an adapter kit alone or with a fuel rail kit. For the adapter-only configuration, fuel rails are not supplied.
Parts Not Included
- 996 GT3 intake manifolds
- Rubber manifold joiners
- Fuel injectors
- Hose clamps
Why Replacement Matters
This kit is intended for planned EFI and intake-manifold conversions rather than replacement of a standard component. Correct port selection, injector sizing, fuel-system specification and engine-management calibration are required for a complete installation.
FAQs
- Does the kit fit both available port sizes?
Select either the 40mm or 42mm version to match the cylinder-head intake ports. - Are fuel injectors supplied?
No. The adapters accept Bosch 14mm O-ring injectors, but the injectors must be selected separately. - Is the 996 GT3 manifold included?
No. The intake manifolds, rubber joiners and associated hose clamps are not part of the adapter kit. - Can different injector lengths be used?
The marked fuel-rail spacers can be cut to accommodate long, medium or short injector formats as required by the installation.
